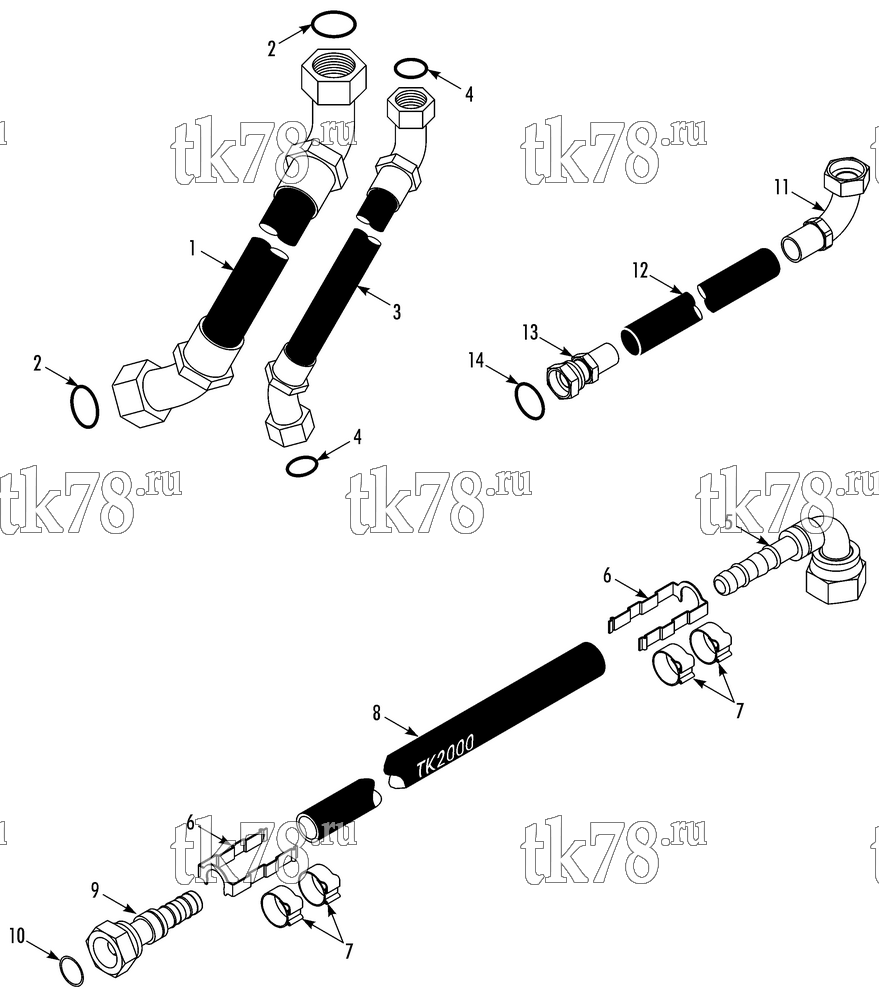

Установкa Thermo King D5-M5 схема COMPRESSOR HOSE KIT (701999) – 238F1
Обновление от: 6/1/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 61-3835 | HOSE - suction (#24) | 1 | |
| 2 | 33-1777 | GASKET - o-ring (1-3/16 id) | 4 | |
| 3 | 61-3836 | HOSE - discharge (#20) | 1 | |
| 4 | 33-2193 | GASKET - o-ring (11/16 id) | 4 | |
| 5 | 51-2433 | FITTING - hose (90 degree #12) | 1 | |
| 6 | 55-9414 | CAGE (#12) | 4 | |
| 7 | 55-9418 | CLIP - hose(#12) | 4 | |
| 8 | 61-643 | HOSE - refrigeration (#12) | 1 | |
| 9 | 51-1165 | FITTING - hose (straight #12) | 3 | |
| 10 | 33-1222 | O-RING (3/4 id) | 4 | |
| 11 | 51-1908 | FITTING - hose (90 degree #24) | 1 | |
| 12 | 61-4870 | HOSE - refrigeration (#24) | 1 | |
| 13 | 51-1933 | FITTING - hose (straight #24) | 1 | |
| 14 | 33-1777 | O-RING (1-3/16 id) | 3 | |
| 33-920 | O-RING (1-1/2 id) | 3 |
