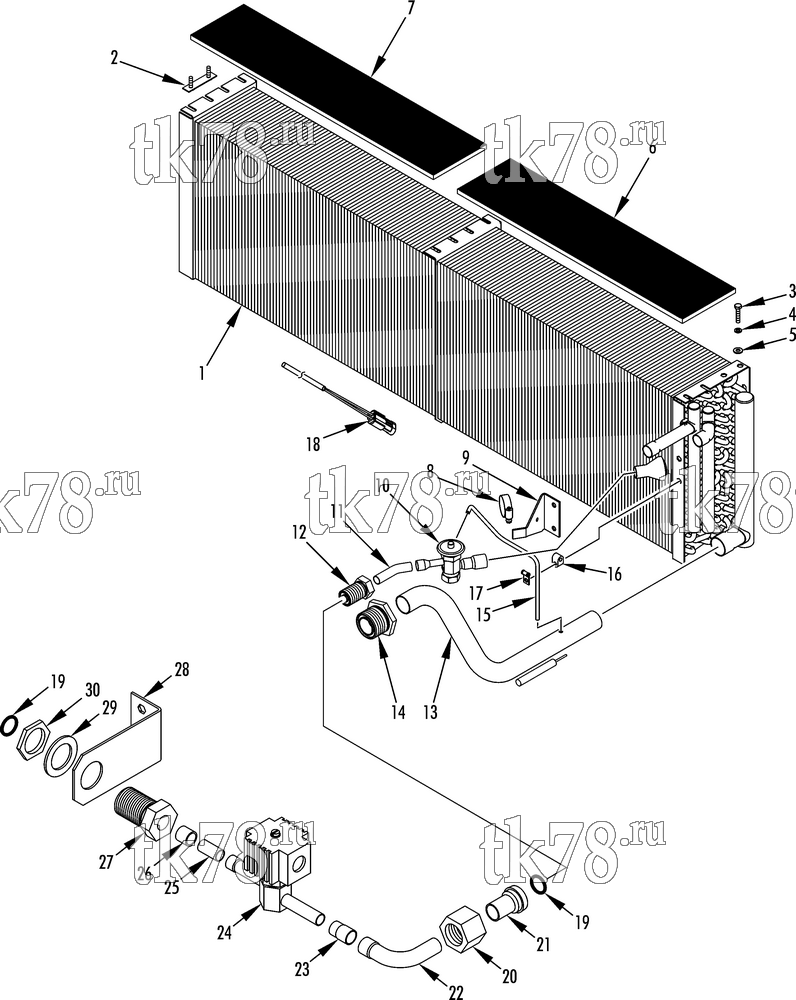

Установкa Thermo King D5-M5 схема EVAPORATOR REFRIGERATION COMPONENTS – 238E4
Обновление от: 8/6/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-2463 | COIL - evaporator w/heat | 1 | |
| 51-1932 | WASHER - spacer w/hex insert | 1 | ||
| 55-8979 | INSERT - spacer | 1 | ||
| 55-8711 | INSERT - coil | 18 | ||
| 2 | 92-4646 | PLATE - bolt | 8 | |
| 55-4414 | WASHER - spl (0.281 id) | 16 | ||
| 55-4953 | NUT - lock | 16 | ||
| 3 | 55-2957 | SCREW - coil | 6 | |
| 4 | 55-1800 | LOCKWASHER | 6 | |
| 5 | 55-4414 | WASHER - spl (0.281) | 6 | |
| 6 | 92-7940 | INSULATION - evap | 1 | |
| 7 | 92-7941 | INSULATION - evap | 1 | |
| 8 | 55-558 | CLAMP - bulb | 1 | |
| 9 | 92-7942 | BRACKET - distributor | 1 | |
| 55-2957 | SCREW - bracket | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 10 | 61-3766 | VALVE - expansion | 1 | |
| 11 | 61-4865 | TUBE - liquid | 1 | |
| 12 | 55-9699 | ADAPTER - bulkhead (#12) | 1 | |
| 13 | 61-3798 | TUBE - suction | 1 | |
| 14 | 55-6570 | ADAPTER - bulkhead (#24) | 1 | |
| 15 | 61-4866 | TUBE - equalizer | 1 | |
| 16 | 55-6544 | CLAMP - tube | 1 | |
| 17 | 55-5294 | CLAMP (0.187 dia) | 1 | |
| 55-2979 | SCREW - clamp | 1 | ||
| 55-1800 | LOCKWASHER | 1 | ||
| 55-2086 | FLATWASHER | 1 | ||
| 18 | 41-4157 | SENSOR - temperature | 1 | |
| 44-5835 | CONNECTOR - shroud (2 term) | 1 | ||
| 60-152 | INSULATION - tape (butyl cork) | A/R | ||
| 55-2330 | BANDWRAP | 3 | ||
| 19 | 33-2193 | O-RING (11/16 id) | 2 | |
| 20 | 55-7054 | NUT - shoulder | 1 | |
| 21 | 55-7052 | SLEEVE - adapter (#12) | 1 | |
| 22 | 61-4754 | TUBE - liquid line | 1 | |
| 23 | 55-2299 | BUSHING (5/8 ftg x 1/2 sld) | 1 | |
| 24 | 61-869 | VALVE - solenoid | 1 | |
| 44-5835 | CONNECTOR - shroud (2-pin) | 1 | ||
| 44-5836 | TERMINAL - male (14-16 ga) | 2 | ||
| 44-5837 | SEAL - cable (gray, 14-16 ga) | 2 | ||
| 25 | 66-7539 | TUBE | 1 | |
| 26 | 55-2182 | BUSHING (5/8 ftg x 1/2 sld) | 1 | |
| 27 | 55-9699 | ADAPTER - bulkhead | 1 | |
| 28 | 92-7768 | BRACKET - valve | 1 | |
| 55-8711 | INSERT | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2957 | SCREW | 2 | ||
| 29 | 55-7199 | LOCKWASHER (1.21 id) | 1 | |
| 30 | 55-6812 | NUT - bulkhead (1-3/16-12) | 1 |
