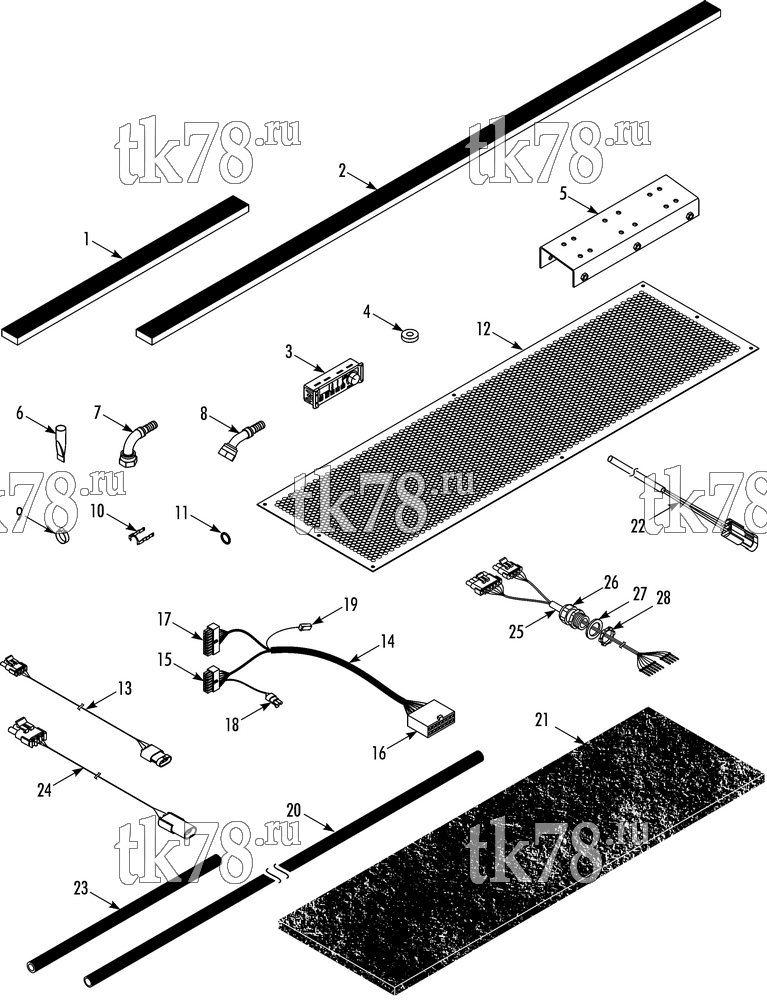

Установкa Thermo King D5-M3 & M3A схема INSTALLATION COMPONENTS (800252 & 800253) – 240A5
Обновление от: 6/1/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 7 | 51-2433 | FITTING - ORS (90 degrees, #12) | 1 | |
| 8 | 55-9987 | FITTING - ORS (45 degrees, #12) | 1 | |
| 3 | 41-4658 | ClimaAIRE II (see 184F9) | 1 | |
| 10 | 55-9414 | CAGE (#12) | 2 | |
| 11 | 33-1222 | GASKET - o-ring (3/4 id) | 2 | |
| 6 | 66-1273 | VALVE - check | 2 | |
| 13 | 45-2188 | HARNESS - compressor to evap (for connectors see 115D14) | 1 | |
| 44-6959 | CONNECTOR - tower (3-pin, see 115D14) | 1 | ||
| 44-9569 | CONNECTOR - shroud (3-pin, see 115D14) | 1 | ||
| 14 | 41-8930 | HARNESS - driver to evaporator | 1 | |
| 15 | 41-661 | CONNECTOR (14-pin, see 234A4) | 1 | |
| 41-1807 | TERMINAL (10 amp, 18-24 ga) | 14 | ||
| 16 | 41-6160 | CONNECTOR (14-pin) | 1 | |
| 651-148 | TERMINAL - pin (18-24 ga) | 14 | ||
| 17 | 41-650 | CONNECTOR (18-pin, see 234A4) | 1 | |
| 41-1807 | TERMINAL (10 amp, 18-24 ga) | 18 | ||
| 18 | 44-5838 | CONNECTOR - tower (2-pin, see 115D14) | 1 | |
| 19 | 44-6381 | CONNECTOR - female (1-pin) | 1 | |
| 44-5066 | TERMINAL - fingrip (14-18 ga) | 1 | ||
| 20 | 98-6722 | HOSE (0.75 in x 1.00 in od, cut to 180 in) | A/R | |
| 21 | 92-6291 | FILTER - air | 1 | |
| 22 | 41-4157 | SENSOR - temperature | 1 | |
| 44-5835 | CONNECTOR - shroud (2-pin) | 1 | ||
| 44-5883 | TERMINAL - male (18-20 ga) | 2 | ||
| 44-5885 | SEAL - cable (green, 18-22 ga) | 2 | ||
| 23 | 67-1711 | HOSE - refrigeration (#12, cut to 24 in) | 2 | |
| 24 | 41-9092 | HARNESS - boost pump (for connectors see 115D14) | 1 | |
| 44-5838 | CONNECTOR - tower (2-pin) | 1 | ||
| 44-5835 | CONNECTOR - shroud (2-pin) | 1 | ||
| 25 | 45-2184 | HARNESS - condenser to evap (for connectors see 115D14) | 1 | |
| 44-7881 | CONNECTOR - tower (4-pin) | 1 | ||
| 44-7872 | CONNECTOR - tower (6-pin) | 1 | ||
| 26 | 41-6950 | CONNECTOR - liquid tite | 1 | |
| 27 | 41-5359 | WASHER - sealing | 1 | |
| 28 | 55-2635 | NUT - lock | 1 |
