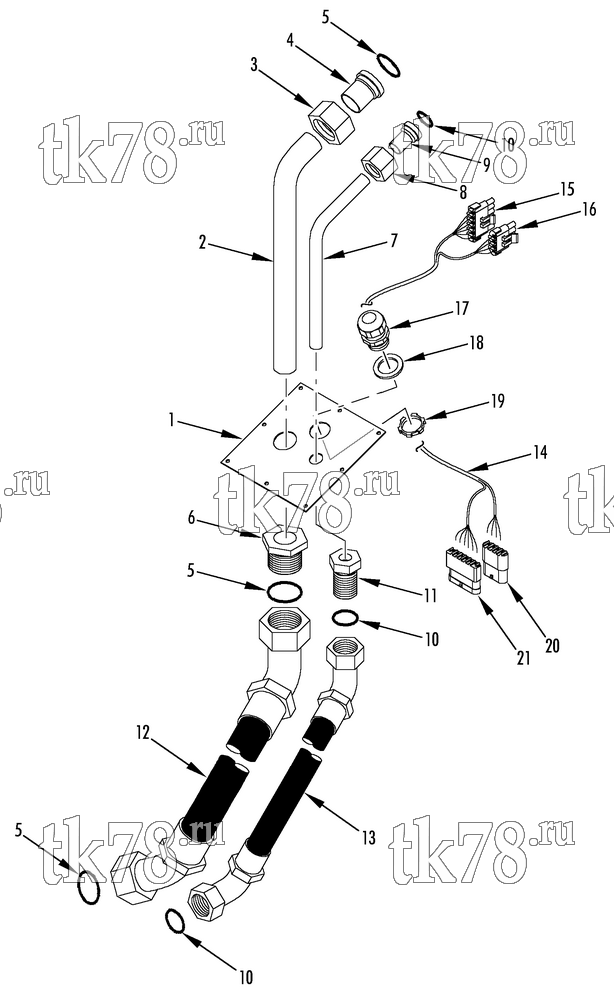

Установкa Thermo King D5-M3 & M3A схема COMPRESSOR HOSE KIT (700794) – 217D3
Обновление от: 7/16/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 92-6054 | PLATE | 1 | |
| 2 | 61-3837 | TUBE - discharge | 1 | |
| 3 | 55-5935 | NUT - shoulder | 1 | |
| 4 | 55-5939 | SLEEVE - adapter (#20) | 1 | |
| 5 | 33-1777 | GASKET - o-ring (1-3/16 id) | 4 | |
| 6 | 55-7537 | ADAPTER - bulkhead (#20) | 1 | |
| 7 | 61-3838 | TUBE - liquid | 1 | |
| 8 | 55-7054 | NUT - shoulder | 1 | |
| 9 | 55-7052 | SLEEVE - adapter (#12) | 1 | |
| 10 | 33-2193 | GASKET - o-ring (11/16 id) | 4 | |
| 11 | 55-9699 | ADAPTER - bulkhead (#12) | 1 | |
| 12 | 61-3835 | HOSE - liquid | 1 | |
| 13 | 61-3839 | HOSE - discharge | 1 | |
| 14 | 45-2184 | HARNESS - cond to evap (for connectors see 115D14) | 1 | |
| 15 | 44-7872 | CONNECTOR - tower (6-pin) | 1 | |
| 16 | 44-7881 | CONNECTOR - tower (4-pin) | 1 | |
| 17 | 41-6950 | CONNECTOR - liq tite | 1 | |
| 18 | 41-5359 | WASHER - sealing | 1 | |
| 19 | 55-2635 | NUT - lock | 1 | |
| 20 | 44-7880 | CONNECTOR - shroud (4-pin) | 1 | |
| 21 | 44-8294 | CONNECTOR - shroud (6-pin) | 1 |
