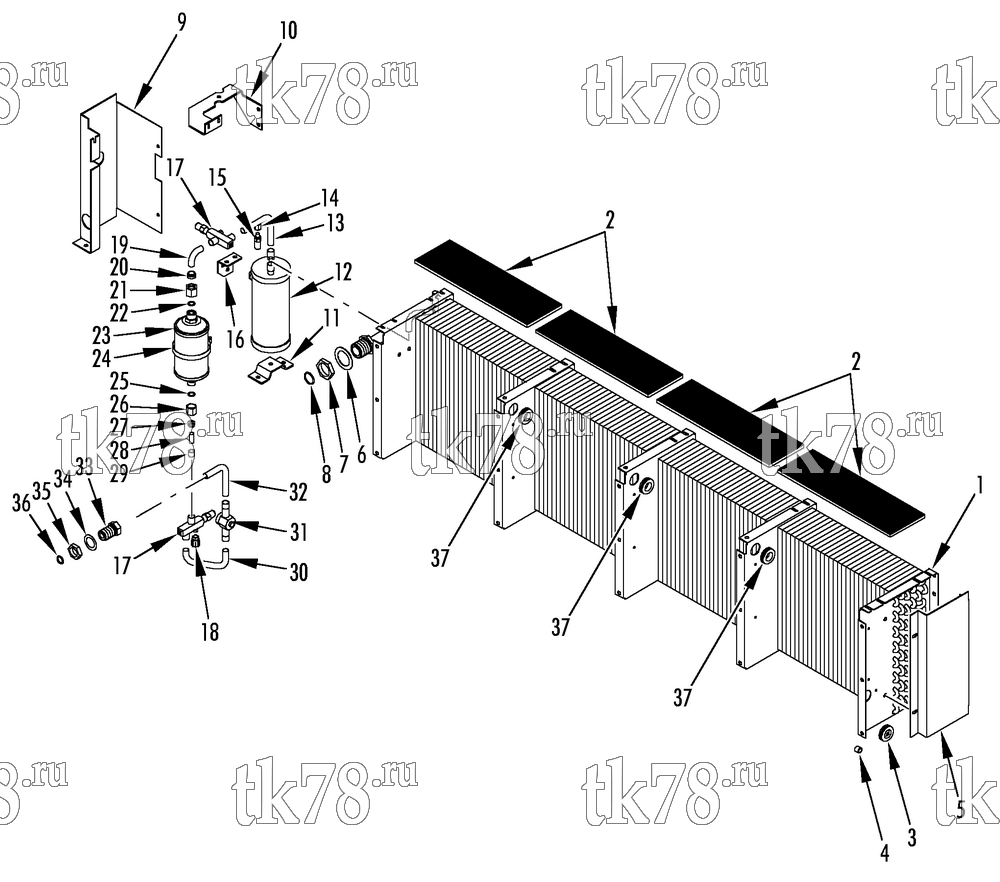

Установкa Thermo King D5-M2 схема CONDENSER REFRIGERATION COMPONENTS - UNDERMOUNT – 217D9
Обновление от: 10/9/06
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-2271 | COIL - condenser | 1 | |
| 55-8711 | INSERT | 36 | ||
| 2 | 92-6042 | INSULATION - condenser | 4 | |
| 3 | 33-2110 | GROMMET (1.00 in id) | 1 | |
| 4 | 41-7222 | SWITCH - thermostat | 1 | |
| 5 | 92-6043 | PLATE - hairpin cover | 1 | |
| 55-2957 | SCREW - plate | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 6 | 55-5742 | LOCKWASHER (1.77 id) | 1 | |
| 7 | 55-9231 | NUT- bulkhead, adapter (1-11/16) | 1 | |
| 8 | 33-1777 | GASKET - o-ring (1-3/16 id) | 1 | |
| 9 | 92-6044 | PANEL - cover, condenser | 1 | |
| 55-2957 | SCREW - panel | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 10 | 92-6045 | BRACKET - receiver tank, top | 1 | |
| 11 | 92-6046 | BRACKET - receiver tank, bottom | 1 | |
| 55-2957 | SCREW - bracket | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-8979 | INSERT | 4 | ||
| 12 | 61-225 | TANK - receiver | 1 | |
| 66-9918 | SIGHT GLASS | 1 | ||
| 33-2419 | GASKET - o-ring (15/16 id) | 1 | ||
| 55-4955 | NUT - tank | 2 | ||
| 55-2641 | FLATWASHER | 4 | ||
| 13 | 61-3823 | TUBE - receiver to valve | 1 | |
| 14 | 99-3060 | FITTING - saddle | 1 | |
| 15 | 66-7392 | VALVE - relief (see 119B8) | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 16 | 92-6047 | BRACKET - shutoff valve | 1 | |
| 55-2957 | SCREW - bracket | 3 | ||
| 55-1800 | LOCKWASHER | 3 | ||
| 55-2086 | FLATWASHER | 3 | ||
| 55-8979 | INSERT | 3 | ||
| 17 | 66-7899 | VALVE - shutoff | 2 | |
| 55-3502 | SCREW - valve | 2 | ||
| 55-2959 | LOCKWASHER | 2 | ||
| 55-4184 | WASHER - spl (0.344 in id) | 2 | ||
| 18 | 66-8086 | FITTING - refrigerant | 1 | |
| 66-7182 | CAP - fitting | 1 | ||
| 19 | 61-3824 | TUBE - valve to dehydrator | 1 | |
| 20 | 55-6356 | SHOULDER - ors | 1 | |
| 21 | 55-6396 | NUT - shoulder | 1 | |
| 22 | 33-566 | GASKET - o-ring (1/2 in id) | 1 | |
| 23 | 61-600 | DEHYDRATOR | 1 | |
|
US-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 8 100 ₽ |
|
|
PP-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 2 490 ₽ |
|
| 24 | 55-7799 | CLAMP - dehydrator (2.0-5.0 in dia) | 1 | |
| 25 | 33-2115 | GASKET - o-ring (5/8 in id) | 1 | |
| 26 | 55-6838 | NUT - shoulder | 1 | |
| 27 | 55-6837 | SHOULDER - ORS | 1 | |
| 28 | 66-8476 | TUBE (1.130 in lg) | 1 | |
| 29 | 55-2182 | BUSHING | 1 | |
| 30 | 61-3825 | TUBE - dehydrator to sightglass | 1 | |
| 31 | 66-2648 | INDICATOR - liquid | 1 | |
| 66-9273 | INDICATOR - dry eye | 1 | ||
| 32 | 61-3826 | TUBE - sightglass to adapter | 1 | |
| 33 | 55-9699 | ADAPTER - bulkhead (#12) | 1 | |
| 34 | 55-7199 | LOCKWASHER (1.21 id) | 1 | |
| 35 | 55-6812 | NUT - bulkhead adapter (1-3/16) | 1 | |
| 36 | 33-2193 | GASKET - o-ring (11/16 dia) | 1 | |
| 37 | 33-629 | GROMMET (1.00 in id) | 3 |
