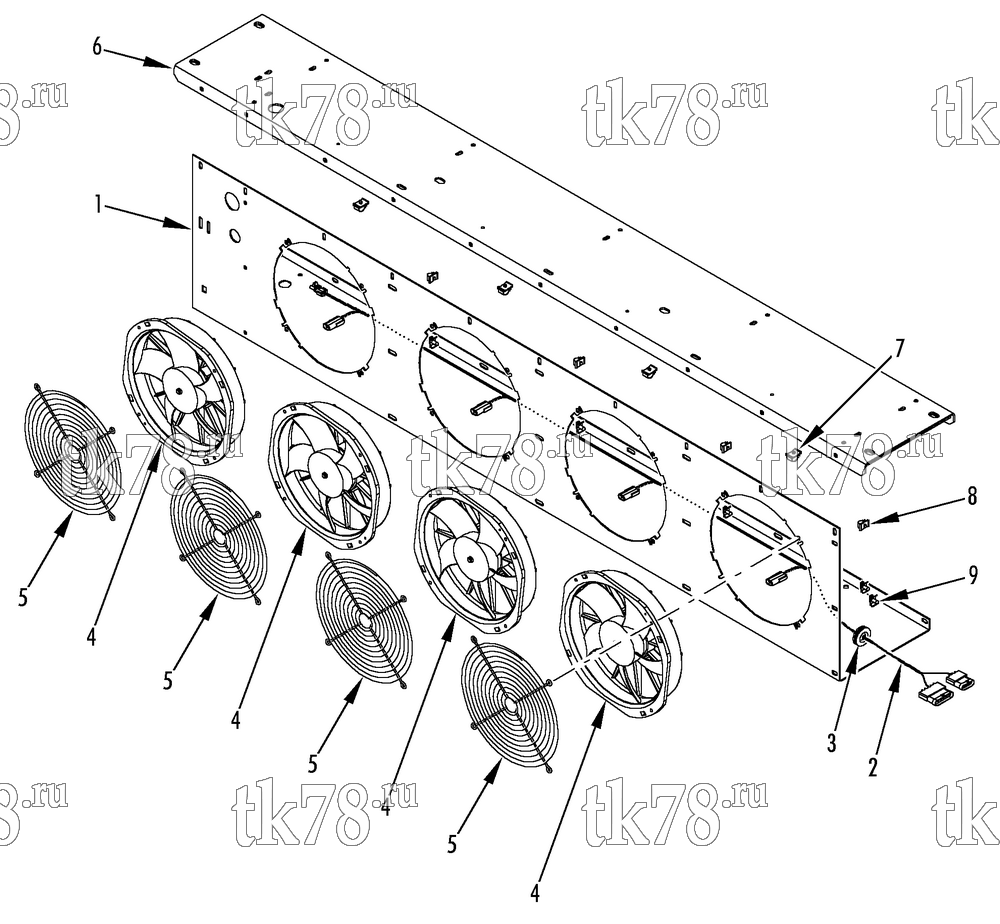

Установкa Thermo King D5-M2 схема CONDENSER STRUCTURAL COMPONENTS – 217D0
Обновление от: 3/24/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-7678 | PANEL - condenser fan | 1 | |
| 55-2957 | SCREW - panel | 30 | ||
| 55-1800 | LOCKWASHER | 30 | ||
| 55-2086 | FLATWASHER | 16 | ||
| 55-4414 | WASHER - spl (0.281 id) | 14 | ||
| 55-8979 | INSERT | 10 | ||
| 2 | 41-7626 | HARNESS - condenser motors (for connectors see 115D14) | 1 | |
| 44-5838 | CONNECTOR - tower (2-pin) | 1 | ||
| 44-5884 | TERMINAL - female (18-20 ga) | 2 | ||
| 44-5885 | SEAL - cable (green, 18-22 ga) | 2 | ||
| 44-5835 | CONNECTOR - shroud (2-pin) | 4 | ||
| 44-5836 | TERMINAL - male (14-16 ga) | 2 | ||
| 44-6324 | SEAL - cable (blue, 12-14 ga) | 2 | ||
| 44-7880 | CONNECTOR - shroud (4-pin) | 1 | ||
| 44-5836 | TERMINAL - male (14-16 ga) | 4 | ||
| 44-6324 | SEAL - cable (blue, 12-14 ga) | 4 | ||
| 44-8294 | CONNECTOR - shroud (6-pin) | 1 | ||
| 44-5883 | TERMINAL - male (18-20 ga) | 2 | ||
| 44-5885 | SEAL - cable (green, 18-22 ga) | 2 | ||
| 44-5836 | TERMINAL - male (14-16 ga) | 4 | ||
| 44-6324 | SEAL - cable (blue, 12-14 ga) | 4 | ||
| 3 | 33-2110 | GROMMET (1.00 in id) | 1 | |
| 4 | 78-1414 | FAN - condenser (24VDC) | 4 | |
| 5 | 98-5425 | GUARD - fan | 4 | |
| 55-2979 | SCREW - fan & guard | 16 | ||
| 55-1800 | LOCKWASHER | 16 | ||
| 55-2086 | FLATWASHER | 16 | ||
| 55-8711 | INSERT | 16 | ||
| 6 | 98-7679 | PLATE - base | 1 | |
| 92-4646 | BOLTSTRIP - base | 7 | ||
| 55-2086 | FLATWASHER | 14 | ||
| 55-4414 | WASHER - spl (0.281 id) | 6 | ||
| 55-4953 | NUT | 14 | ||
| 55-2957 | SCREW - base | 5 | ||
| 55-1800 | LOCKWASHER | 5 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-4414 | WASHER - spl (0.281 id) | 4 | ||
| 7 | 99-9647 | CLIP - wire (0.500 dia) | 4 | |
| 8 | 99-9646 | CLIP - wire (0.375 dia) | 4 | |
| 9 | 55-9704 | CLIP - self locking | 5 |
