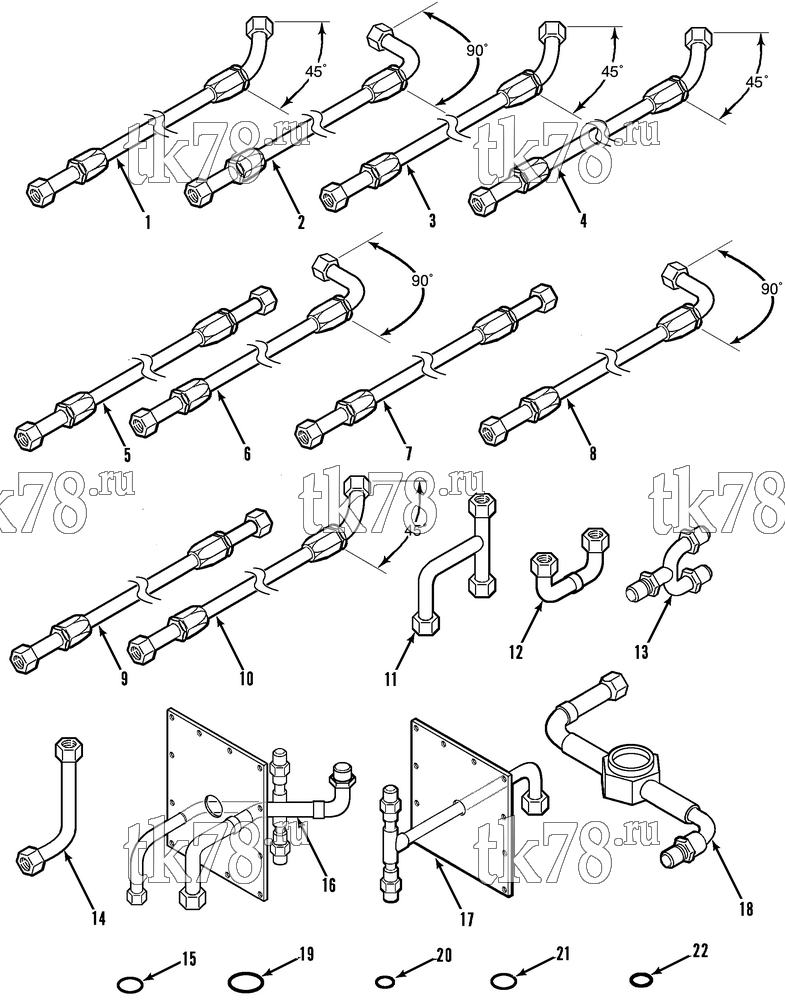

Установкa Thermo King D3i-II RC 1000 схема HOSE KIT (715561) – 143G2
Обновление от: 10/21/97
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 66-8961 | HOSE - compressor to u-tube | 1 | |
| 2 | 66-8962 | HOSE - u-tube to evaporator (roadside) | 1 | |
| 3 | 66-8963 | HOSE - u-tube to evaporator (curbside) | 1 | |
| 4 | 66-8964 | HOSE - evaporator to evaporator (curbside) | 1 | |
| 5 | 66-8965 | HOSE - evaporator to evaporator (roadside) | 1 | |
| 6 | 66-8966 | HOSE - adapter to evaporator (curbside) | 1 | |
| 7 | 66-8967 | HOSE - adapter to evaporator (curbside) | 1 | |
| 8 | 66-8968 | HOSE - adapter to evaporator (roadside) | 1 | |
| 9 | 66-8969 | HOSE - adapter to evaporator (roadside) | 1 | |
| 10 | 66-8970 | HOSE - compressor to adapter | 1 | |
| 11 | 66-8971 | U-TUBE - evaporator (roadside) | 1 | |
| 12 | 66-8972 | U-TUBE - evaporator (roadside) | 1 | |
| 13 | 66-8973 | U-TUBE - suction line | 1 | |
| 14 | 66-8974 | TUBE - connect evaporator (curbside) | 1 | |
| 15 | 33-2789 | WASHER - sealing | 3 | |
| 16 | 67-1491 | PLATE & TUBE - adapter | 1 | |
| 17 | 67-1492 | PLATE & TUBE - adapter | 1 | |
| 18 | 66-8975 | INDICATOR - liquid | 1 | |
| 66-1188 | INDICATOR - liquid | 1 | ||
| 19 | 33-1777 | O-RING (1-3/16 id) | 18 | |
| 20 | 33-2350 | O-RING (1/2 od) | 1 | |
| 21 | 33-1223 | O-RING (9/16 id) | 2 | |
| 22 | 33-566 | O-RING (1/2 od) | 2 |
