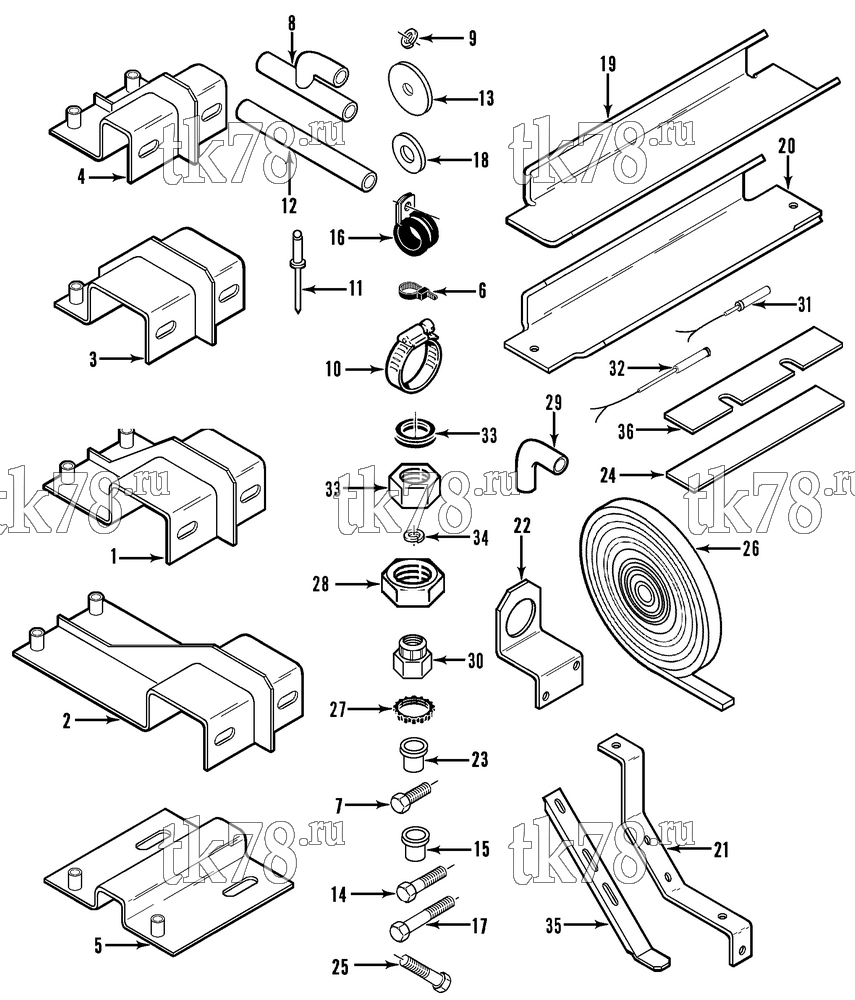

Установкa Thermo King D3i-II RC 1000 схема INSTALLATION COMPONENTS – 141D2
Обновление от: 6/23/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 91-8174 | BRACKET - evaporator | 1 | |
| 2 | 91-8175 | BRACKET - evaporator | 3 | |
| 3 | 91-8176 | BRACKET - evaporator | 2 | |
| 4 | 91-8177 | BRACKET - evaporator | 1 | |
| 5 | 91-8178 | BRACKET - evaporator | 1 | |
| 6 | 55-2330 | BANDWRAP (1.75 dia) | 120 | |
| 55-2331 | BANDWRAP (4.0 dia) | 100 | ||
| 55-2332 | BANDWRAP (0.75 dia) | 100 | ||
| 7 | 55-2957 | SCREW (hh, 1/4-20 x 3/4, ss) | 40 | |
| 8 | 66-8809 | TEE | 5 | |
| 9 | 55-1800 | LOCKWASHER (1/4, ss) | 56 | |
| 10 | 55-2069 | CLAMP - worm drive | 33 | |
| 11 | 55-5130 | RIVET - blind (5/32, .425, ss) | 50 | |
| 12 | 98-5215 | HOSE - polyethylene (12 mm id x 98.4 ft) | 1 | |
| 13 | 55-8542 | WASHER - special (2.5 in dia) | 44 | |
| 14 | 55-8931 | SCREW (M8 x 55) | 4 | |
| 15 | 55-6526 | INSERT - threaded (1/4-20, brass) | 35 | |
| 16 | 55-3741 | CLAMP (0.75 dia) | 15 | |
| 55-549 | CLAMP (0.5 in dia) | 3 | ||
| 55-2666 | CLAMP (1.437 dia) | 3 | ||
| 17 | 55-2979 | SCREW (hh, 1/4-20 x 1-1/4) | 31 | |
| 18 | 55-2945 | WASHER - special (0.281 id x 1.0 od x .125 thk) | 50 | |
| 19 | 91-8179 | STRIP - harness | 1 | |
| 20 | 91-8188 | STRIP - harness (1480 mm lg) | 1 | |
| 91-8192 | STRIP - harness (1510 mm lg) | 2 | ||
| 91-8193 | STRIP - harness (1660 mm lg) | 1 | ||
| 21 | 91-8180 | BRACKET | 1 | |
| 22 | 91-8181 | BRACKET | 1 | |
| 23 | 55-8929 | RIVET - nut (M8) | 4 | |
| 24 | 33-2466 | INSULATION (1499mm x 76mm x 12.7mm) | 9 | |
| 25 | 55-5639 | SCREW (hwhsm, 10, ss) | 25 | |
| 55-3099 | SCREW - truss head (10-32, ss) | 4 | ||
| 55-2086 | SCREW (hh, 1/4-20, ss) | 16 | ||
| 55-8123 | SCREW (pan, 6 x .50 szn) | 5 | ||
| 26 | 203-391 | SEALER - tape (permagum) | 1 | |
| 203-428 | TAPE (butyl cork) | 1 | ||
| 27 | 55-5742 | LOCKWASHER (1.75 id) | 1 | |
| 28 | 55-5739 | NUT - bulkhead (#20) | 1 | |
| 29 | 55-8930 | ELBOW | 5 | |
| 30 | 55-4560 | NUT (10-32) | 4 | |
| 55-4953 | LOCKNUT (1/4-20) | 12 | ||
| 31 | 40-975 | KIT - temperature sensor | 1 | |
|
40-975 OEM | Датчик температуры к-т, некалиброванный | 10 310 ₽ |
|
|
10-40-975 | Датчик температуры к-т, некалиброванный | 4 660 ₽ |
|
| NSS | SENSOR - ungraded (18 in) | 1 | ||
| 41-5210 | COLLAR - crimp | 2 | ||
| 92-846 | HEATSHRINK (1/2 in) | 2 | ||
| 32 | 41-7706 | SENSOR - temperature | 1 | |
| 33 | 55-6141 | CONNECTOR (liquid tite) | 1 | |
| 55-2242 | LOCKNUT - connector (3/4) | 1 | ||
| 34 | 55-2959 | LOCKWASHER (5/16, ss) | 4 | |
| 35 | 91-8185 | BRACKET - vertical | 8 | |
| 36 | 91-8186 | BRACKET - flat (0.080 thk) | 10 | |
| 91-8187 | BRACKET - flat (0.153 thk) | 10 |
