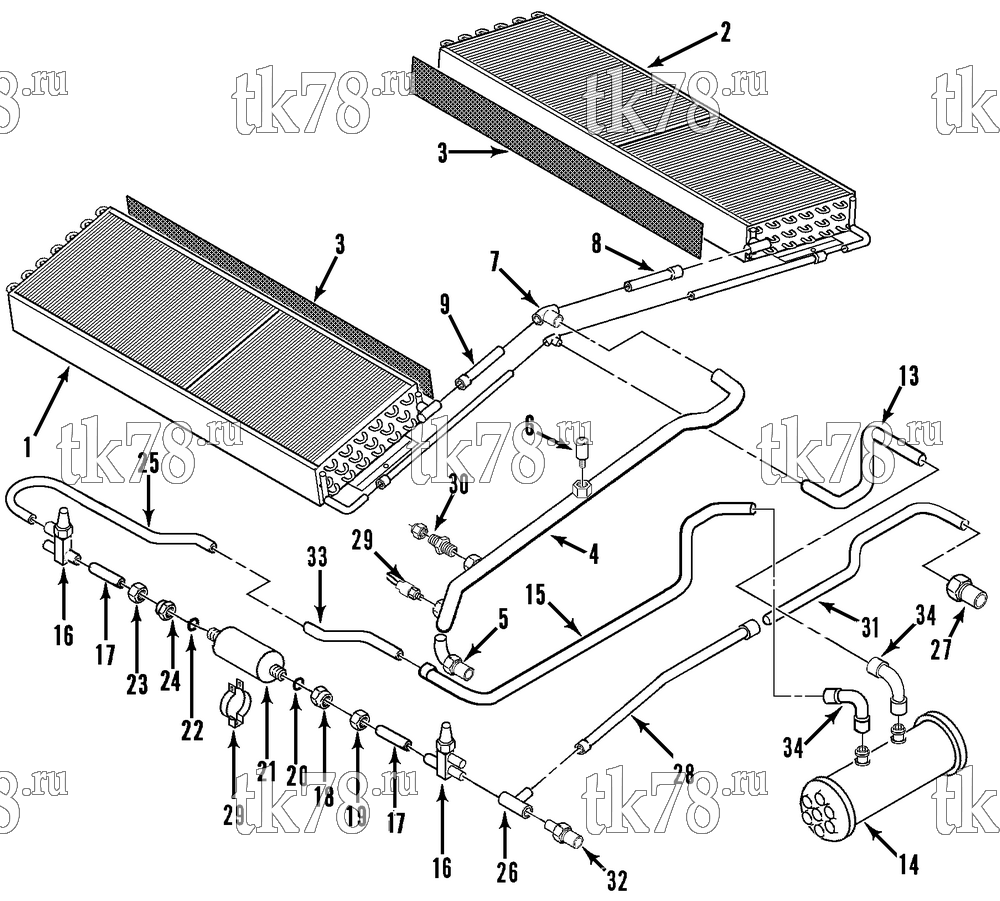

Установкa Thermo King D3i-II RC 1000 схема CONDENSER REFRIGERATION – 132G14
Обновление от: 4/20/04
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-1408 | COIL - condenser (roadside) | 1 | |
| 2 | 67-1414 | COIL - condenser (curbside) | 1 | |
| 55-2957 | SCREW - coil | 10 | ||
| 55-1800 | LOCKWASHER | 10 | ||
| 55-2945 | WASHER | 10 | ||
| 3 | 99-5966 | STRIP (neoprene, 50 ft) | A/R | |
| 4 | 66-8650 | TUBE - tee to adapter | 1 | |
| 66-4553 | FITTING - saddle | 2 | ||
| 55-8777 | FITTING - saddle | 1 | ||
| 5 | 55-1122 | ELBOW - adapter | 1 | |
| 55-5740 | NUT - bulkhead | 1 | ||
| 33-1785 | O-RING - adapter | 1 | ||
| 6 | 66-7392 | VALVE - relief (see 119B8) | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 7 | 55-2950 | TEE | 1 | |
| 8 | 66-8648 | TUBE - coil to tee | 1 | |
| 9 | 66-8649 | TUBE - tee to receiver | 1 | |
| 10 | 66-8652 | TUBE - coil to tee | 1 | |
| 11 | 66-8653 | TUBE - coil to tee | 1 | |
| 12 | 55-2296 | TEE | 1 | |
| 13 | 66-8654 | TUBE - tee to receiver | 1 | |
| 14 | 67-1062 | TANK - receiver | 1 | |
| 55-4955 | NUT - receiver | 2 | ||
| 55-4931 | WASHER - receiver | 2 | ||
| 15 | 66-8655 | TUBE - receiver to valve | 1 | |
| 16 | 66-4694 | VALVE - shutoff | 2 | |
| 66-2170 | CAP - valve | 1 | ||
| 17 | 66-8656 | TUBE - valve to dehydrator | 2 | |
| 18 | 55-6839 | SHOULDER | 1 | |
| 19 | 55-6396 | NUT - shoulder | 1 | |
| 20 | 33-2115 | O-RING (5/8) | 1 | |
| 21 | 61-600 | DEHYDRATOR | 1 | |
|
US-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 6 880 ₽ |
|
| 10-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 3 420 ₽ |
|
|
|
PP-61-600 | Дегидратор, SL/SLe/SLX/SLXe/SMX/SMX-II/SB / UT-800/1200 | 2 090 ₽ |
|
| 22 | 33-566 | O-RING (1/2) | 1 | |
| 23 | 55-6838 | NUT - shoulder | 1 | |
| 24 | 55-6837 | SHOULDER | 1 | |
| 25 | 66-8657 | TUBE - shoulder to tee | 1 | |
| 26 | 55-2296 | TEE | 1 | |
| 27 | 55-7064 | ADAPTER - bulkhead | 2 | |
| 55-6811 | NUT - adapter | 2 | ||
| 33-1223 | O-RING | 2 | ||
| 28 | 66-8660 | TUBE - tee to adapter | 1 | |
| 29 | 44-7991 | SWITCH - hpco | 1 | |
| 30 | 11-2886 | VALVE - pressure (see 119G12) | 1 | |
| 31 | 66-8661 | TUBE - adapter | 1 | |
| 32 | 66-8659 | TUBE - adapter | 1 | |
| 33 | 66-8658 | TUBE - tee to tube | 1 | |
| 34 | 55-1464 | ELBOW - receiver | 2 |
