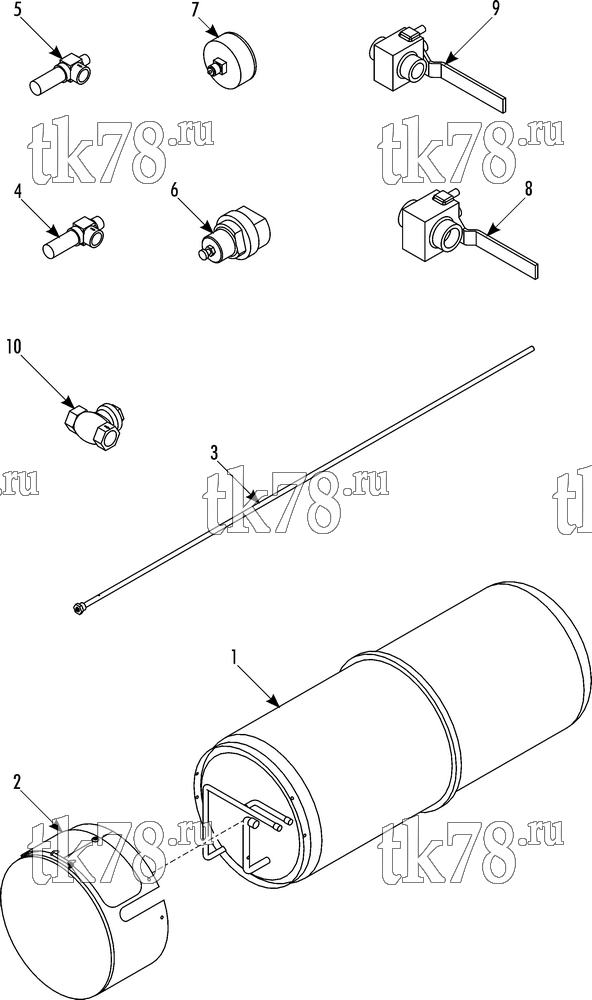

Установкa Thermo King CT-15 схема 430L CO2 TANK – 239A7
Обновление от: 7/25/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 12-936 | TANK - CO2, 430L | 1 | |
| 2 | 12-922 | SHROUD - tank | 1 | |
| 3 | 41-5708 | PROBE - contents | 1 | |
| 4 | 11-9479 | VALVE - relief | 2 | |
| 5 | 13-885 | VALVE - relief (200 PSI 3/8) | 1 | |
| 6 | 61-3114 | REGULATOR - pressure | 1 | |
| 7 | 61-4225 | GAUGE - pressure | 1 | |
| 8 | 11-9476 | VALVE - hand (3/4) | 1 | |
| 9 | 61-948 | VALVE - hand (1/2) | 1 | |
| 10 | 61-4226 | VALVE - check | 1 |
