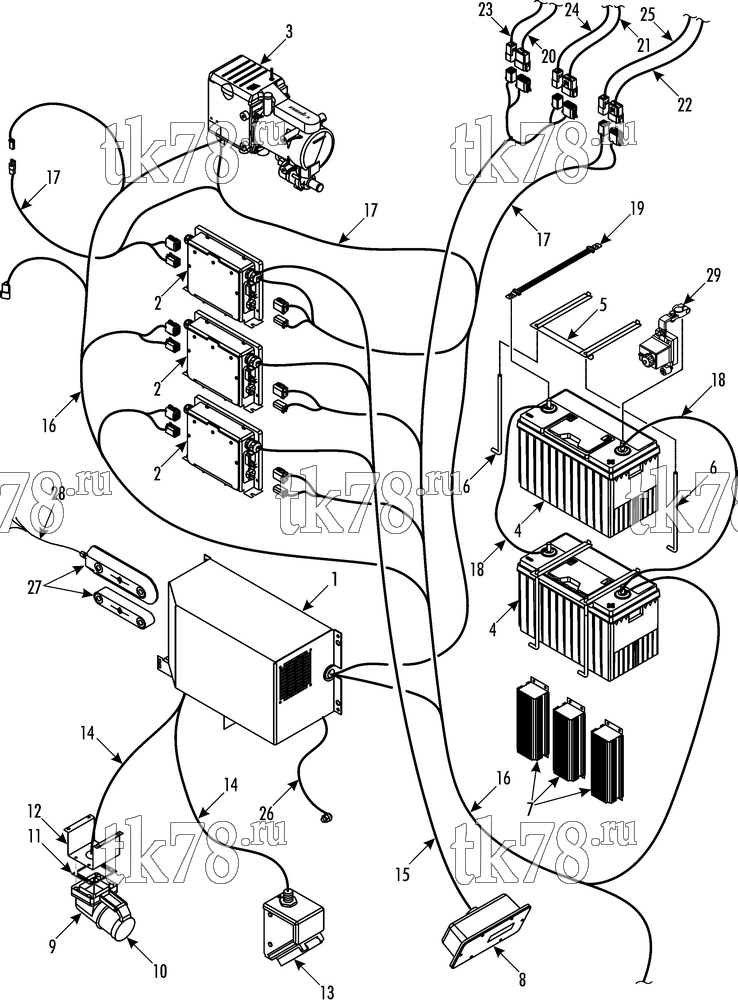

Установкa Thermo King CT-15 схема ELECTRICAL COMPONENTS – 239A6
Обновление от: 11/30/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | NSS | POWER BOX (see grid 239A4, 239A5) | 1 | |
| 2 | NSS | CONTROL BOX (see 183B8) | 3 | |
| 41-9304 | HARNESS - master/slave | 1 | ||
| 3 | NSS | HEATER - diesel (see grid 239A3) | 1 | |
| 4 | 203-550 | BATTERY | 2 | |
| 92-6073 | NAMEPLATE - battery | 1 | ||
| 5 | 92-7751 | CLAMP - battery | 2 | |
| 6 | 91-7727 | ROD - clamp | 4 | |
| 55-2542 | NUT - rod | 4 | ||
| 55-371 | FLATWASHER | 4 | ||
| 7 | 41-8896 | CHARGER (24V) | 2 | |
| 41-8897 | CHARGER (12V) | 3 | ||
| 56-3027 | SCREW - charger | A/R | ||
| 55-2964 | LOCKWASHER | A/R | ||
| 55-2001 | FLATWASHER | A/R | ||
| 8 | 41-8216 | HMI | 1 | |
| 55-3623 | SCREW - HMI | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-4560 | NUT | 2 | ||
| 9 | 41-519 | RECEPTACLE - power (380/3/50, mates w/ 41-520) | 1 | |
| 41-4666 | RECEPTACLE - power (220-230/3/50-60, mates w/ 41-782) | 1 | ||
| 41-8762 | RECEPTACLE - power box (3ph, 400V) | 1 | ||
| 41-8746 | RECEPTACLE - power box (3ph, 400V) | 1 | ||
| 10 | 99-9052 | COVER - box (24V) | 1 | |
| 11 | 33-1697 | GASKET - box (24V) | 2 | |
| 12 | 92-1169 | BRACKET - box (24V) | 1 | |
| 13 | NSS | BOX - power receptacle (12V , see 200F4) | 1 | |
| 14 | 41-8890 | HARNESS - hv cable (380 V, see grid 239A1) | 1 | |
| 15 | 41-8898 | HARNESS - HMI (3 zone) | 1 | |
| 41-8899 | HARNESS - HMI (2 zone) | 1 | ||
| 16 | 41-8894 | HARNESS - control (2 zone, for connectors see 112D9) | 1 | |
| 17 | 41-8895 | HARNESS - control (3 zone, for connectors see 112D9) | 1 | |
| 18 | 44-7186 | CABLE - battery | 2 | |
| 19 | 41-8915 | STRAP - ground , battery to frame | 1 | |
| 20 | 41-8916 | HARNESS - zone 1 (for connectors see 112D9) | 1 | |
| 21 | 41-8917 | HARNESS - zone 2 (for connectors see 112D9) | 1 | |
| 22 | 41-8918 | HARNESS - zone 3 (for connectors see 112D9) | 1 | |
| 23 | 41-8919 | HARNESS - sensor , zone 1 (for connectors see 112D9) | 1 | |
| 24 | 41-8920 | HARNESS - sensor , zone 2 (for connectors see 112D9) | 1 | |
| 25 | 41-8921 | HARNESS - sensor , zone 3 (for connectors see 112D9) | 1 | |
| 26 | 41-8902 | STRAP - ground , powerbox to frame | 1 | |
| 27 | 40-1135 | KIT - door switch | 1 | |
| 55-8421 | SCREW - switch (1.0 in) | 2 | ||
| 51-1321 | SCREW - switch (0.75 in) | 2 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 28 | 41-7281 | HARNESS - door switch | 1 | |
| 29 | 40-1138 | KIT - SafeGuard Battery Disconnect (24V, optional) | 1 |
