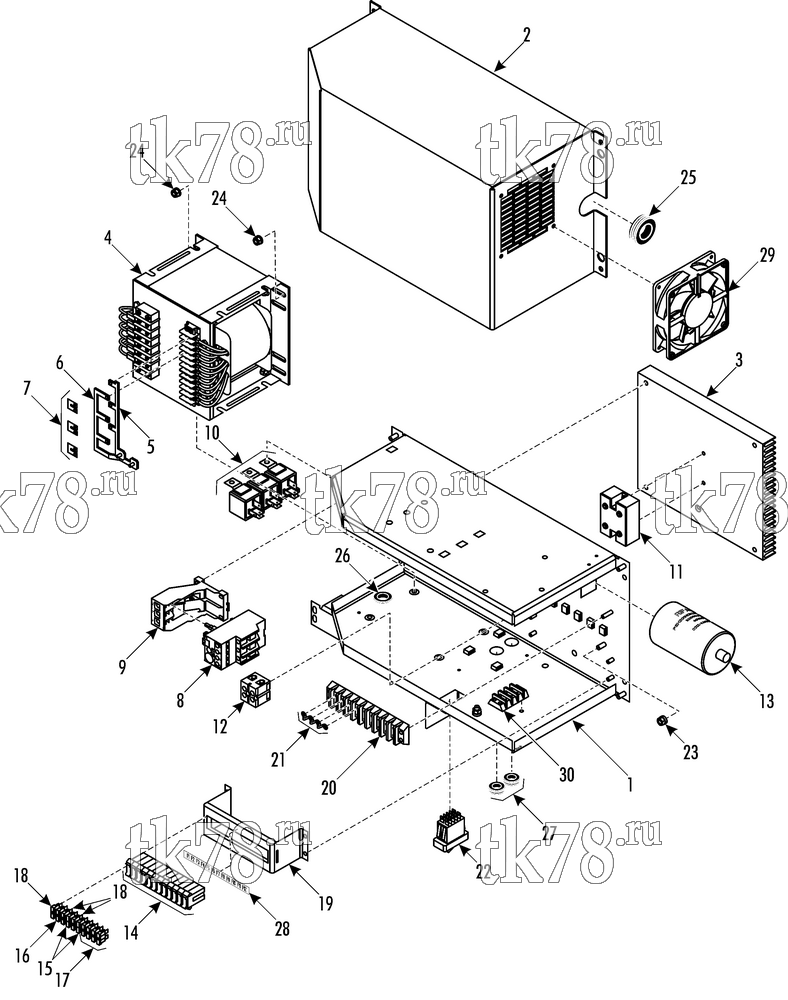

Установкa Thermo King CT-15 схема POWER BOX (24 V) – 239A4
Обновление от: 10/28/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-8286 | BASE - power box | 1 | |
| 55-9084 | INSERT - transformer (M6) | 4 | ||
| 55-6994 | SCREW - base to frame | 8 | ||
| 55-7170 | LOCKWASHER | 8 | ||
| 55-7075 | FLATWASHER | 8 | ||
| 2 | 92-7743 | COVER - power box | 1 | |
| 55-7042 | NUT - cover | 4 | ||
| 55-7075 | FLATWASHER | 4 | ||
| 55-9810 | NUT - self clinching | 4 | ||
| 3 | 92-7744 | HEATSINK | 1 | |
| 55-7042 | NUT - heatsink | 4 | ||
| 55-7075 | FLATWASHER | 4 | ||
| 4 | 41-8880 | TRANSFORMER (1.1 kVA) | 1 | |
| 55-6994 | SCREW - transformer | 4 | ||
| 55-7170 | LOCKWASHER | 4 | ||
| 55-7075 | FLATWASHER | 4 | ||
| 5 | 92-7745 | LINK - shorting (+24 V) | 1 | |
| 6 | 92-7746 | LINK - shorting (-24 V) | 1 | |
| 7 | 44-6933 | JUMPER - strip | 3 | |
| 8 | 41-8881 | RELAY - overload | 1 | |
| 9 | 44-9105 | BRACKET - overload relay | 1 | |
| 55-9694 | SCREW - bracket | 4 | ||
| 10 | 41-8882 | RELAY (24 V) | 3 | |
| 55-7042 | NUT - relay | 3 | ||
| 55-7075 | FLATWASHER | 3 | ||
| 11 | 41-8883 | RECTIFIER | 1 | |
| 55-2269 | SCREW - rectifier | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-4560 | NUT | 2 | ||
| 12 | 41-8884 | BLOCK - terminal | 1 | |
| 55-9695 | SCREW - block | 1 | ||
| 13 | 41-8885 | CAPACITOR (100 mF) | 1 | |
| 55-8471 | NUT- capacitor | 1 | ||
| 55-6283 | LOCKWASHER | 1 | ||
| 14 | 41-8886 | HOLDER - fuse | 12 | |
| 15 | 41-1932 | FUSE (1 A) | 2 | |
| 16 | 44-9758 | FUSE (10 A) | 1 | |
|
10-44-9758 | Предохранитель 10 ампер 10 шт | 1 860 ₽ |
|
| 17 | 44-9344 | FUSE (15 A) | 4 | |
|
10-44-9344 | Предохранитель 15 ампер 10 шт | 1 860 ₽ |
|
| 18 | 41-2978 | FUSE (20 A) | 3 | |
| 30-41-2978 | Предохранитель 32V 20А | 500 ₽ |
|
|
| 19 | 92-7748 | BRACKET - fuse | 1 | |
| 55-7034 | NUT - bracket | 4 | ||
| 55-7089 | FLATWASHER | 4 | ||
| 20 | 44-2559 | BOARD - terminal | 1 | |
| 55-7034 | NUT - board | 2 | ||
| 55-7089 | FLATWASHER | 2 | ||
| 21 | 44-2915 | JUMPER - strip | 3 | |
| 22 | 41-8887 | SWITCH | 1 | |
| 23 | 55-7354 | NUT - grounding | 4 | |
| 55-7075 | FLATWASHER | 8 | ||
| 24 | 55-7042 | NUT - grounding | 2 | |
| 55-7075 | FLATWASHER | 2 | ||
| 25 | 33-452 | GROMMET (0.875 id) | 1 | |
| 26 | 33-4097 | GROMMET (0.625 id) | 1 | |
| 27 | 33-1215 | GROMMET (0.500 id) | 2 | |
| 28 | 92-7749 | NAMEPLATE - fuse | 1 | |
| 29 | 41-4826 | FAN - power box (24V) | 1 | |
| 41-9303 | HARNESS - fan, power box | 1 | ||
| 30 | 44-1750 | BOARD - terminal | 1 | |
| 55-9810 | NUT - board | 2 | ||
| 55-9694 | SCREW - board | 2 |
