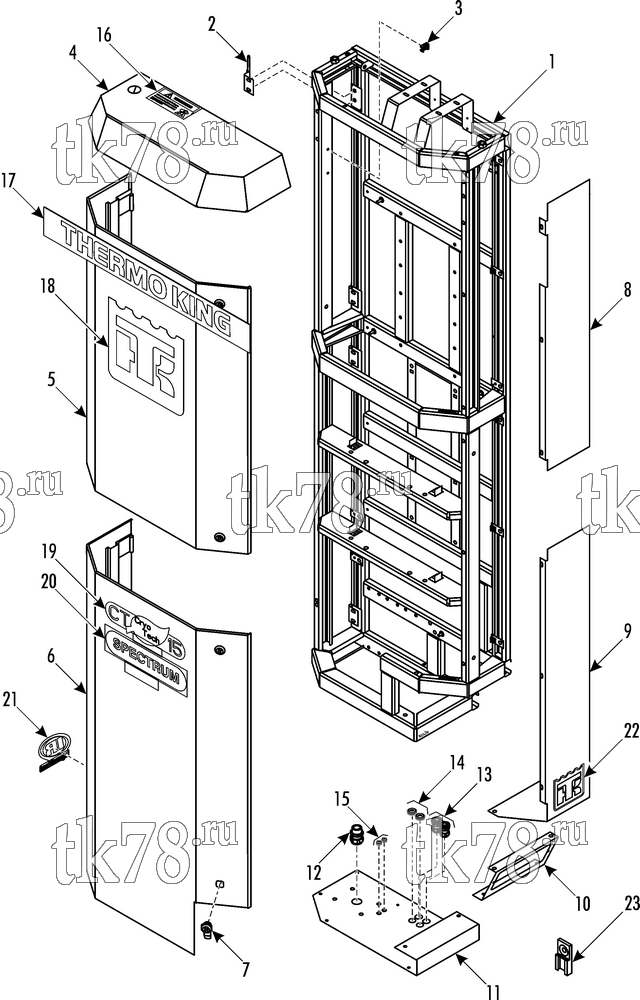

Установкa Thermo King CT-15 схема FRAME & COVERS – 239A2
Обновление от: 10/20/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-8280 | FRAME - weldment | 1 | |
| 51-1896 | BOLT - mounting | 6 | ||
| 55-5186 | FLATWASHER | 6 | ||
| 55-7347 | LOCKWASHER | 6 | ||
| 55-7344 | NUT - hexstop | 6 | ||
| 55-9084 | INSERT - threaded (M6) | 31 | ||
| 55-8798 | INSERT - (#10-32) | 24 | ||
| 2 | 92-7732 | HINGE - cover | 4 | |
| 55-6994 | SCREW - hinge | 8 | ||
| 55-7170 | LOCKWASHER | 8 | ||
| 55-7075 | FLATWASHER | 8 | ||
| 3 | 99-6093 | MOUNT - cable tie | 6 | |
| 55-3136 | RIVET - mount | 6 | ||
| 4 | 92-7733 | COVER - top | 1 | |
| 51-718 | SCREW - top cover | 3 | ||
| 5 | 92-7735 | COVER - upper door | 1 | |
| 92-7752 | HINGE - cover | 2 | ||
| 6 | 92-7734 | COVER - lower door | 1 | |
| 92-7752 | HINGE - cover | 2 | ||
| 7 | 11-9918 | LOCK - door | 4 | |
| 8 | 92-7736 | COVER - upper side | 1 | |
| 9 | 92-7737 | COVER - lower side | 1 | |
| 55-3561 | SCREW - side cover | 12 | ||
| 10 | 92-7738 | COVER - HMI | 1 | |
| 11 | 92-7739 | COVER - bottom | 1 | |
| 51-718 | SCREW - bottom cover & HMI cover | 9 | ||
| 55-9084 | INSERT - HMI cover | 2 | ||
| 12 | 55-6141 | CONNECTOR - harness grip | 1 | |
| 13 | 55-5111 | CONNECTOR - harness grip | 2 | |
| 14 | 33-1215 | GROMMET (0.500 id) | 2 | |
| 15 | 33-314 | GROMMET (0.312 id) | 2 | |
| 16 | 92-2409 | NAMEPLATE - Asphyxiation | 1 | |
| 17 | 99-7279 | NAMEPLATE - Thermo King (black letters) | 1 | |
| 18 | 92-6527 | NAMEPLATE - TK logo (292 x 263) | 1 | |
| 19 | 92-7740 | NAME PLATE - Cryo Tech | 1 | |
| 20 | 92-7741 | NAMEPLATE - SPECTRUM | 1 | |
| 21 | 92-4305 | NAMEPLATE - IR logo | 1 | |
| 22 | 91-4253 | NAMEPLATE - TK logo | 1 | |
| 23 | 44-9906 | TAB - connector mounting | 1 |
