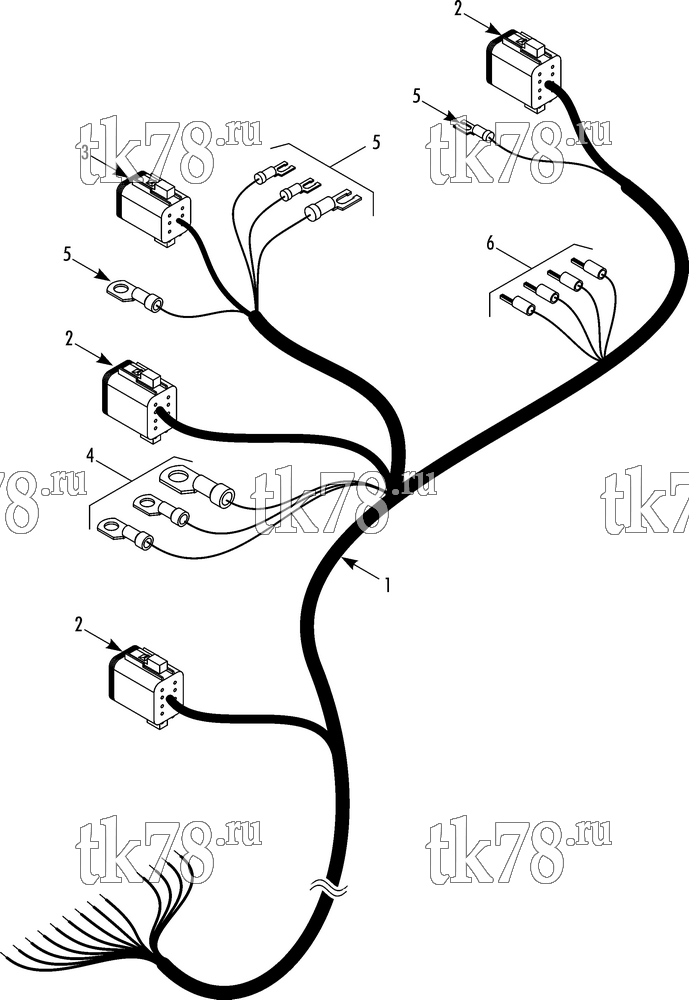

Установкa Thermo King CT-10 SPECTRUM схема MAIN HARNESS - ZONE 1 & 2 – 244H9
Обновление от: 8/30/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-5691 | HARNESS - main (Zone-1) | 1 | |
| 41-5697 | HARNESS - main (Zone-2) | 1 | ||
| 2 | 44-9903 | PLUG (8-pin, w/ seal) | 3 | |
| 44-9902 | WEDGE - plug (8-pin) | 3 | ||
| 3 | 44-8920 | PLUG (6-pin, w/ seal) | 1 | |
| 44-8921 | WEDGE - plug (6-pin) | 1 | ||
| 44-9593 | SOCKET (14-16 ga) | 6 | ||
| 44-9587 | SOCKET (18 ga) | 21 | ||
| 44-9602 | PIN - sealing | 3 | ||
| 4 | 44-2793 | TERMINAL - ring (1/4 yellow) | 1 | |
| 44-2792 | TERMINAL - ring (#8 yellow) | 1 | ||
| 44-2789 | TERMINAL - ring (blue 1/4, 14-16 ga) | 1 | ||
| 5 | 41-280 | TERMINAL - fork (22-16 ga) | 2 | |
| 41-9493 | TERMINAL - fork (12-10 ga) | 1 | ||
| 6 | 41-543 | TERMINAL - pin (red, 18-22 gauge) | 4 |
