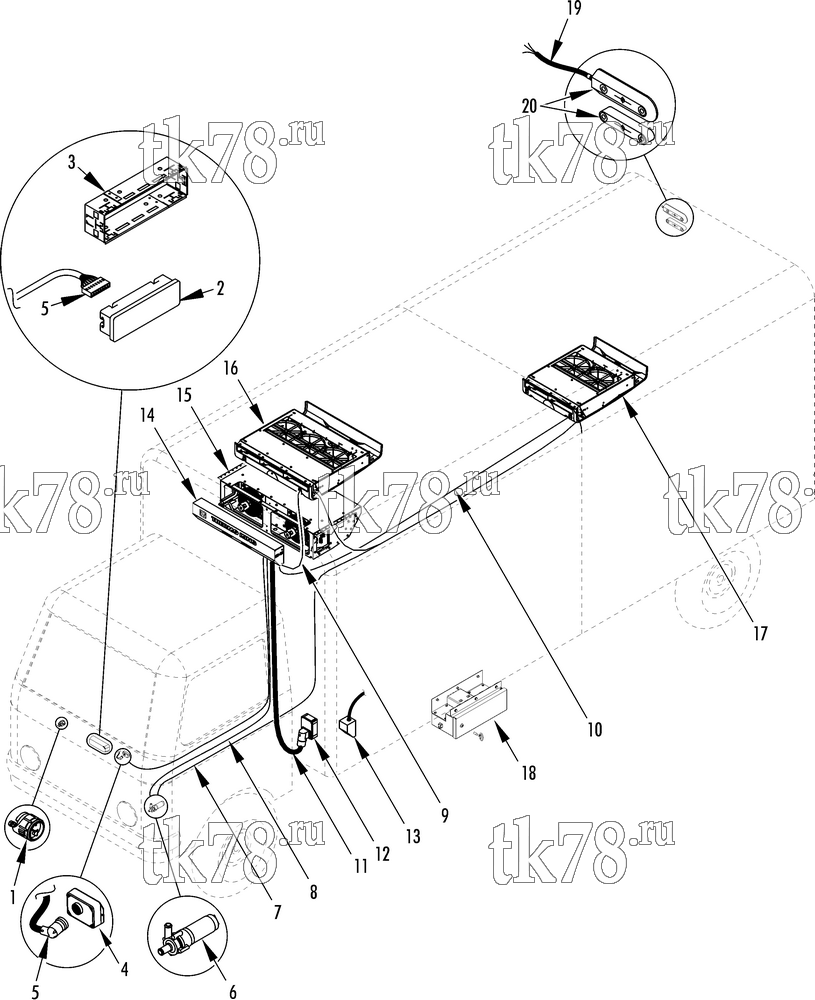

Установкa Thermo King CT-10 SPECTRUM схема ELECTRICAL COMPONENTS CT-10 SPECTRUM – 244H8
Обновление от: 5/30/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 11-9742 | CO2 GAUGE - analog (24VDC) | 1 | |
| 11-9743 | CO2 GAUGE - analog (12VDC) | 1 | ||
| 2 | 45-2335 | CONTROLLER - HMI | 1 | |
| 3 | 92-5199 | BRACKET - din panel | 1 | |
| 4 | 45-2334 | MODULE - HMI interface | 1 | |
| 5 | 41-9485 | HARNESS - HMI (CT-10 2 zone) | 1 | |
| 6 | 41-2234 | PUMP - coolant (24VDC) | 1 | |
| 41-2233 | PUMP - coolant (12VDC) | 1 | ||
| 7 | 98-796 | HOSE - coolant (5/8 x 25 ft) | A/R | |
| 8 | 41-5692 | HARNESS - interconnecting | 1 | |
| 41-3074 | HOLDER - fuse | 1 | ||
| 30-41-3074 | Гнездо предохранителя | 600 ₽ |
|
|
| 41-4551 | FUSE - 5 amp | 1 | ||
| 30-41-4551 | Предохранитель 32V 5А | 520 ₽ |
|
|
| 9 | 41-5691 | HARNESS - main (zone 1, see 244H9) | 1 | |
| 10 | 41-5697 | HARNESS - main (zone 2, see 244H9) | 1 | |
| 11 | 41-5693 | HARNESS - power | 1 | |
| 44-2792 | TERMINAL (#10) | 1 | ||
| 44-9891 | TERMINAL - pin (#10) | 4 | ||
| 33-810 | GROMMET - harness | 1 | ||
| 12 | NSS | BOX - power EMEIA (see 173A8) | 1 | |
| 13 | NSS | BOX - power TSA (see 124G14) | 1 | |
| 14 | NSS | CONTROL BOX - Multi-Temp (see 189F3) | 1 | |
| 15 | NSS | EVAPORATOR (SR-CR 300, see 176D7) | 1 | |
| 16 | NSS | EVAPORATOR (S3 CT, see 189A7 - A0) | 1 | |
| 17 | NSS | EVAPORATOR (S2 CT, see 189A2, A4 - A7) | 1 | |
| 18 | 60-311 | KIT - remote box (see 226A5) | 1 | |
| 19 | 41-7281 | HARNESS - door switch | 1 | |
| 20 | 40-1135 | KIT - door switch | 1 | |
| 55-8421 | SCREW - switch (1.0 in) | 2 | ||
| 51-1321 | SCREW - switch (0.75 in) | 2 | ||
| 55-2001 | FLATWASHER | 4 |
