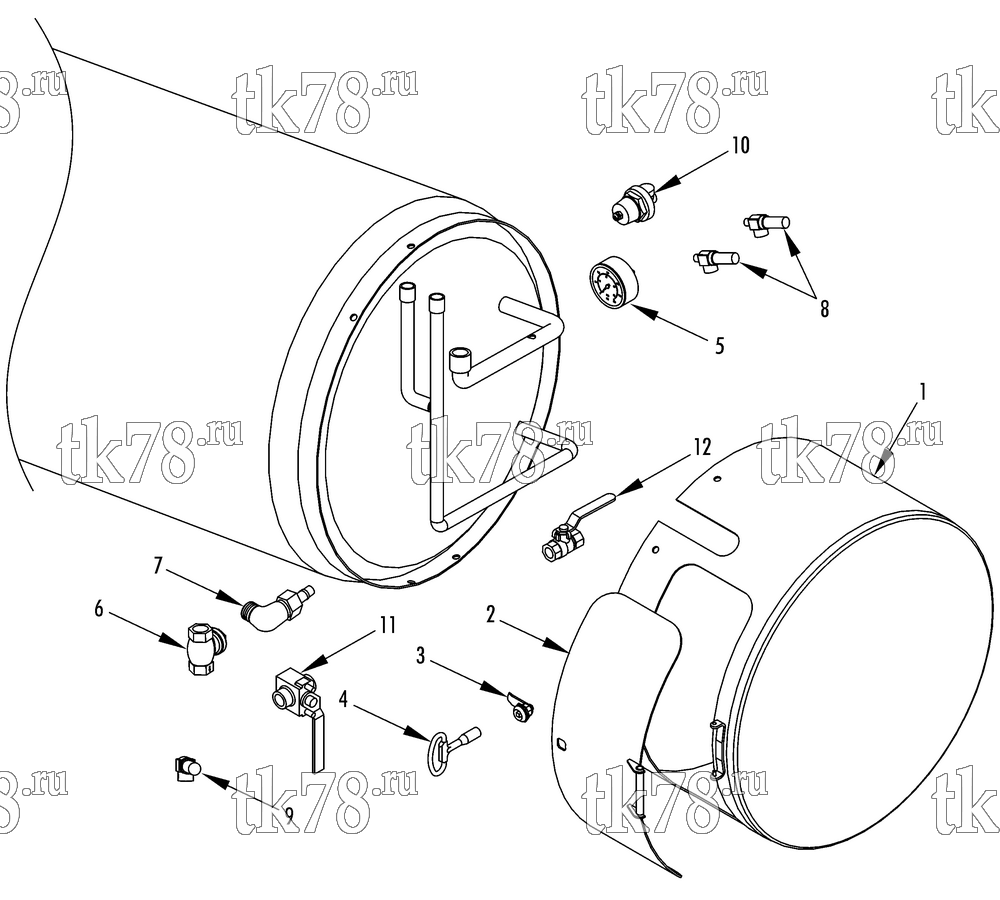

Установкa Thermo King CT-10 SPECTRUM схема 207L CO2 TANK ASSEMBLY – 244H0
Обновление от: 9/2/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 12-929 | TANK - CO2 (207 liter) | 1 | ||
| 1 | 13-1089 | SHROUD - tank | 1 | |
| 2 | 13-1110 | DOOR - tank | 1 | |
| 3 | 13-1111 | LOCK - door | 1 | |
| 4 | 13-1112 | KEY - door lock | 1 | |
| 5 | 61-4225 | GAUGE - pressure | 1 | |
| 6 | 61-4226 | VALVE - check | 1 | |
| 7 | 41-5708 | PROBE - level | 1 | |
| 8 | 11-9479 | VALVE - relief (150 psi) | 2 | |
| 9 | 13-885 | VALVE - relief (200 psi) | 1 | |
| 10 | 61-3114 | REGULATOR - economizer | 1 | |
| 11 | 11-9476 | VALVE - hand (3/4) | 1 | |
| 12 | 61-948 | VALVE - hand (1/2) | 1 |
