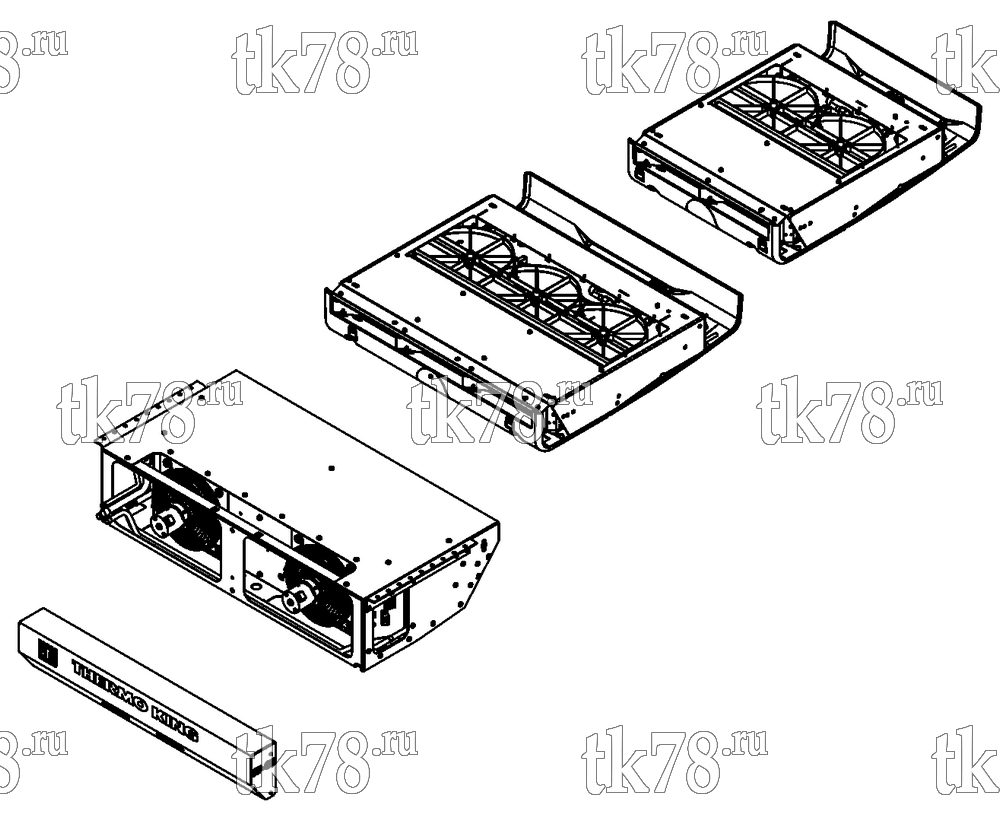

Установкa Thermo King CT-10 SPECTRUM схема CT-10 SPECTRUM REFERENCE SHEET – 15U40
Обновление от: 9/14/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 900038 | ST-CR 30 MT 24V | 9/10 | ||
| 900039 | ST-CR 30 MT 12V | 9/10 | ||
| 920180 | ST-CR 50 MT 24V 380/3/50 | 9/10 | ||
| 920181 | ST-CR 50 MT 12V 230/3/60 | 9/10 | ||
| 088241 | 220 Volt | 9/10 | ||
| 700078 | External Control Box | 5/10 | ||
| 700085 | Evaporator STCR 100 30 24V | 9/10 | ||
| 700089 | Evaporator STCR 200 30 24V | 9/10 | ||
| 700087 | Evaporator STCR 300 30 24V | 9/10 | ||
| 700248 | Door Switch | 9/10 | ||
| 700481 | CO2 Tank - 207 Liter | 9/10 | ||
| 700487 | Remote Box | 9/10 | ||
| 701934 | Exhaust Muffler | 9/10 | ||
| 719771 | CO2 Tank - 330 Liter | 9/10 | ||
| 702179 | HMI DIN kit | 9/10 | ||
| 720420 | Remote Control Box | 9/10 | ||
| 720421 | Installation Kit for Second Tank | 9/10 | ||
| 720522 | Control Box - 24V | 9/10 | ||
| 720523 | Control Box - 12V | 9/10 | ||
| 800132 | Tank Mounting Brackets Vertical 330L Tank | 9/10 | ||
| 800133 | Tank Mounting Brackets Horizontal 330L Tank | 9/10 | ||
| 800134 | Brackets - Horizontal Tank Mount 207 Liter | 9/10 | ||
| 880180 | Installation Kit - Multi-Temp | 9/10 | ||
| 900030 | Evaporator S-2 CT 24V | 9/10 | ||
| 880177 | Installation Kit - STCR 100/200 | 9/10 | ||
| 880178 | Installation Kit - STCR 300 | 9/10 | ||
| 900033 | Evaporator S-2 CT 12V | 9/10 | ||
| 900031 | Evaporator S-3 CT 24V | 9/10 | ||
| 900034 | Evaporator S-3 CT 12V | 5/10 | ||
| 900032 | Evaporator S-2 CT+ 24V | 9/10 | ||
| 900035 | Evaporator S-2 CT+ 12V | 9/10 | ||
| 880041 | Transverse Drain | 9/10 |
