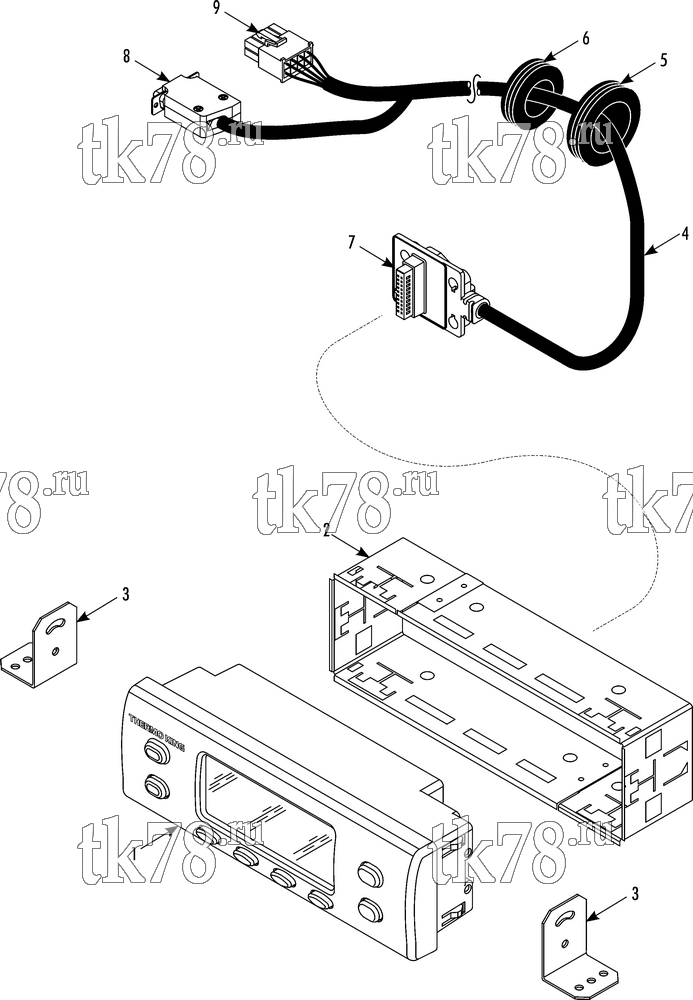

Установкa Thermo King CT-10 & CT-15 SR-3 схема CAB HMI CONTOLLER & HARNESS – 269G1
Обновление от: 7/25/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 45-2525 | CONTROLLER - cab (HMI) | 1 | |
| 2 | 92-5199 | BRACKET - din | 1 | |
| 3 | 91-4308 | BRACKET - in cab | 2 | |
| 4 | 41-5813 | HARNESS - HMI (10M, premium) | 1 | |
| 5 | 33-3927 | GROMMET | 1 | |
| 6 | 33-2110 | GROMMET | 1 | |
| 7 | 41-4858 | PLUG (20 pin) | 1 | |
| 41-4859 | RECEPTACLE (24-20 ga) | 11 | ||
| 8 | 41-2411 | CONNECTOR - female (15 pin) | 1 | |
| 41-1217 | COVER | 1 | ||
| 9 | 41-4734 | PLUG (8 pin) | 1 |
