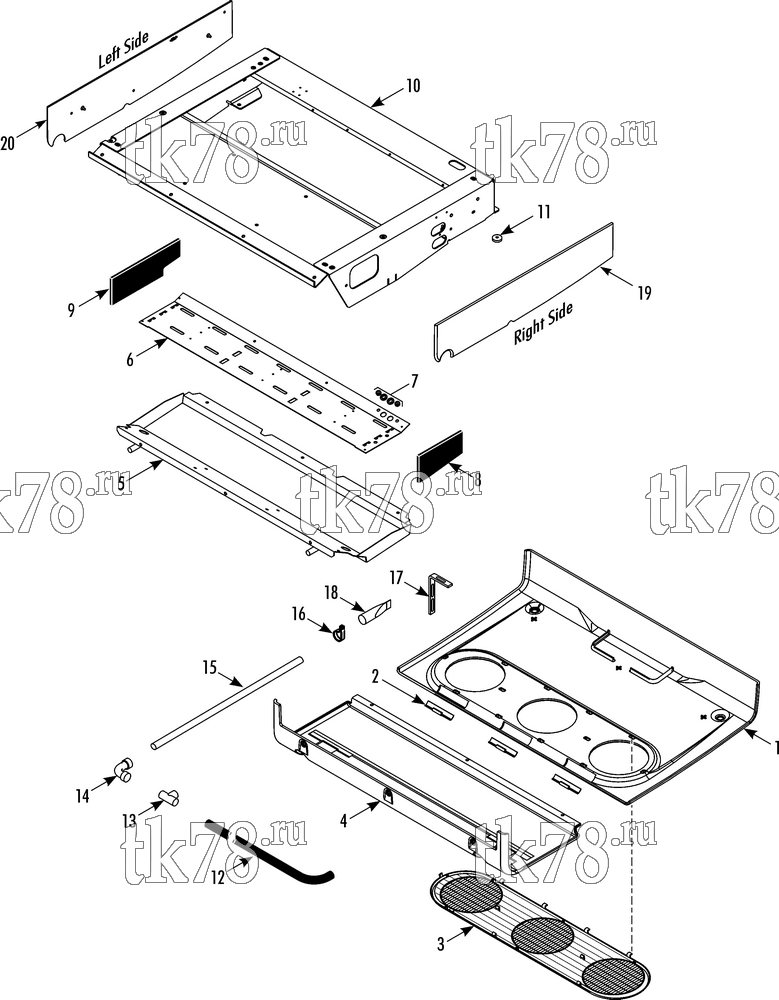

Установкa Thermo King CT-10 & CT-15 SR-3 схема FRAME AND PANELS (S-3) – 269B9
Обновление от: 8/1/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-7979 | COVER - back | 1 | |
| 51-718 | SCREW - cover | 2 | ||
| 2 | 92-7702 | HINGE | 3 | |
| 3 | 92-6473 | GRILLE - blower intake | 1 | |
| 51-1749 | PUSHNUT | 1 | ||
| 4 | 98-7977 | COVER - front (blower outlet) | 1 | |
| 55-9761 | SCREW - cover | 6 | ||
| 5 | 92-1452 | DRAIN PAN - lower | 1 | |
| 55-9084 | INSERT - threaded | 3 | ||
| 55-9761 | SCREW - drain pan | 6 | ||
| 6 | 92-2699 | DRAIN PAN - upper | 1 | |
| 7 | 33-314 | GROMMET (5/16) | 2 | |
| 33-1215 | GROMMET (1/2) | 2 | ||
| 8 | 33-3883 | FOAM - right side | 1 | |
| 9 | 33-3446 | FOAM - left side | 1 | |
| 10 | 98-6783 | FRAME - evaporator | 1 | |
| 11 | 33-3443 | GROMMET - bumper | 3 | |
| 12 | 92-5816 | HOSE - preform | 1 | |
| 13 | 51-249 | CONNECTOR - tee | 2 | |
| 14 | 55-9767 | CONNECTOR - elbow | 1 | |
| 15 | 92-1455 | PIPE - defrost drain (809 mm) | 1 | |
| 92-1442 | PIPE - defrost drain (1000 mm) | 1 | ||
| 16 | 55-3741 | CLAMP - hose | 1 | |
| 55-4666 | SCREW - clamp | 1 | ||
| 17 | 92-2238 | BRACKET - drain | 1 | |
| 55-5955 | SCREW - bracket | 2 | ||
| 55-4638 | FLATWASHER | 6 | ||
| 55-7007 | NUT | 3 | ||
| 18 | 61-4752 | VALVE - check | 1 | |
| 19 | 92-6622 | COVER - right side | 1 | |
| 20 | 92-6623 | COVER - left side | 1 |
