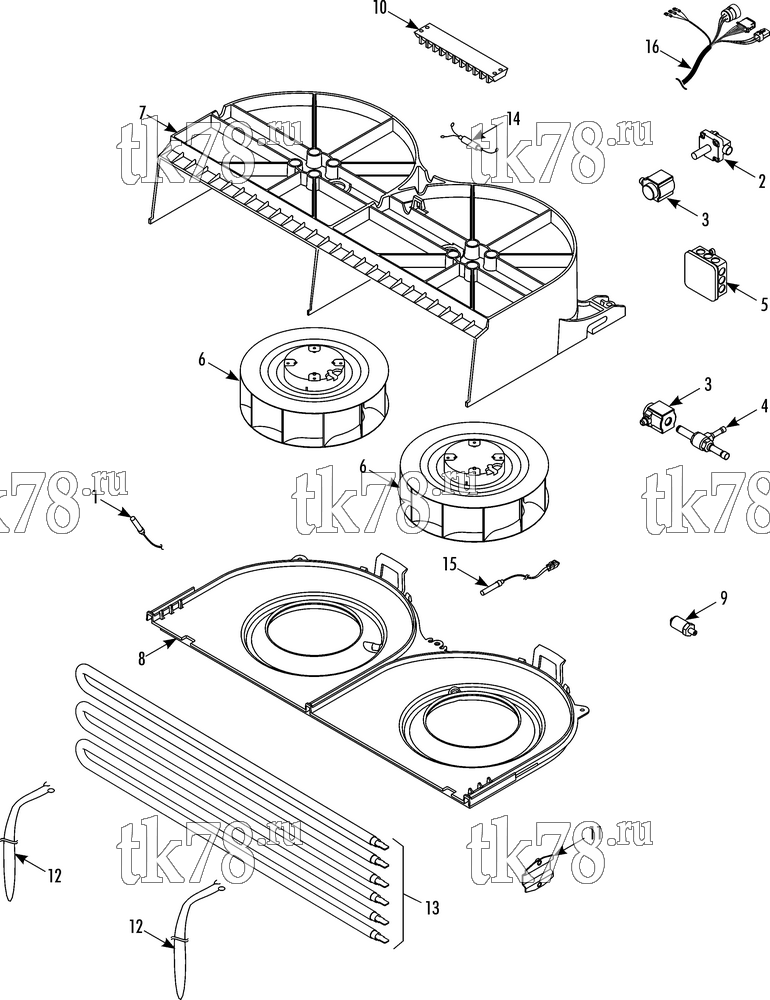

Установкa Thermo King CT-10 & CT-15 SR-3 схема ELECTRICAL COMPONENTS (S-2) – 269B8
Обновление от: 7/25/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-4445 | SENSOR - temperature | 1 | |
| 2 | 61-6174 | VALVE - solenoid, coolant 12V | 1 | |
| 3 | 42-649 | COIL (12V) | 2 | |
| 4 | 61-6461 | VALVE - expansion, electronic | 1 | |
| 5 | 92-3300 | BOX - junction | 1 | |
| 6 | 78-1718 | BLOWER - variable (12V) | 2 | |
| 55-9694 | SCREW - blower | 8 | ||
| 7 | 78-1251 | HOUSING - blower | 1 | |
| 8 | 78-1252 | COVER - blower | 1 | |
| 9 | 41-7960 | TRANSDUCER - discharge | 1 | |
| 42-2284 OEM | Трансдюсер, SB/SL-400/SL-400e/SLX/SLXe | 28 170 ₽ |
|
|
| 10-42-2284 | Трансдюсер, SB/SL-400/SL-400e/SLX/SLXe | 7 480 ₽ |
|
|
| 10 | 44-6110 | BOARD - terminal | 1 | |
| 55-9694 | SCREW - terminal board | 4 | ||
| 11 | 92-9094 | BRACKET | 1 | |
| 12 | 41-4795 | WIRE - resistance (7327 mm) | 1 | |
| 41-4796 | WIRE - resistance (6267 mm) | 1 | ||
| 13 | 45-2408 | HEATER | 1 | |
| 14 | 41-5687 | HARNESS - speed control | 1 | |
| 15 | 42-1181 | HARNESS - discharge sensor | 1 | |
| 16 | 42-1048 | HARNESS - evaporator 5M | 1 | |
| 42-1049 | HARNESS - evaporator 12M | 1 | ||
| 42-1050 | HARNESS - evaporator 17M | 1 |
