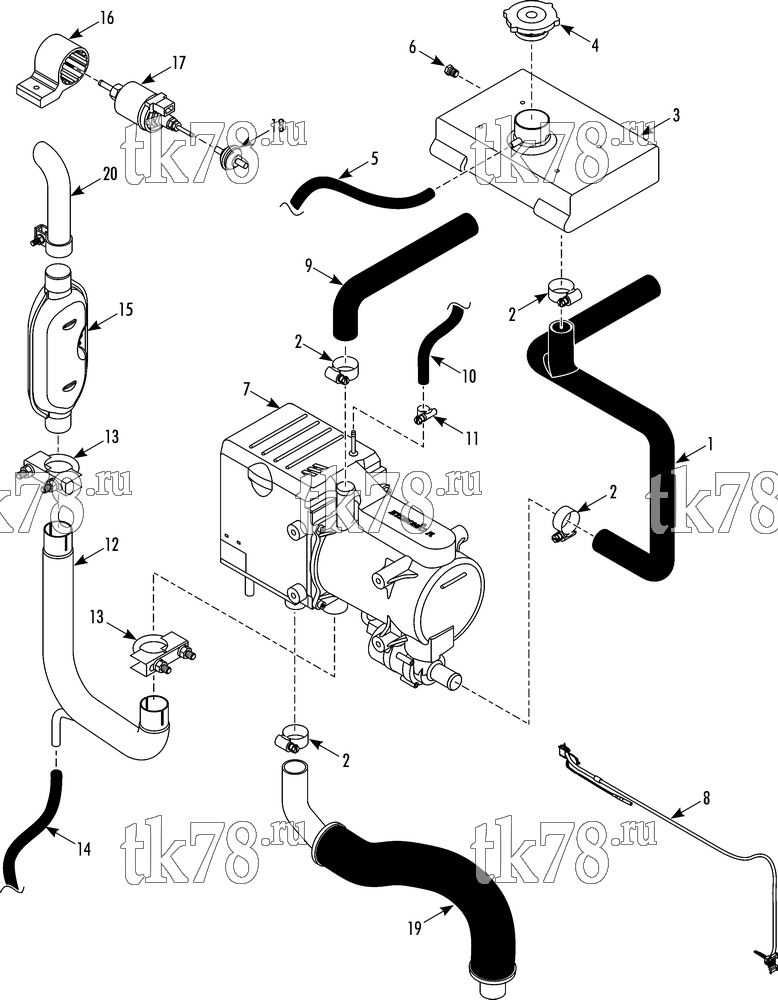

Установкa Thermo King CT-10 & CT-15 SR-3 схема DIESEL HEATER – 269B5
Обновление от: 8/7/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-8281 | HOSE - return (EPDM) | 1 | |
| 2 | 55-5002 | CLAMP - tube | 3 | |
| 3 | 11-7010 | TANK - expansion | 1 | |
| 55-1587 | SCREW - tank to frame | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 4 | 11-9242 | CAP - tank | 1 | |
|
10-11-9242 | Крышка радиатора 10 LBS | 2 370 ₽ |
|
| 5 | 98-8282 | HOSE - overflow (PVC) | 1 | |
| 55-2332 | BANDWRAP - hose | 1 | ||
| 6 | 55-3364 | PLUG | 1 | |
| 7 | 41-8879 | HEATER - diesel (12V) | 1 | |
| 41-9182 | PUMP - water (12V) | 1 | ||
| 55-7341 | SCREW - heater to bracket | 4 | ||
| 55-7342 | LOCKWASHER | 4 | ||
| 55-7085 | FLATWASHER | 4 | ||
| 8 | 42-1044 | HARNESS - heater | 1 | |
| 9 | 98-8283 | HOSE - outlet (EPDM) | 1 | |
| 10 | 98-8284 | HOSE - fuel | 1 | |
| 11 | 55-2796 | CLAMP - hose | 1 | |
| 12 | 93-884 | TUBE - exhaust | 1 | |
| 13 | 51-1897 | CLAMP - tube | 2 | |
| 14 | 98-8462 | HOSE - (1.6m) | 1 | |
| 55-2332 | BANDWRAP - hose | 1 | ||
| 15 | 12-940 | MUFFLER - heater | 1 | |
| 55-7172 | SCREW - muffler to frame | 1 | ||
| 55-7170 | LOCKWASHER | 1 | ||
| 55-7075 | FLATWASHER | 1 | ||
| 16 | 92-7753 | HOLDER - fuel pump | 1 | |
| 17 | 41-8923 | PUMP - diesel heater (12V) | 1 | |
| 44-9607 | CONNECTOR | 1 | ||
| 41-277 | TERMINAL - female | 2 | ||
| 18 | 13-1026 | FILTER - fuel, diesel heater | 1 | |
| 19 | 92-8223 | MUFFLER (air intake) - heater | 1 | |
| 20 | 11-6291 | TUBE - exhaust | 1 |
