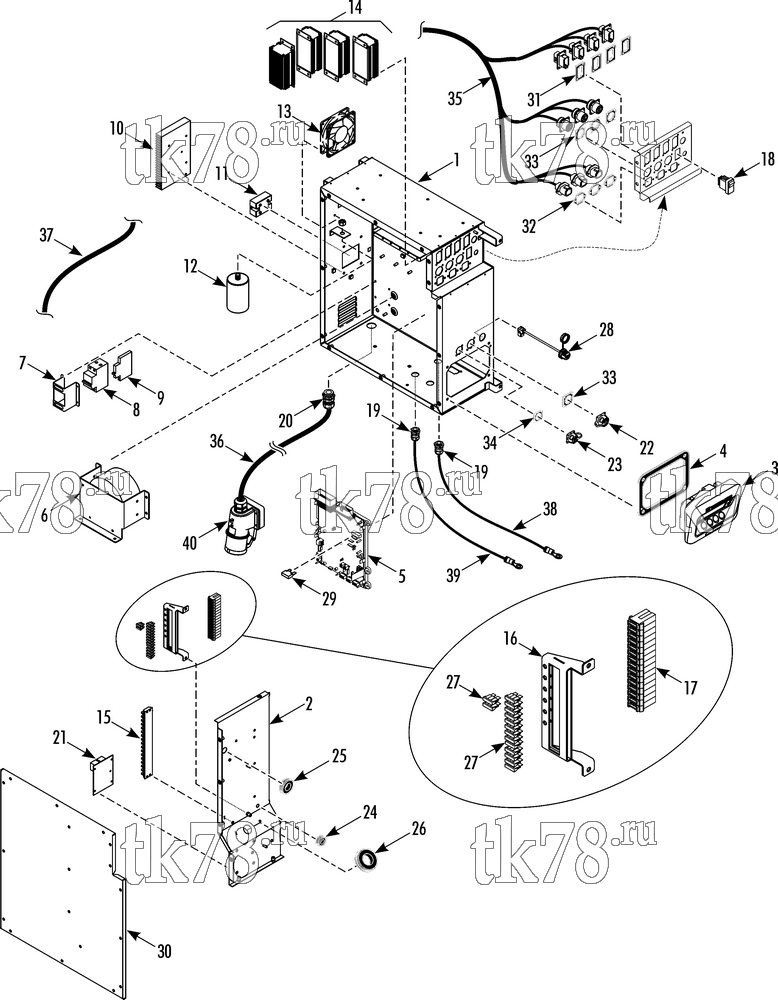

Установкa Thermo King CT-10 & CT-15 SR-3 схема CONTROL BOX CT-15 – 269B3
Обновление от: 7/25/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 93-885 | BOX - control | 1 | |
| 2 | 93-1024 | PANEL | 1 | |
| 3 | 45-2523 | CONTROLLER - HMI-3 (w/ gasket) | 1 | |
| 4 | 33-3628 | GASKET - bezel | 1 | |
| 5 | 45-2483 | BOARD - controller SR-3 | 1 | |
| 41-9304 | HARNESS - primary/ secondary, CT-15 | 1 | ||
| 6 | 42-1031 | TRANSFORMER | 1 | |
| 7 | 93-879 | BRACKET | 1 | |
| 8 | 42-1034 | BREAKER - circuit | 1 | |
| 9 | 42-1035 | BREAKER - circuit, auxiliary | 1 | |
| 10 | 42-1033 | HEATSINK | 1 | |
| 11 | 41-8883 | RECTIFIER, | 1 | |
| 12 | 41-8885 | CAPACITOR (100000 mf) | 1 | |
| 44-9925 | RESISTOR (2200 ohm) | 1 | ||
| 13 | 41-4826 | FAN (24V) | 1 | |
| 14 | 42-1045 | CHARGER - battery (24-12V) | 4 | |
| 15 | 44-6110 | BOARD - terminal | 1 | |
| 16 | 93-886 | BRACKET - fuseholder | 1 | |
| 17 | 41-8886 | FUSEHOLDER | 15 | |
| 18 | 41-8887 | SWITCH - rocker | 1 | |
| 19 | 55-5111 | GRIP - harness | 2 | |
| 20 | 55-6141 | GRIP - harness | 1 | |
| 21 | 45-2527 | BOARD - relay | 1 | |
| 22 | 92-3068 | CAP - dust (6 pin) | 1 | |
| 23 | 92-3067 | CAP - dust (5 pin) | 1 | |
| 24 | 33-314 | GROMMET (5/16 id) | 1 | |
| 25 | 33-1215 | GROMMET (1/2 id) | 1 | |
| 26 | 33-4097 | GROMMET (5/8 id) | 1 | |
| 27 | 41-1932 | FUSE (1 amp) | 2 | |
| 41-2978 | FUSE (20 amp) | 13 | ||
| 30-41-2978 | Предохранитель 32V 20А | 500 ₽ |
|
|
| 28 | 42-164 | CABLE - USB | 1 | |
| 29 | 41-3666 | FUSE (60 amp) | 1 | |
| 30 | 93-887 | COVER | 1 | |
| 99-7336 | STRIP - neoprene | A/R | ||
| 51-718 | SCREW - cover | A/R | ||
| 55-5970 | WASHER | A/R | ||
| 31 | 33-5131 | GASKET | 5 | |
| 32 | 33-5132 | GASKET | 3 | |
| 33 | 33-3867 | GASKET | 4 | |
| 34 | 33-3868 | GASKET | 1 | |
| 35 | 42-1046 | HARNESS - control | 1 | |
| 36 | 42-1042 | HARNESS - power | 1 | |
| 37 | 42-1043 | HARNESS - control | 1 | |
| 38 | 41-8901 | HARNESS - negative | 1 | |
| 39 | 42-1047 | HARNESS - positive | 1 | |
| 40 | 41-8762 | RECEPTACLE - power | 1 |
