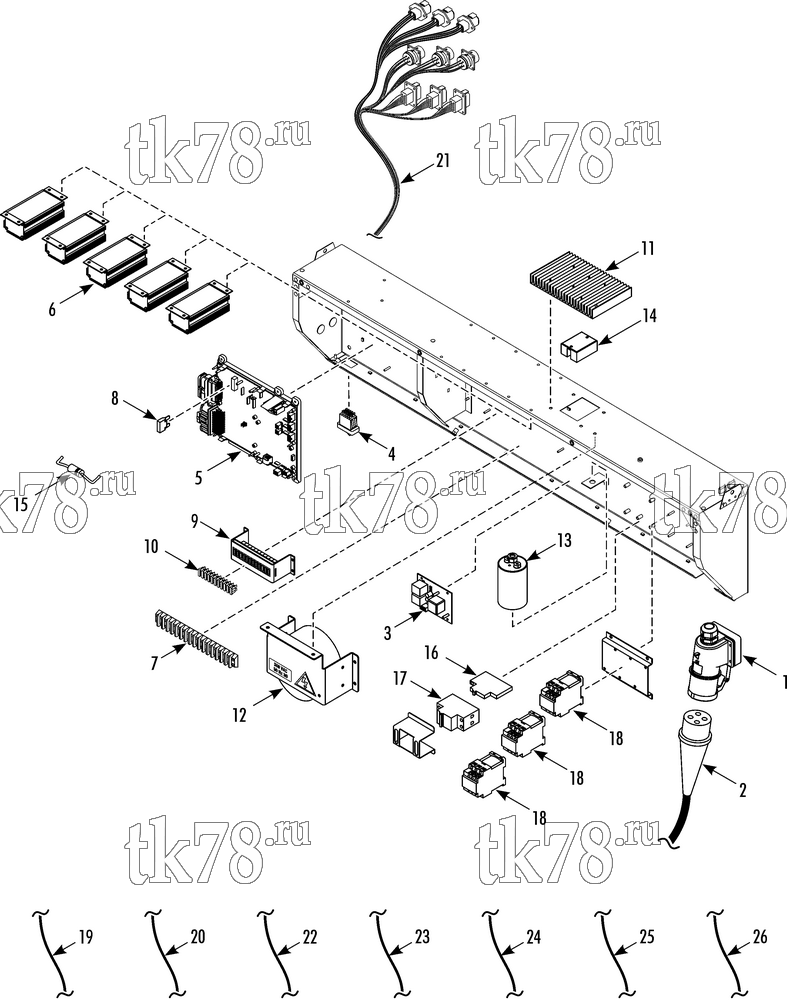

Установкa Thermo King CT-10 & CT-15 SR-3 схема CONTROL BOX CT-10 – 269A9
Обновление от: 8/12/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-8762 | RECEPTACLE - power (380/3/50) | 1 | |
| 2 | 41-520 | PLUG - power (380/3/50) | 1 | |
| 3 | 45-2527 | BOARD - relay | 1 | |
| 4 | 41-8887 | SWITCH - rocker | 1 | |
| 5 | 45-2483 | BOARD - controller SR-3 | 1 | |
| 6 | 42-1032 | CONVERTOR | 5 | |
| 7 | 44-6110 | BOARD - terminal | 1 | |
| 8 | 41-3666 | FUSE (60 amp) | 1 | |
| 9 | 41-8886 | FUSEHOLDER | 12 | |
| 10 | 41-1932 | FUSE (1 amp) | 1 | |
| 44-9758 | FUSE (10 amp) | 5 | ||
|
10-44-9758 | Предохранитель 10 ампер 10 шт | 1 860 ₽ |
|
| 41-2978 | FUSE (20 amp) | 5 | ||
| 30-41-2978 | Предохранитель 32V 20А | 500 ₽ |
|
|
| 11 | 42-1033 | HEATSINK | 1 | |
| 12 | 42-1031 | TRANSFORMER | 1 | |
| 13 | 41-8885 | CAPACITOR | 1 | |
| 14 | 41-8883 | RECTIFIER | 1 | |
| 15 | 44-9925 | RESISTOR (2200 ohm) | 1 | |
| 44-7245 | TERMINAL - ring (red, #10, 22-16 ga) | 2 | ||
| 16 | 42-1034 | BREAKER - circuit | 1 | |
| 17 | 42-1035 | BREAKER - circuit, auxiliary | 1 | |
| 18 | 41-5629 | CONTACTOR | 3 | |
| 19 | 41-5813 | HARNESS - HMI | 1 | |
| 20 | 42-1037 | HARNESS - power | 1 | |
| 21 | 42-1038 | HARNESS - control | 1 | |
| 22 | 42-1039 | HARNESS - high voltage | 1 | |
| 23 | 42-1040 | HARNESS - heater link | 1 | |
| 24 | 42-1041 | HARNESS - battery | 1 | |
| 25 | 42-1103 | HARNESS - heater to mcb | 1 | |
| 26 | 42-1104 | HARNESS - contactor to ground | 1 |
