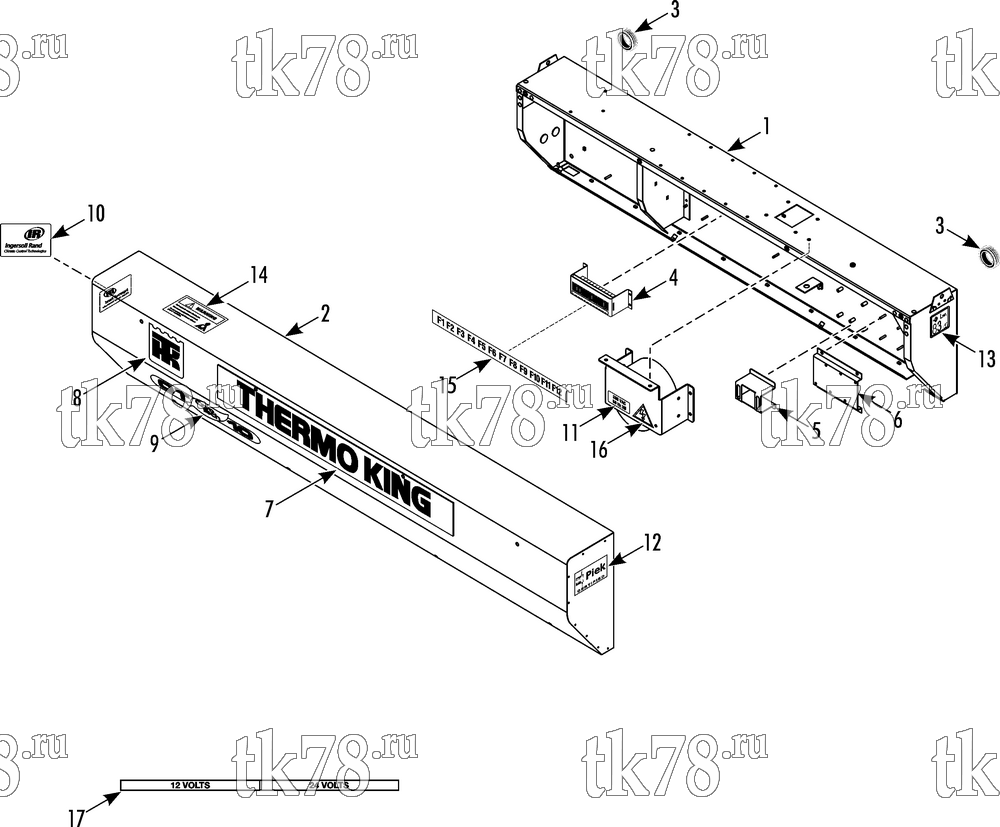

Установкa Thermo King CT-10 & CT-15 SR-3 схема FRAME & COVERS – 269A0
Обновление от: 8/8/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 93-878 | BOX - control | 1 | |
| 2 | 42-1036 | COVER - box | 1 | |
| 3 | 33-624 | GROMMET (1-1/2 id) | 2 | |
| 33-623 | GROMMET (2-1/8 id) | 1 | ||
| 4 | 92-7748 | BRACKET - fuseholder | 1 | |
| 5 | 93-879 | BRACKET | 1 | |
| 6 | 93-881 | BRACKET - contactor | 1 | |
| 7 | 91-9587 | NAMEPLATE - Thermo King | 1 | |
| 8 | 91-4253 | NAMEPLATE - TK Logo | 1 | |
| 9 | 92-8224 | NAMEPLATE - CT-10 | 1 | |
| 10 | 92-6773 | NAMEPLATE - IR Logo | 1 | |
| 11 | 99-9700 | NAMEPLATE - Voltage 380/3/50 | 1 | |
| 12 | 92-8226 | NAMEPLATE - PIEK | 1 | |
| 13 | 92-3303 | NAMEPLATE - Sound Power | 1 | |
| 14 | 92-2409 | NAMEPLATE - Warning Asphyxiation | 1 | |
| 15 | 92-7749 | NAMEPLATE - Fuses | 1 | |
| 16 | 99-7834 | NAMEPLATE - Caution | 1 | |
| 17 | 93-888 | NAMEPLATE - Power 12/24V | 1 |
