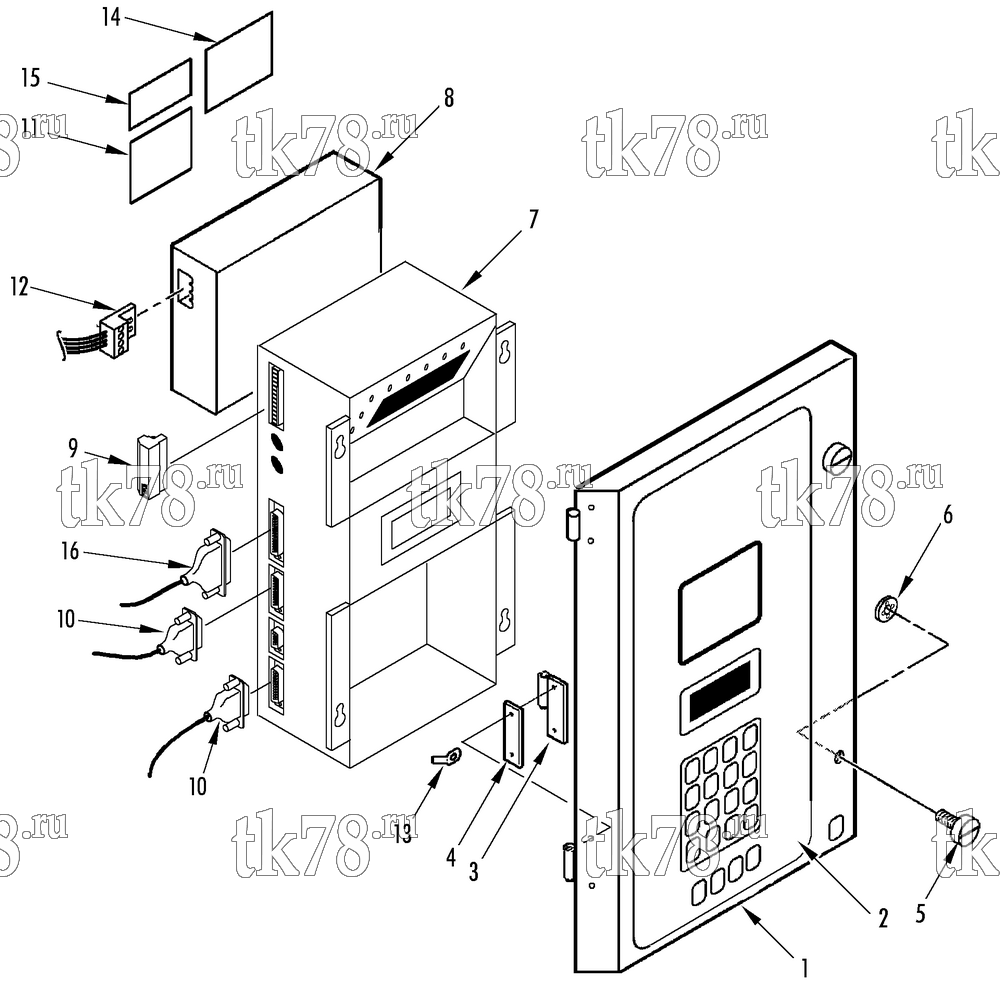

Установкa Thermo King CSR 40SLPS-148 схема CONTROL BOX DOOR (mPC 3000 w/ RMM) – 157D7
Обновление от: 8/14/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 91-9380 | DOOR - control box | 1 | |
| 2 | 41-4142 | KEYPAD (MP3000) | 1 | |
| 3 | 91-9381 | HINGE - door | 2 | |
| 55-7407 | SCREW - hinge | 4 | ||
| 55-9444 | WASHER (nylon) | 4 | ||
| 55-7033 | WASHER | 8 | ||
| 55-7034 | NUT | 4 | ||
| 4 | 55-9392 | INSULATOR - hinge | 2 | |
| 5 | 55-9393 | SCREW - door | 2 | |
| 6 | 55-8919 | RETAINER - screw | 2 | |
| 7 | 845-2214 | CONTROLLER (MP3000) | 1 | |
| 55-7034 | NUT - controller | 4 | ||
| 55-8919 | LOCKWASHER | 2 | ||
| 55-9444 | WASHER - insulating (nylon) | 4 | ||
| 8 | 45-1898 | MODEM - RMM (option 098158, 098159) | 1 | |
| 9 | 41-3335 | CONNECTOR (7-pin) | 1 | |
| 10 | 41-3602 | CABLE - connecting (25-pin, No. 1 & 3) | 2 | |
| 11 | 91-9976 | NAMEPLATE - Relay Board | 1 | |
| 12 | 41-3603 | CABLE - connecting (RMM, option 098158, 098159) | 1 | |
| 13 | 55-9395 | ADAPTER - push-on | 1 | |
| 51-1419 | NUT | 1 | ||
| 14 | 91-9382 | NAMEPLATE - Controller Warning | 1 | |
| 15 | 91-9383 | NAMEPLATE - Phase Select | 1 | |
| 16 | 41-2835 | CABLE - connecting (No. 2) | 1 |
