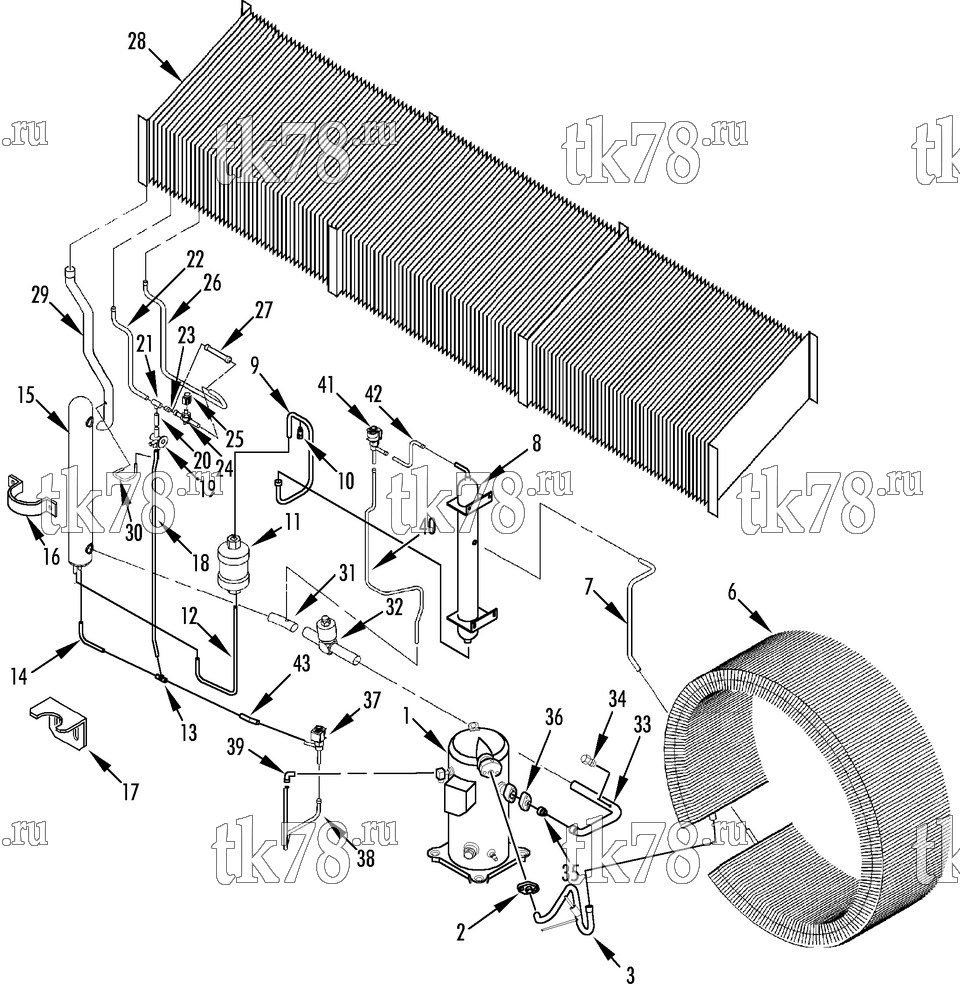

Установкa Thermo King CSR 40SL-143 схема REFRIGERATION COMPONENTS - FLANGED COMPRESSOR – 158B5
Обновление от: 8/25/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-796 | COMPRESSOR - scroll (see 158B3) | 1 | |
| 2 | 61-176 | FLANGE - discharge | 1 | |
| 3 | 61-175 | TUBE - elbow to valve | 1 | |
| 4 | Not Used | |||
| 5 | Not Used | |||
| 6 | 60-285 | COIL - condenser (see 155D4) | 1 | |
| 7 | 61-168 | TUBE - coil to receiver tank | 1 | |
| 8 | 67-1792 | TANK - receiver | 1 | |
| 55-6994 | SCREW - receiver | 4 | ||
| 55-7075 | FLATWASHER | 8 | ||
| 55-9207 | WASHER (nylon) | 4 | ||
| 55-7042 | NUT | 4 | ||
| 9 | 61-169 | TUBE - receiver to dehydrator | 1 | |
| 10 | 66-9428 | VALVE - relief | 1 | |
| 11 | 60-284 | KIT - dehydrator | 1 | |
| 61-786 | DEHYDRATOR | 1 | ||
| 55-4390 | HANGER - dehydrator | 1 | ||
| 12 | 61-164 | TUBE - dehydrator to exchanger | 1 | |
| 13 | 55-3251 | TEE | 1 | |
| 14 | 66-9932 | TUBE - exchanger to tee | 1 | |
| 15 | 67-1028 | HEAT EXCHANGER | 1 | |
| 16 | 91-8468 | CLAMP - exchanger | 1 | |
| 17 | 91-8469 | BRACKET - exchanger | 1 | |
| 55-7172 | SCREW - bracket | 4 | ||
| 55-7075 | FLATWASHER | 4 | ||
| 18 | 66-9024 | TUBE - tee to expansion valve | 1 | |
| 19 | 61-443 | VALVE - expansion | 1 | |
| 20 | 66-9034 | TUBE - expansion valve to tee | 1 | |
| 21 | 55-2296 | TEE | 1 | |
| 22 | 61-174 | TUBE - tee to evaporator | 1 | |
| 23 | 66-9035 | TUBE - liquid | 1 | |
| 24 | 60-324 | VALVE - solenoid (dehumidity, see 147G12, optional) | 1 | |
| 25 | 41-3301 | COIL - valve | 1 | |
| 26 | 66-9029 | TUBE - valve to evaporator | 1 | |
| 27 | 66-9159 | TUBE (replaces valve) | 1 | |
| 28 | 67-1654 | COIL - evaporator | 1 | |
| 55-6993 | SCREW (25 mm) | 8 | ||
| 55-9541 | FLATWASHER (ins 8.4 mm) | 14 | ||
| 55-6988 | FLATWASHER (8.4 mm id) | 14 | ||
| 29 | 66-9020 | TUBE - exchanger to evaporator | 1 | |
| 30 | 66-9036 | TUBE - equalizer | 1 | |
| 31 | 66-9420 | TUBE - exchanger to valve | 1 | |
| 32 | 66-7865 | VALVE - modulation (w/ harness connectors) | 1 | |
| 67-7981 | VALVE (see 123A8) | 1 | ||
| 33 | 61-173 | TUBE - modulation valve to bushing | 1 | |
| 34 | 66-9842 | VALVE (Schrader) | 1 | |
| 11-7777 | CORE - valve | 1 | ||
| 35 | 66-6022 | BUSHING | 1 | |
| 36 | 61-172 | FLANGE - suction | 1 | |
| 37 | 60-327 | VALVE - solenoid (liquid injection) | 1 | |
| 40-782 | COIL - valve | 1 | ||
| 38 | 66-9026 | TUBE - valve to compressor | 1 | |
| 39 | 55-3250 | ELBOW | 1 | |
| 40 | 66-9027 | TUBE - coupling to valve | 1 | |
| 41 | 60-328 | VALVE - solenoid | 1 | |
| 41-3592 | COIL - valve | 1 | ||
| 42 | 66-9427 | TUBE - receiver to valve | 1 | |
| 43 | 66-9023 | TUBE - tee to valve | 1 |
