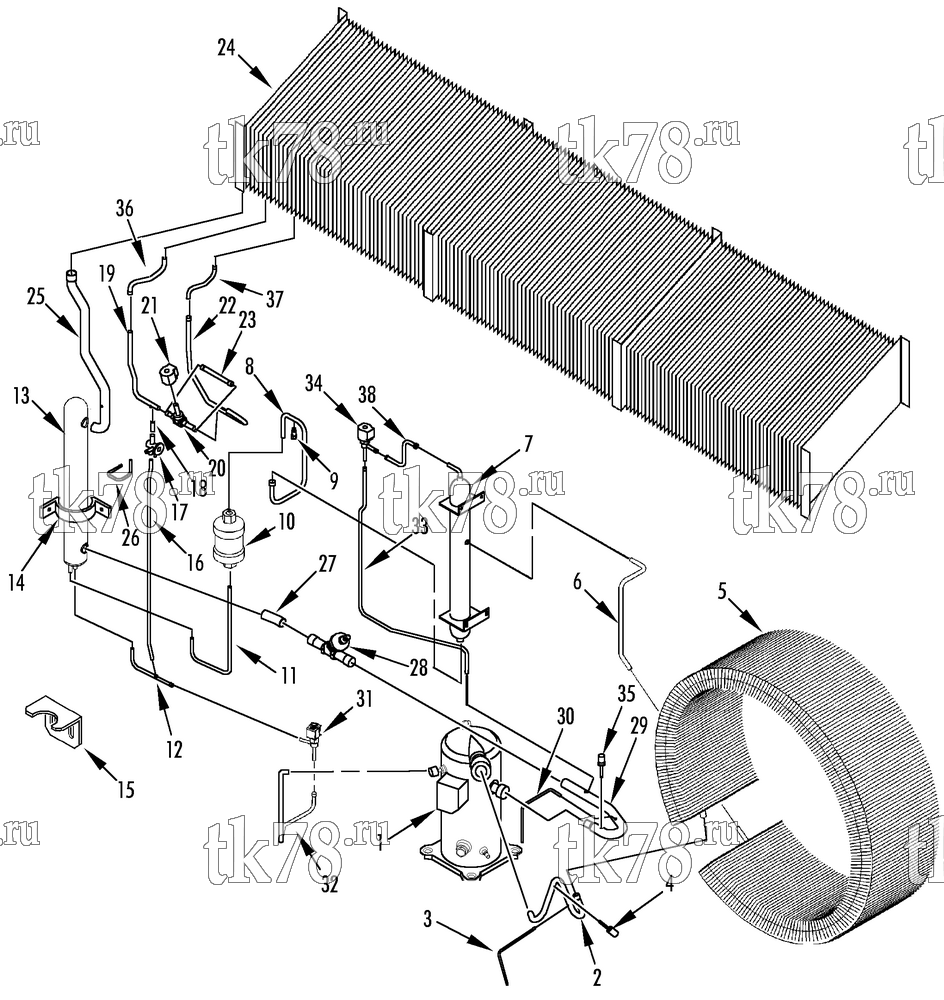

Установкa Thermo King CSR 40PS Top Air Discharge схема REFRIGERATION COMPONENTS - HERMETIC w/ STEPPER VALVE – 160F1
Обновление от: 2/8/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-671 | COMPRESSOR - scroll (hermetic, see 152A4) | 1 | |
| 2 | 61-166 | TUBE - elbow to valve | 1 | |
| 3 | 61-184 | TUBE - discharge process | 1 | |
| 4 | 41-3394 | SWITCH - hpco | 1 | |
| 5 | 60-285 | COIL - condenser (see 155D4) | 1 | |
| 67-1652 | COIL - condenser (optional water cooled) | 1 | ||
| 33-2949 | GASKET (15 mm, pvc) | A/R | ||
| 33-2950 | GASKET (10 mm, pvc) | A/R | ||
| 55-6994 | SCREW - coil | 7 | ||
| 55-7075 | LOCKWASHER | 7 | ||
| 55-9054 | FLATWASHER | 7 | ||
| 6 | 61-168 | TUBE - coil to receiver tank | 1 | |
| 7 | 67-1792 | TANK - receiver | 1 | |
| 55-6994 | SCREW - tank | 4 | ||
| 55-7075 | FLATWASHER | 8 | ||
| 55-9207 | WASHER (nylon) | 4 | ||
| 55-7042 | NUT | 4 | ||
| 8 | 61-169 | TUBE - receiver to dehydrator | 1 | |
| 9 | 66-9428 | VALVE - relief | 1 | |
| 10 | 60-284 | KIT - dehydrator | 1 | |
| 61-786 | DEHYDRATOR | 1 | ||
| 55-8993 | SCREW - dehydrator | 1 | ||
| 55-7075 | FLATWASHER | 2 | ||
| 55-7042 | NUT | 1 | ||
| 55-4390 | HANGER - dehydrator | 1 | ||
| 55-6994 | SCREW - hanger | 1 | ||
| 55-7075 | FLATWASHER | 1 | ||
| 11 | 61-164 | TUBE - dehydrator to exchanger | 1 | |
| 12 | 61-162 | TUBE - exchanger to tee | 1 | |
| 13 | 67-1028 | HEAT EXCHANGER | 1 | |
| 14 | 91-8468 | CLAMP - exchanger | 1 | |
| 15 | 91-8469 | BRACKET - exchanger | 1 | |
| 55-7172 | SCREW - bracket | 4 | ||
| 55-7075 | FLATWASHER | 4 | ||
| 16 | 61-163 | TUBE - tee to expansion valve | 1 | |
| 17 | 61-443 | VALVE - expansion | 1 | |
| 18 | 66-9034 | TUBE - expansion valve to tee | 1 | |
| 19 | 61-318 | TUBE - tee to evaporator | 1 | |
| 20 | 66-9032 | VALVE - solenoid (dehumidity, see 147G12, optional) | 1 | |
| 60-323 | KIT - repair (Danfoss) | 1 | ||
| 21 | 41-2399 | COIL - liquid line valve | 1 | |
| 22 | 61-319 | TUBE - valve to evaporator | 1 | |
| 23 | 66-9159 | TUBE (replaces valve) | 1 | |
| 24 | 67-1673 | COIL - evaporator | 1 | |
| 55-6993 | SCREW - coil | 8 | ||
| 55-9541 | FLATWASHER (ins 8.4 mm) | 14 | ||
| 55-6988 | FLATWASHER (8.4 mm id) | 14 | ||
| 25 | 61-320 | TUBE - exchanger to evaporator | 1 | |
| 26 | 66-9036 | TUBE - equalizer | 1 | |
| 27 | 66-9933 | TUBE - exchange to valve | 1 | |
| 28 | 66-9934 | VALVE - stepper | 1 | |
| 29 | 61-182 | TUBE - modulation valve to compressor | 1 | |
| 30 | 61-183 | TUBE - suction process | 1 | |
| 31 | 60-327 | VALVE - solenoid (liquid injection) | 1 | |
| 41-3301 | COIL | 1 | ||
| 32 | 61-159 | TUBE - valve to compressor | 1 | |
| 33 | 66-9936 | TUBE - coupling to valve | 1 | |
| 34 | 60-328 | VALVE - liquid injection | 1 | |
| 35 | 41-4003 | SWITCH - lpco | 1 | |
| 36 | 61-291 | TUBE - transition (w/ swages) | 1 | |
| 37 | 61-292 | TUBE - transition (w/o swages) | 1 | |
| 38 | 61-167 | TUBE - tank to valve | 1 |
