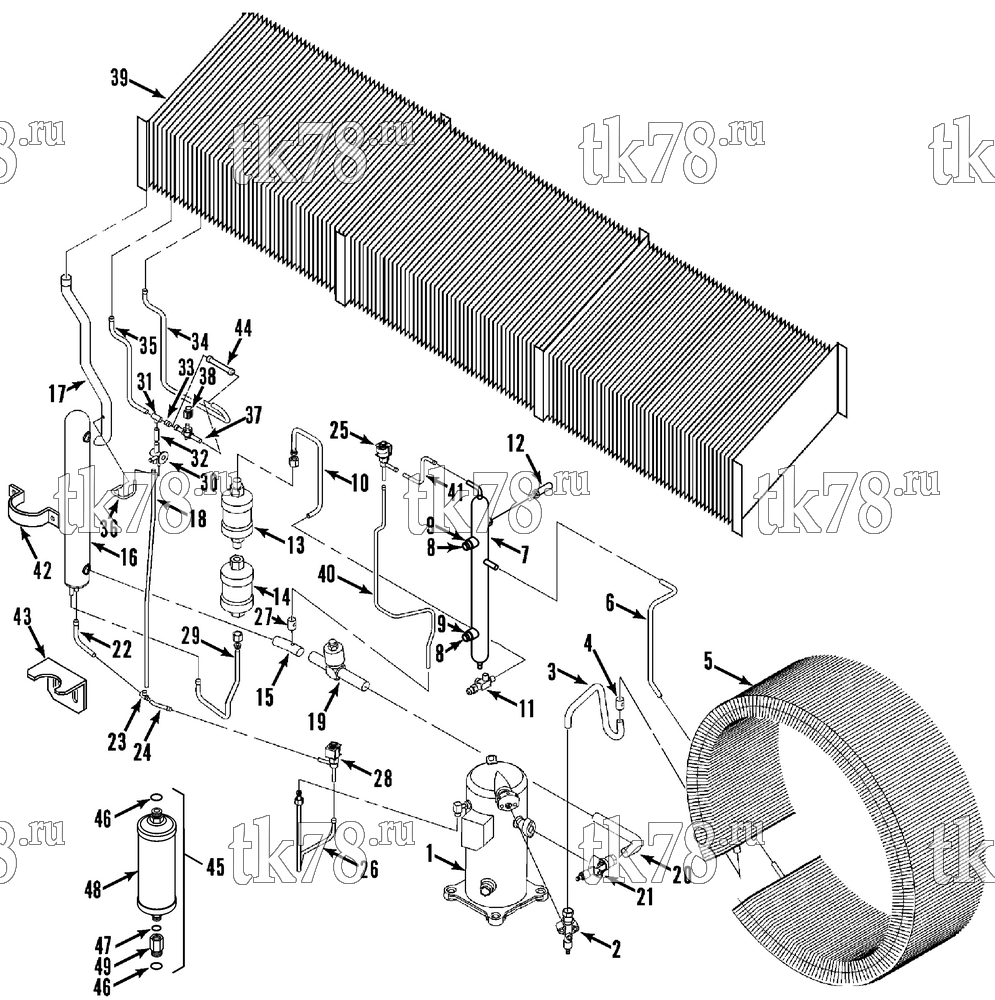

Установкa Thermo King CSR 40 схема REFRIGERATION COMPONENTS – 144F3
Обновление от: 4/7/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-796 | COMPRESSOR - scroll (see 144F12) | 1 | |
| 66-9004 | VALVE | 1 | ||
| 2 | 66-3942 | VALVE - discharge | 1 | |
| 3 | 66-9181 | TUBE - valve to coil | 1 | |
| 4 | 55-3680 | COUPLING | 1 | |
| 5 | 60-285 | COIL - condenser (see 147B4) | 1 | |
| 6 | 66-9016 | TUBE - coil to receiver tank | 1 | |
| 7 | 67-1537 | TANK - receiver | 1 | |
| 55-6994 | SCREW - receiver (20 mm) | 2 | ||
| 55-8316 | SCREW - receiver (40 mm) | 2 | ||
| 55-9053 | SPACER | 1 | ||
| 55-7075 | FLATWASHER | 8 | ||
| 55-8877 | WASHER (nylon) | 4 | ||
| 55-7042 | NUT | 4 | ||
| 8 | 66-8811 | SIGHT GLASS | 2 | |
| 9 | 33-3007 | GASKET | 2 | |
| 33-3007 OEM | О-ринг сервисного клапана, X426/430/640 | 130 ₽ |
|
|
| 10 | 66-9033 | TUBE - receiver to dehydrator | 1 | |
| 55-8950 | NUT | 1 | ||
| 55-8951 | SHOULDER | 1 | ||
| 11 | 66-6603 | VALVE - angle | 1 | |
| 66-2170 | CAP - valve | 1 | ||
| 12 | 66-7392 | VALVE - relief | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 66-6610 | FITTING - highside | 1 | ||
| 13 | 66-8473 | FILTER (see item 45) | 1 | |
| 33-1015 | O-RING (3/8) | 1 | ||
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 55-8917 | HANGER - filter | 1 | ||
| 91-8470 | SPACER - hanger | 1 | ||
| 14 | 66-8767 | DEHYDRATOR (see item 45) | 1 | |
| 55-4390 | HANGER - dehydrator | 1 | ||
| 15 | 66-9018 | TUBE - exchanger to valve | 1 | |
| 16 | 67-1028 | HEAT EXCHANGER | 1 | |
| 17 | 66-9020 | TUBE - exchanger to evaporator | 1 | |
| 18 | 66-9024 | TUBE - tee to expansion valve | 1 | |
| 19 | 66-7865 | VALVE - modulation (w/ harness connectors) | 1 | |
| 66-7981 | VALVE (see 123A8) | 1 | ||
| 20 | 66-9021 | TUBE - modulation valve to suction valve | 1 | |
| 21 | 66-1916 | VALVE - suction (see 144F12) | 1 | |
|
10-66-1916 | Клапан всасывающий (Suction) | 13 270 ₽ |
|
| 22 | 66-9022 | TUBE - exchanger to tee | 1 | |
| 23 | 55-6218 | TEE | 1 | |
| 24 | 66-9023 | TUBE - tee to valve | 1 | |
| 25 | 60-328 | VALVE - solenoid | 1 | |
| 41-767 | COIL | 1 | ||
| 26 | 66-9026 | TUBE - valve to compressor | 1 | |
| 27 | 66-4341 | COUPLING | 1 | |
| 28 | 60-327 | VALVE - solenoid (liquid injection) | 1 | |
| 41-767 | COIL | 1 | ||
| 29 | 66-9019 | TUBE - dehydrator to exchanger | 1 | |
| 55-8950 | NUT | 1 | ||
| 55-8951 | SHOULDER | 1 | ||
| 30 | 61-443 | VALVE - expansion | 1 | |
| 31 | 55-2296 | TEE | 1 | |
| 32 | 66-9034 | TUBE - expansion valve to tee | 1 | |
| 33 | 66-9035 | TUBE - liquid | 1 | |
| 34 | 66-9029 | TUBE - valve to evaporator | 1 | |
| 35 | 66-9030 | TUBE - tee to evaporator | 1 | |
| 36 | 66-9036 | TUBE - equalizer | 1 | |
| 37 | 66-9032 | VALVE - solenoid (dehumidity, see 147G12, optional) | 1 | |
| 60-323 | KIT - repair (Danfoss) | 1 | ||
| 38 | 41-2399 | COIL - liquid line valve | 1 | |
| 39 | 67-1532 | COIL - evaporator (CSR 40, units w/ 3 evap fans) | 1 | |
| 67-1558 | COIL - evaporator (CSR 40, units w/ 2 evap fans) | 1 | ||
| 67-1504 | COIL - evaporator (CSR 40SL) | 1 | ||
| 55-6993 | SCREW (25 mm) | 8 | ||
| 55-9541 | FLATWASHER (ins 8.4 mm id) | 14 | ||
| 55-6988 | FLATWASHER (8.4 mm id) | 14 | ||
| 40 | 66-9027 | TUBE - coupling to valve | 1 | |
| 41 | 66-9037 | TUBE - receiver to valve | 1 | |
| 42 | 91-8468 | CLAMP - exchanger | 1 | |
| 43 | 91-8469 | BRACKET - exchanger | 1 | |
| 55-7172 | SCREW - bracket | 4 | ||
| 55-7075 | FLATWASHER | 4 | ||
| 44 | 66-9159 | TUBE (replaces valve) | 1 | |
| 45 | 60-272 | KIT - dehydrator/oil filter conversion | 1 | |
| 46 | 33-566 | O-RING (1/2) | 2 | |
| 47 | 33-1015 | O-RING (3/8 id) | 1 | |
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 48 | 66-9307 | DEHYDRATOR/OIL FILTER | 1 | |
| 49 | 61-1243 | ADAPTER | 1 |
