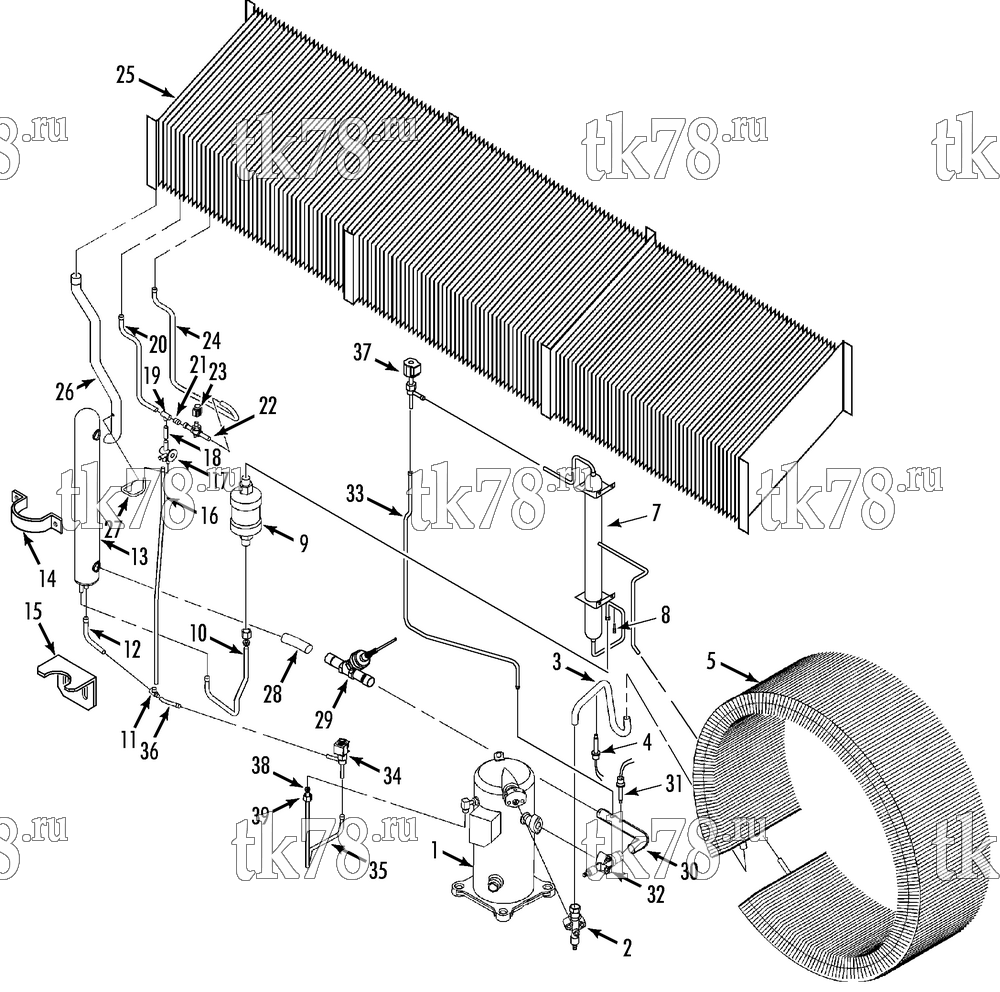

Установкa Thermo King CSR 40 mP3000 схема REFRIGERATION (FLANGED COMPRESSOR w/ STEPPER VALVE) – 155D5
Обновление от: 6/25/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-796 | COMPRESSOR - scroll (see 152A4) | 1 | |
| 2 | 66-3942 | VALVE - discharge | 1 | |
| 3 | 66-9930 | TUBE - discharge | 1 | |
| 4 | 41-3394 | SWITCH - hpco | 1 | |
| 5 | 60-285 | COIL - condenser (see 147B4) | 1 | |
| 33-2949 | GASKET (15 mm x 25 mm, pvc) | A/R | ||
| 33-2950 | GASKET (10 mm x 15 mm, pvc) | A/R | ||
| 55-6994 | SCREW - coil | 7 | ||
| 55-7075 | FLATWASHER | 7 | ||
| 55-9054 | WASHER (nylon) | 7 | ||
| 6 | Not Used | |||
| 7 | 67-1792 | TANK - receiver | 1 | |
| 55-6994 | SCREW - receiver | 4 | ||
| 55-7075 | FLATWASHER | 8 | ||
| 55-9207 | WASHER (nylon) | 4 | ||
| 55-7042 | NUT | 4 | ||
| 8 | 66-9428 | VALVE - relief | 1 | |
| 9 | 66-9307 | DEHYDRATOR (o-ring seal) | 1 | |
| 33-3007 | GASKET | 2 | ||
| 33-3007 OEM | О-ринг сервисного клапана, X426/430/640 | 130 ₽ |
|
|
| 55-4390 | HANGER - dehydrator | 1 | ||
| 10 | 66-9931 | TUBE - filter to drier | 1 | |
| 11 | 55-3251 | TEE | 1 | |
| 12 | 66-9932 | TUBE - exchanger to tee | 1 | |
| 13 | 67-1028 | HEAT EXCHANGER | 1 | |
| 14 | 91-8468 | CLAMP - exchanger | 1 | |
| 15 | 91-8469 | BRACKET - exchanger | 1 | |
| 55-7172 | SCREW - bracket | 2 | ||
| 55-7075 | FLATWASHER | 2 | ||
| 16 | 66-9024 | TUBE - tee to expansion valve | 1 | |
| 17 | 61-443 | VALVE - expansion | 1 | |
| 18 | 66-9034 | TUBE - expansion valve to tee | 1 | |
| 19 | 55-2296 | TEE | 1 | |
| 20 | 66-9030 | TUBE - tee to evaporator | 1 | |
| 21 | 66-9035 | TUBE - liquid | 1 | |
| 22 | 66-9032 | VALVE - solenoid (dehumidity, see 146E5) | 1 | |
| 60-323 | KIT - repair (Danfoss) | 1 | ||
| 23 | 41-3301 | COIL - valve | 1 | |
| 24 | 66-9029 | TUBE - valve to evaporator | 1 | |
| 25 | 67-1558 | COIL - evaporator (units w/ 2 evap fans) | 1 | |
| 67-1614 | COIL - evaporator (CSR 20SL, w/ 3 evaporator fans) | 1 | ||
| 55-6993 | SCREW (25 mm) | 8 | ||
| 55-9541 | FLATWASHER (ins 8.4 mm) | 14 | ||
| 55-6988 | FLATWASHER (8.4 mm id) | 14 | ||
| 26 | 66-9020 | TUBE - exchanger to evaporator | 1 | |
| 27 | 66-9036 | TUBE - equalizer | 1 | |
| 28 | 66-9933 | TUBE - exchanger to valve | 1 | |
| 29 | 66-9934 | VALVE - stepper | 1 | |
| 30 | 66-9935 | TUBE - control valve | 1 | |
| 31 | 41-4003 | SWITCH - lpco | 1 | |
| 32 | 66-1916 | VALVE - suction | 1 | |
|
10-66-1916 | Клапан всасывающий (Suction) | 13 270 ₽ |
|
| 33 | 66-9936 | TUBE - solenoid valve | 1 | |
| 34 | 60-327 | VALVE - solenoid (liquid injection, Alco) | 1 | |
| 41-3301 | COIL - valve | 1 | ||
| 35 | 66-9937 | TUBE - valve to compressor | 1 | |
| 36 | 66-9938 | TUBE - tee to solenoid | 1 | |
| 37 | 60-328 | VALVE - solenoid | 1 | |
| 38 | 55-8268 | SHOULDER - o-ring seal | 1 | |
| 39 | 55-8269 | NUT - o-ring seal | 1 |
