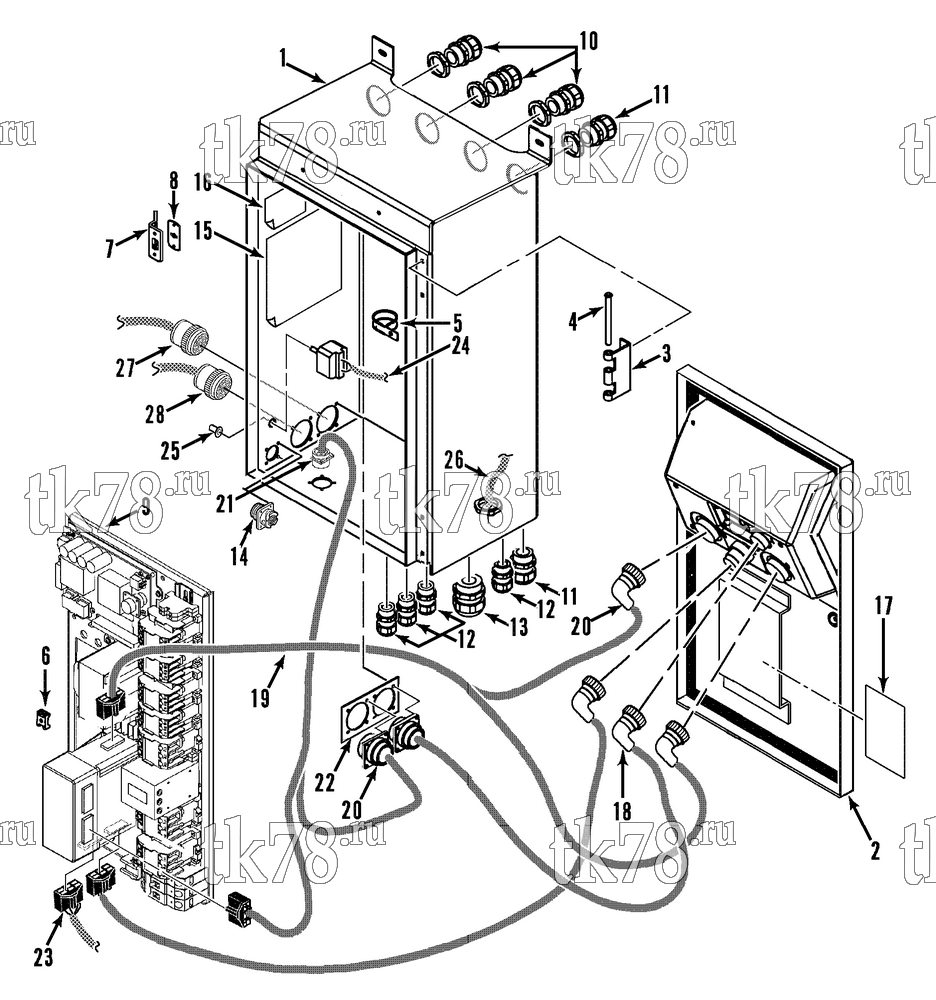

Установкa Thermo King CSR 40 for PIL схема CONTROL BOX (CSR 40) – 143D1
Обновление от: 7/31/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-5201 | BOX - control | 1 | |
| 55-7172 | SCREW - control box | 4 | ||
| 55-8893 | FLATWASHER | 4 | ||
| 55-9054 | WASHER (nylon) | 4 | ||
| 2 | NSS | DOOR - control box (see 145F13) | 1 | |
| 3 | 91-8144 | HINGE - control box | 2 | |
| 55-7407 | SCREW - hinge | 4 | ||
| 55-7033 | LOCKWASHER | 8 | ||
| 55-7034 | NUT | 4 | ||
| 4 | 91-8256 | PIN - hinge | 2 | |
| 5 | 55-6147 | CLAMP - harness | 1 | |
| 6 | 99-3427 | MOUNT - cable tie (small) | 3 | |
| 55-7829 | SCREW - mount | 3 | ||
| 55-8410 | LOCKWASHER | 6 | ||
| 55-7864 | NUT | 3 | ||
| 99-6093 | MOUNT - cable tie (large) | 2 | ||
| 55-7862 | SCREW - mount | 4 | ||
| 55-7368 | FLATWASHER | 2 | ||
| 55-7665 | NUT | 2 | ||
| 7 | 91-8143 | BRACKET - latch | 1 | |
| 55-7663 | SCREW - bracket | 2 | ||
| 55-7368 | FLATWASHER | 1 | ||
| 55-7369 | LOCKWASHER | 2 | ||
| 8 | 505-180 | RECEPTACLE - cover | 1 | |
| 55-3010 | RIVET - receptacle | 2 | ||
| 9 | NSS | TRAY - high voltage (see 143D2) | 1 | |
| 55-7867 | SCREW - high voltage tray | 4 | ||
| 55-7033 | FLATWASHER | 6 | ||
| 55-7171 | LOCKWASHER | 4 | ||
| 10 | 33-3215 | GROMMET | 3 | |
| 11 | 55-5257 | CONNECTOR - liquid tite | 2 | |
| 12 | 55-5900 | CONNECTOR - liquid tite | 4 | |
| 33-1435 | GROMMET - bumper | 2 | ||
| 33-2753 | GROMMET (0.25 id) | 1 | ||
| 13 | 55-5885 | CONNECTOR - liquid tite | 1 | |
| 14 | 33-2982 | GROMMET (pvc) | 1 | |
| 15 | 99-7834 | NAMEPLATE - Caution | 1 | |
| 16 | 91-8553 | NAMEPLATE - controller | 1 | |
| 17 | 91-8551 | SCHEMATIC | 1 | |
| 18 | 41-2375 | HARNESS - controller (power) | 1 | |
| 19 | 41-2374 | HARNESS - controller (I/O) | 1 | |
| 41-747 | LOCKRING | 1 | ||
| 55-7617 | CLAMP (plastic) | 1 | ||
| 20 | 41-2376 | HARNESS - controller (sensors) | 1 | |
| 41-748 | LOCKRING | 1 | ||
| 55-7618 | CLAMP - strain relief | 1 | ||
| 55-8382 | SCREW - connector | 12 | ||
| 55-8410 | FLATWASHER | 24 | ||
| 55-7864 | NUT | 12 | ||
| 21 | 41-2175 | HARNESS - main | 1 | |
| 22 | 33-2952 | GASKET - connector | 1 | |
| 23 | 41-2689 | HARNESS - output module | 1 | |
| 24 | 41-2170 | HARNESS - power switch | 1 | |
| 44-6560 | SWITCH - power | 1 | ||
| 25 | 44-739 | BOOT - switch | 1 | |
| 26 | 40-781 | CABLE - power | 1 | |
| 27 | 41-2349 | HARNESS - main | 1 | |
| 28 | 41-2350 | HARNESS - sensors | 1 |
