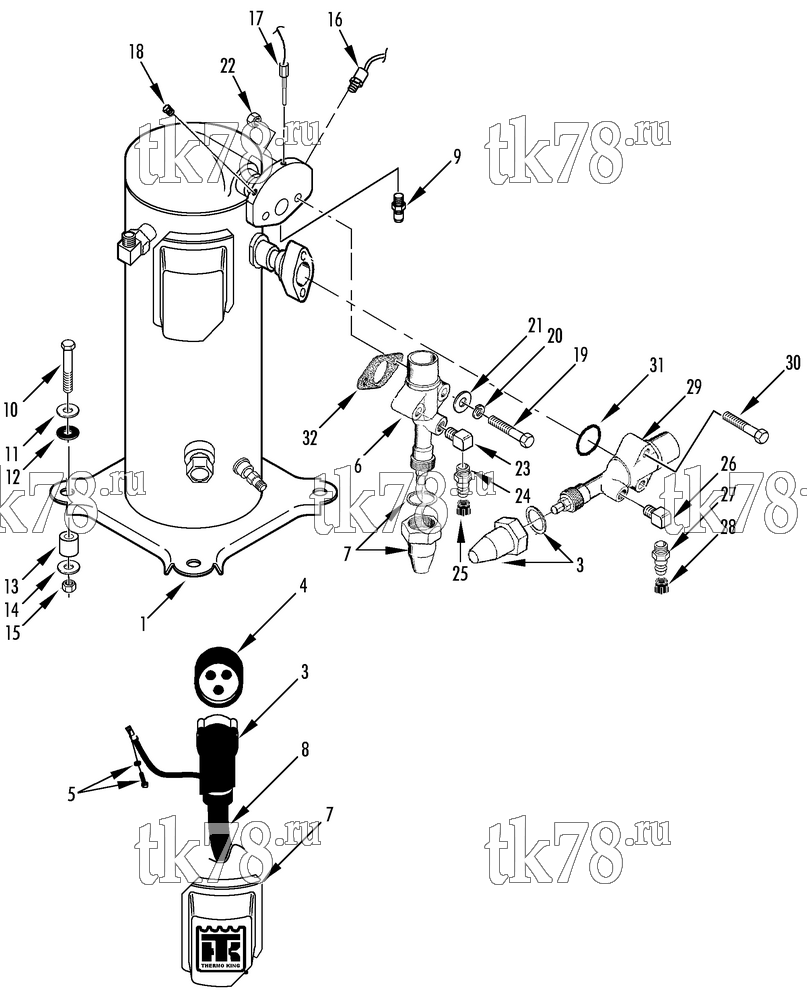

Установкa Thermo King CSR 20SL MP3000 схема COMPRESSOR GROUP (w/ SERVICE VALVES) – 155D13
Обновление от: 9/11/01
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-796 | COMPRESSOR - scroll (CSR 40) | 1 | |
| 2 | 91-9021 | COVER - terminal box | 1 | |
| 3 | 40-779 | KIT - gasket & grease | 1 | |
| 4 | 33-2951 | GASKET - power connector | 1 | |
| 33-2979 | SEALER - silicone grease pack | 1 | ||
| 5 | 55-8994 | SCREW - ground | 1 | |
| 55-8995 | WASHER - ground | 1 | ||
| 6 | 66-3942 | VALVE - discharge | 1 | |
| 7 | 66-3015 | CAP - valve (brass, incl gasket) | 1 | |
| P-17-10806-10 | Крышка сервисного клапана, латунь, 05K/05G/06D | 3 000 ₽ |
|
|
|
10-66-3015 | Крышка сервисного клапана, латунь, X426/430/640 | 3 000 ₽ |
|
| 8 | 40-782 | KIT - power cord | 1 | |
| 9 | 11-2886 | VALVE | 1 | |
| 55-7213 | BODY (brass) | 1 | ||
| 11-7777 | CORE - valve | 1 | ||
| 55-5672 | CAP - valve | 1 | ||
| 10 | 55-8911 | SCREW - compressor | 4 | |
| 11 | 55-8912 | FLATWASHER (13 mm) | 4 | |
| 12 | 55-9012 | WASHER - vibration damper | 4 | |
| 13 | 55-9013 | SPACER | 4 | |
| 14 | 55-7360 | FLATWASHER (12 mm) | 4 | |
| 15 | 55-8992 | NUT | 4 | |
| 16 | 41-4004 | SWITCH - hpco | 1 | |
| 17 | 41-2447 | SENSOR - head temperature | 1 | |
| 18 | 55-3364 | PLUG | 2 | |
| 19 | 55-9171 | SCREW - valve | 2 | |
| 20 | 55-6999 | LOCKWASHER | 2 | |
| 21 | 55-9172 | WASHER - sealing | 2 | |
| 22 | 55-7344 | NUT | 2 | |
| 23 | 66-7812 | ADAPTER - high side | 1 | |
| 24 | 66-6610 | FITTING - highside | 1 | |
| 25 | 66-7182 | CAP - fitting | 1 | |
| 26 | 66-8054 | ADAPTER (lowside) | 1 | |
| 27 | 66-6607 | FITTING - lowside | 1 | |
| 28 | 66-7183 | CAP - fitting | 1 | |
| 29 | 66-1916 | VALVE - suction | 1 | |
|
10-66-1916 | Клапан всасывающий (Suction) | 13 270 ₽ |
|
| 30 | 55-3565 | SCREW - valve | 2 | |
| 55-6988 | FLATWASHER | 2 | ||
| 55-7342 | LOCKWASHER | 2 | ||
| 31 | 33-727 | O-RING | 1 | |
| 32 | 33-2805 | GASKET - valve | 1 | |
|
33-2805 OEM | Прокладка коллектора армированная, X426/430 | 800 ₽ |
|
|
10-33-2805 | Прокладка коллектора армированная, X426/430 | 620 ₽ |
|
|
10-33-2546 | Прокладка коллектора, X426/430 | 340 ₽ |
|
|
PP-33-2805 | Прокладка коллектора, X426/430 | 50 ₽ |
|
