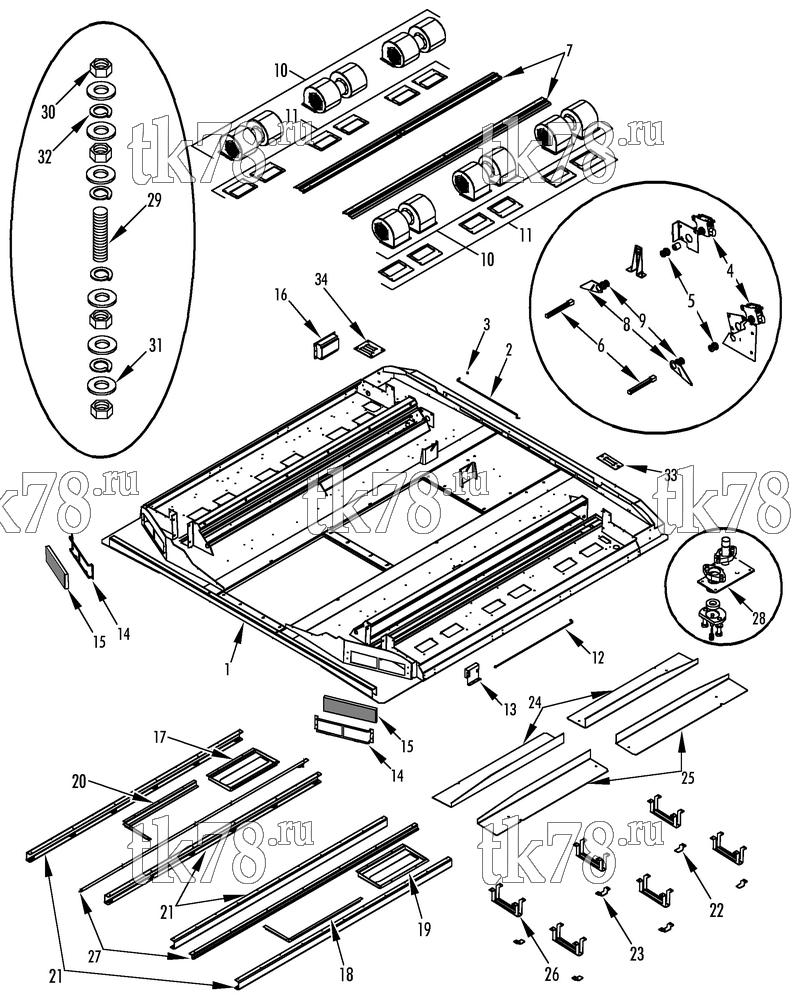

Установкa Thermo King CRTI-1004 схема BASE COMPONENTS – 149F9
Обновление от: 4/21/04
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-5419 | BASE - weldment | 1 | |
| 2 | 91-9145 | ROD - cover | 1 | |
| 55-3458 | PIN - cotter (rod) | 1 | ||
| 55-6995 | FLATWASHER | 2 | ||
| 3 | 83-258 | GROMMET - rod | 1 | |
| 4 | 41-3255 | SERVOMOTOR - damper | 2 | |
| 55-7664 | SCREW - motor | 6 | ||
| 55-7368 | FLATWASHER | 6 | ||
| 55-7031 | LOCKWASHER | 6 | ||
| 55-7866 | NUT - captive | 6 | ||
| 5 | 91-9160 | COUPLING - damper | 2 | |
| 6 | 91-9159 | AXIS - damper | 2 | |
| 7 | 98-5422 | DAMPER - fresh air | 2 | |
| 55-9188 | SCREW - damper | 12 | ||
| 8 | 91-9158 | AXIS - damper | 4 | |
| 9 | 91-9142 | BEARING - axis | 6 | |
| 10 | 78-1296 | BLOWER & MOTOR - assembly | 6 | |
| 55-7664 | SCREW - blower | 24 | ||
| 55-7368 | FLATWASHER | 24 | ||
| 55-7031 | LOCKWASHER | 24 | ||
| 55-7866 | NUT - captive | 24 | ||
| 11 | 91-9182 | INSULATION - blower (5 ft) | A/R | |
| 12 | 91-9146 | ROD - cover | 2 | |
| 91-9151 | BRACKET - rod | 2 | ||
| 91-7386 | CLAMP - rod | 3 | ||
| 13 | 41-2757 | CONTROLLER - speed | 6 | |
| 14 | 91-9161 | HOLDER - air filter | 5 | |
| 55-5130 | RIVET - holder | 20 | ||
| 15 | 91-9201 | FILTER - air | 5 | |
| 16 | 41-3543 | CONTROLLER - motor | 1 | |
| 17 | 91-9157 | CHANNEL - spacer | 1 | |
| 18 | 91-9154 | FRAME - distance | 1 | |
| 19 | 91-9156 | CHANNEL - spacer | 1 | |
| 20 | 91-9155 | FRAME - distance | 1 | |
| 21 | 91-9144 | BRACKET - mounting | 4 | |
| 55-9194 | NUT - captive | 24 | ||
| 22 | 91-9176 | BRACKET - coil | 4 | |
| 23 | 91-9147 | BRACKET - coil | 2 | |
| 55-7036 | SCREW - bracket | 8 | ||
| 55-7033 | FLATWASHER | 8 | ||
| 55-7404 | LOCKWASHER | 8 | ||
| 24 | 98-5420 | CHANNEL - distributor | 2 | |
| 25 | 98-5421 | CHANNEL - distributor | 2 | |
| 26 | 91-9148 | BRACKET - air grille | 6 | |
| 27 | 98-5423 | SUPPORT - insulation | 2 | |
| 28 | 91-9143 | FLANGE - assembly | 1 | |
| 55-7213 | ADAPTER | 1 | ||
| 11-7777 | CORE - valve | 1 | ||
| 55-5672 | CAP - valve | 1 | ||
| 55-5472 | SCREW - flange | 2 | ||
| 55-7072 | FLATWASHER | 2 | ||
| 29 | 55-9191 | STUD - terminal | 1 | |
| 30 | 55-9189 | NUT | 4 | |
| 31 | 55-448 | FLATWASHER | 6 | |
| 32 | 55-3672 | LOCKWASHER | 4 | |
| 33 | 91-9152 | BRACKET - terminal | 1 | |
| 34 | 91-9153 | BRACKET - terminal | 1 |
