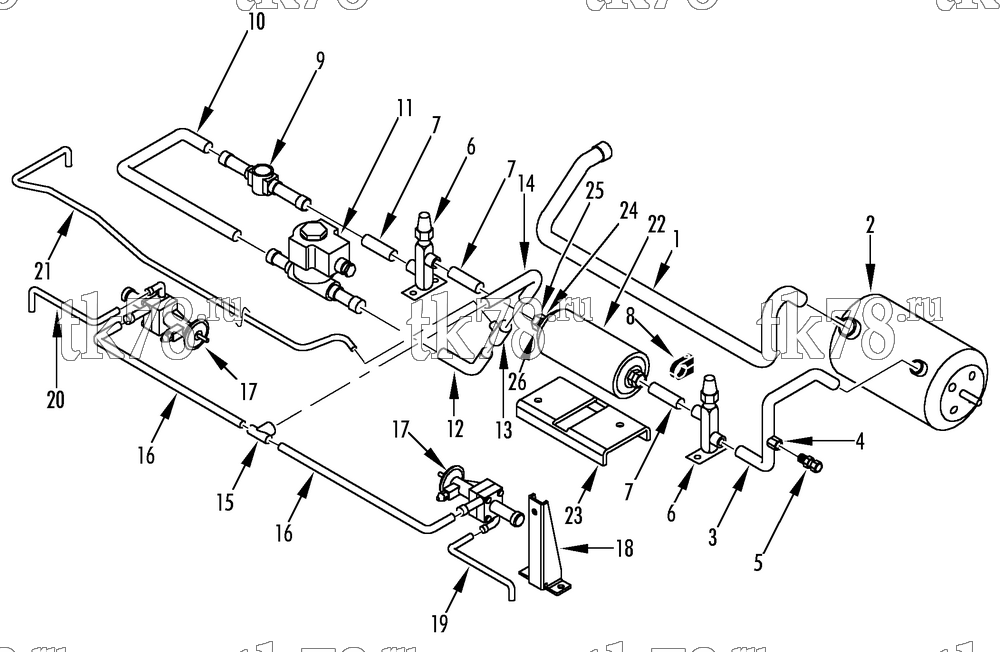

Установкa Thermo King CRTI-1004 схема REFRIGERATION COMPONENTS – 149E13
Обновление от: 7/21/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 66-9357 | TUBE - condenser to receiver | 1 | |
| 2 | 67-1520 | TANK - receiver | 1 | |
| 55-7825 | NUT - tank | 2 | ||
| 55-7085 | FLATWASHER | 2 | ||
| 55-7342 | LOCKWASHER | 2 | ||
| 3 | 66-9358 | TUBE - receiver to valve | 1 | |
| 4 | 55-9183 | FITTING - saddle | 1 | |
| 5 | 66-9356 | VALVE - relief | 1 | |
| 6 | 66-2104 | VALVE - shutoff | 2 | |
| 66-2170 | CAP - valve | 1 | ||
| 55-6994 | SCREW - valve | 4 | ||
| 7 | 66-9360 | TUBE - dehydrator to valve | 3 | |
| 8 | 91-758 | CLAMP - tube (0.625 dia) | 2 | |
| 55-7013 | CLAMP - tube (0.875 dia) | 2 | ||
| 91-7386 | CLAMP - tube (6 mm dia) | 3 | ||
| 9 | 66-9354 | SIGHT GLASS | 1 | |
| 10 | 66-9362 | TUBE - sight glass to valve | 1 | |
| 11 | 66-9353 | VALVE - solenoid | 1 | |
| 41-2776 | HARNESS - valve (for connectors see 115D14) | 1 | ||
| 12 | 66-9363 | TUBE - solenoid to tee | 1 | |
| 13 | 55-6507 | TEE (5/8 x 5/8 x 3/8) | 1 | |
| 14 | 66-9361 | TUBE - tee to tee | 1 | |
| 15 | 55-1252 | TEE (5/8 x 1/2 x 1/2) | 1 | |
| 16 | 66-9364 | TUBE - tee to expansion valve | 2 | |
| 17 | 61-444 | VALVE - expansion (before 4/01) | 2 | |
| 61-444 | VALVE - expansion (4/01 & after) | 1 | ||
| 18 | 91-9149 | BRACKET - expansion valve | 2 | |
| 19 | 66-9359 | TUBE - equalizer | 1 | |
| 20 | 66-9515 | TUBE - equalizer | 1 | |
| 21 | 66-9365 | TUBE - tee to adapter | 1 | |
| 22 | 66-9352 | DEHYDRATOR - filter/drier | 1 | |
| 66-9352 OEM | Фильтр-осушитель | 6 350 ₽ |
|
|
| 23 | 91-9150 | BRACKET - dehydrator | 1 | |
| 24 | 33-1223 | O-RING - dehydrator | 2 | |
| 25 | 55-6356 | SHOULDER - dehydrator | 2 | |
| 26 | 55-6396 | NUT - shoulder | 2 |
