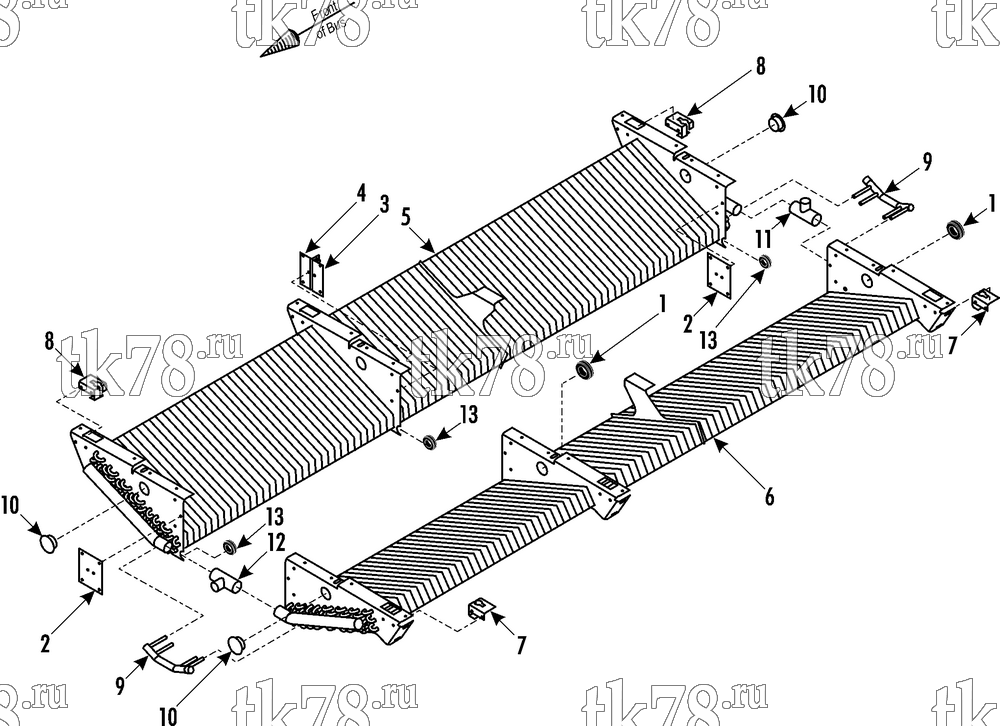

Установкa Thermo King CRT-II O580 Standard & Tropic 1004 схема CONDENSER COIL – 175F6
Обновление от: 9/4/02
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 33-629 | GROMMET (1 id) | 2 | |
| 2 | 92-110 | PLATE | 2 | |
| 55-3101 | RIVET - plate | 12 | ||
| 3 | 92-664 | ANGLE - center (roadside) | 1 | |
| 55-7170 | LOCKWASHER | 2 | ||
| 55-7075 | FLATWASHER | 2 | ||
| 55-6994 | SCREW - angle | 2 | ||
| 55-3101 | RIVET | 3 | ||
| 4 | 92-665 | ANGLE - center (curbside) | 1 | |
| 55-7373 | NUT - captive | 2 | ||
| 55-3101 | RIVET | 3 | ||
| 5 | 67-1872 | COIL - condenser (curbside, Tropic) | 1 | |
| 67-1694 | COIL - condenser (curbside, Standard) | 1 | ||
| 6 | 67-1873 | COIL - condenser (roadside, Tropic) | 1 | |
| 67-1695 | COIL - condenser (roadside, Standard) | 1 | ||
| 7 | 92-112 | BRACKET | 2 | |
| 55-3101 | RIVET | 4 | ||
| 8 | 92-663 | BRACKET | 2 | |
| 55-3101 | RIVET | 4 | ||
| 9 | 61-1774 | TUBE - to coil (Tropic) | 2 | |
| 10 | 55-117 | PLUG | 3 | |
| 11 | 55-9517 | TEE (1-1/8 x 1-1/8 x 7/8) | 1 | |
| 12 | 55-6174 | TEE (7/8 x 7/8 x 7/8, Standard) | 1 | |
| 55-9517 | TEE (1-1/8 x 1-1/8 x 7/8, Tropic) | 1 | ||
| 13 | 33-367 | GROMMET (0.625 id) | 3 |
