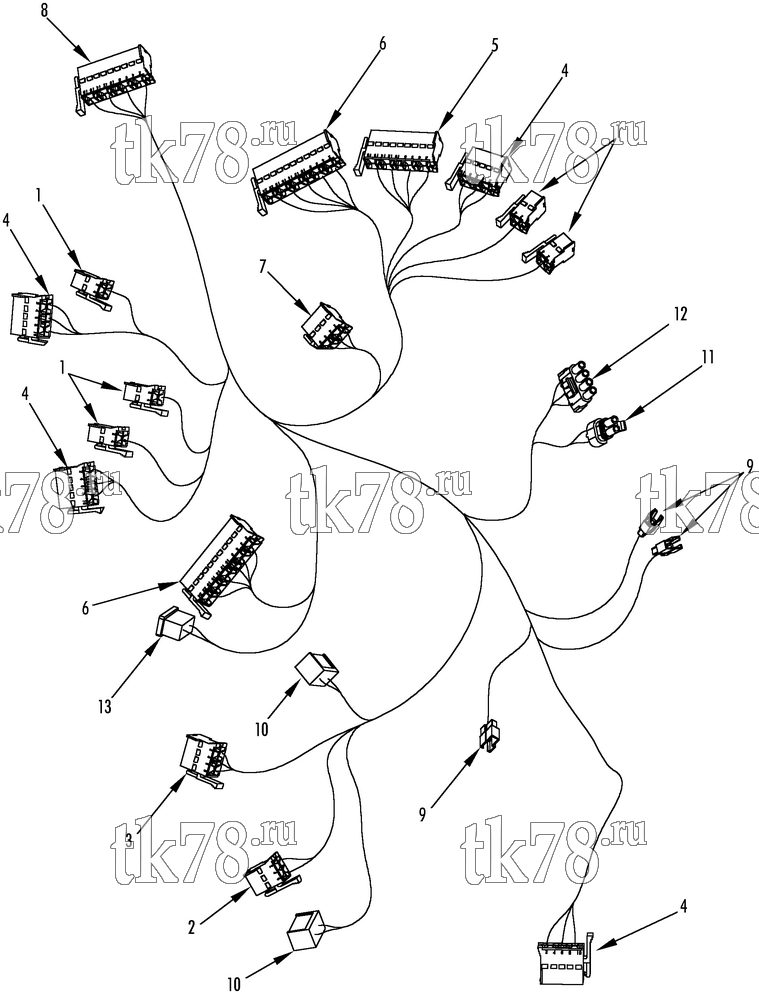

Установкa Thermo King CRT-II IC, UK-Millenn R134a, 1004 схема HARNESS BUS A/C for CRT-II UK Millenn – 164E5
Обновление от: 6/18/01
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 41-4185 | HARNESS - bus A/C (UK Millenn) | 1 | ||
| 1 | 41-2769 | CONNECTOR (4-pin, female) | 5 | |
| 2 | 41-2767 | CONNECTOR (6-pin, female) | 1 | |
| 3 | 41-3860 | TERMINAL - connector (8-pin, female) | 2 | |
| 4 | 41-3855 | TERMINAL - connector (10-pin, female) | 4 | |
| 5 | 41-3856 | TERMINAL - connector (18-pin, female) | 1 | |
| 6 | 41-3858 | TERMINAL - connector (22-pin, female) | 2 | |
| 7 | 41-3861 | RECEPTACLE - housing (8 way) | 1 | |
| 8 | 41-3856 | TERMINAL - connector (18-pin, female) | 1 | |
| 9 | 41-3493 | CONNECTOR - housing | 3 | |
| 10 | 41-3862 | RECEPTACLE - housing (6-pin) | 2 | |
| 11 | 44-5838 | CONNECTOR - tower (2-pin) | 1 | |
| 12 | 44-7881 | CONNECTOR - tower (4-pin) | 1 | |
| 13 | 41-3967 | HOUSING (6-pin tab) | 1 |
