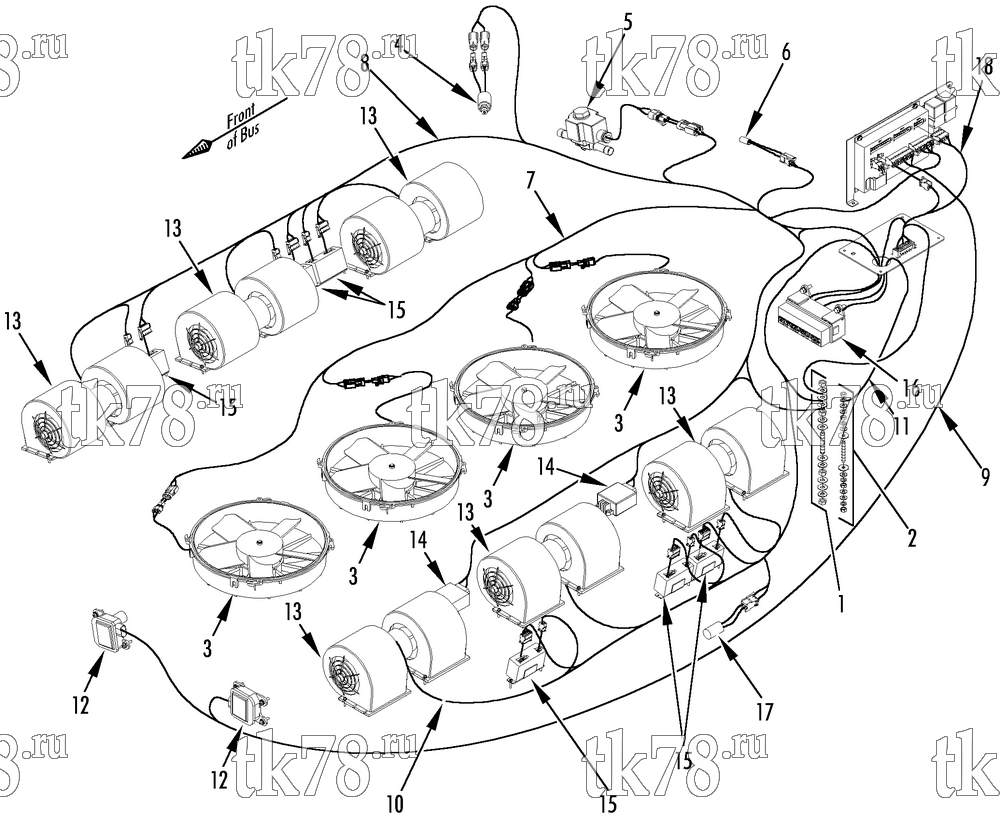

Установкa Thermo King CRT-II IC, UK-Millenn R134a, 1004 схема ELECTRICAL COMPONENTS - 1004 (24V) – 164E2
Обновление от: 6/11/04
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 55-9191 | STUD - negative (M10) | 1 | |
| 55-3672 | LOCKWASHER (internal tooth) | 6 | ||
| 55-448 | FLATWASHER | 4 | ||
| 55-5989 | NUT | 4 | ||
| 2 | 55-9367 | STUD - positive | 1 | |
| 55-8631 | WASHER (nylon w/ shoulder) | 1 | ||
| 55-8693 | WASHER (nylon) | 1 | ||
| 55-3238 | LOCKWASHER (internal tooth) | 4 | ||
| 55-8955 | FLATWASHER | 6 | ||
| 305-1653 | NUT | 4 | ||
| 3 | 78-1344 | FAN - condenser (24VDC) | 4 | |
| 4 | 41-3831 | SWITCH - hpco | 1 | |
| 5 | 66-9353 | VALVE - solenoid (see 164D0) | 1 | |
| 41-3574 | COIL - valve | 1 | ||
| 6 | 41-2777 | SENSOR - ambient | 1 | |
| 7 | 41-3832 | HARNESS - condenser | 1 | |
| 44-5835 | CONNECTOR - shroud (2 terminal) | 5 | ||
| 41-3857 | TERMINAL - connector (8-pin, female) | 2 | ||
| 8 | 41-4181 | HARNESS - evaporator (right) | 1 | |
| 44-5763 | DIODE - solenoid valve | 1 | ||
| 44-5835 | CONNECTOR - solenoid valve | 1 | ||
| 41-2769 | CONNECTOR (4-pin, female) | 4 | ||
| 41-3855 | TERMINAL - connector (10-pin, female) | 3 | ||
| 9 | 41-3835 | HARNESS - air dampers | 1 | |
| 41-2768 | CONNECTOR (6-pin, female) | 2 | ||
| 41-3858 | TERMINAL - connector (22-pin, female) | 1 | ||
| 10 | 41-3834 | HARNESS - evaporator (left) | 1 | |
| 41-2769 | CONNECTOR (4-pin, female) | 4 | ||
| 41-3855 | TERMINAL - connector (10-pin, female) | 3 | ||
| 41-3856 | TERMINAL - connector (18-pin, female) | 1 | ||
| 11 | 41-4183 | HARNESS - fuse bracket | 1 | |
| 12 | 41-3255 | SERVOMOTOR (24VDC) | 2 | |
| 55-7696 | SCREW - servomotor | 6 | ||
| 55-7369 | LOCKWASHER | 6 | ||
| 55-7697 | FLATWASHER | 6 | ||
| 13 | 78-1296 | BLOWER - evaporator (24V) | 6 | |
| 55-7696 | SCREW - blower | 24 | ||
| 55-7369 | WASHER | 24 | ||
| 55-7368 | WASHER | 24 | ||
| 14 | 41-3465 | CONTROLLER - speed | 2 | |
| 15 | 41-3830 | CONTROLLER - speed | 6 | |
| 55-7696 | SCREW - controller | 10 | ||
| 55-7369 | LOCKWASHER | 10 | ||
| 55-7368 | FLATWASHER | 10 | ||
| 16 | NSS | FUSE - box (see 161E3) | 1 | |
| 55-6994 | SCREW - fuse box | 2 | ||
| 55-7170 | LOCKWASHER | 2 | ||
| 55-7075 | FLATWASHER | 2 | ||
| 17 | 41-3843 | SENSOR - return temperature | 1 | |
| 18 | 41-4182 | HARNESS - control section | 1 | |
| 41-2769 | CONNECTOR (4-pin, female) | 1 | ||
| 41-3855 | TERMINAL - connector (10-pin, female) | 1 | ||
| 41-2772 | CONNECTOR (18-pin, male) | 1 |
