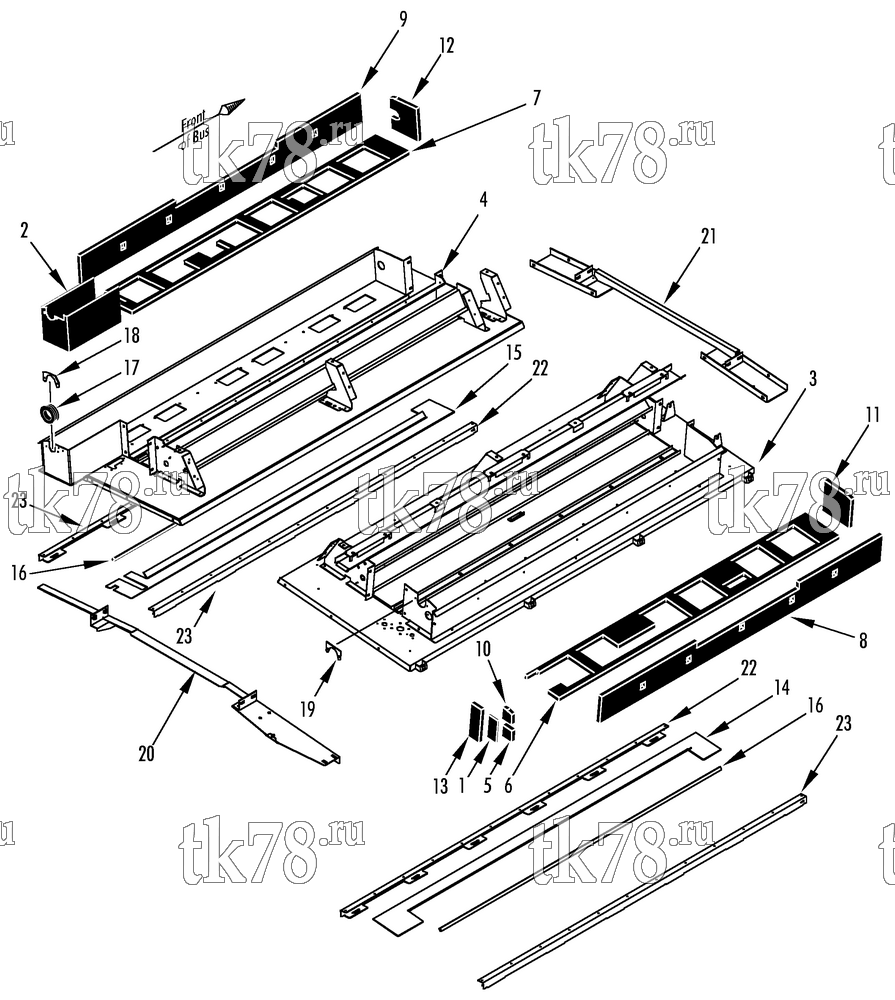

Установкa Thermo King CRT-II IC, UK-Millenn R134a, 1004 схема FRAME AND INSULATIONS COMPONENTS – 164D9
Обновление от: 5/15/01
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 92-672 | INSULATION - end (curbside) | 1 | |
| 2 | 92-1255 | INSULATION - end (roadside) | 1 | |
| 3 | 98-6053 | BASE - curbside | 1 | |
| 55-7866 | NUT - captive (M4) | 17 | ||
| 55-8375 | NUT - captive (M5) | 5 | ||
| 55-7373 | NUT - captive (M6) | 6 | ||
| 4 | 98-6054 | BASE - roadside | 1 | |
| 55-7866 | NUT - captive (M4) | 17 | ||
| 55-8375 | NUT - captive (M5) | 9 | ||
| 55-7373 | NUT - captive (M6) | 6 | ||
| 5 | 92-666 | INSULATION - end (curbside) | 1 | |
| 6 | 92-669 | INSULATION - base (roadside) | 1 | |
| 7 | 92-689 | INSULATION - base (curbside) | 1 | |
| 8 | 92-1256 | INSULATION - side (curbside) | 1 | |
| 9 | 92-1257 | INSULATION - side (roadside) | 1 | |
| 10 | 92-1258 | INSULATION - end (roadside) | 1 | |
| 11 | 92-1259 | INSULATION - front (roadside) | 1 | |
| 12 | 92-1260 | INSULATION - front (curbside) | 1 | |
| 13 | 92-1261 | INSULATION - end (roadside) | 1 | |
| 14 | 92-1262 | INSULATION - bottom (roadside) | 1 | |
| 15 | 92-1263 | INSULATION - bottom (curbside) | 1 | |
| 16 | 92-1264 | STRIP - insulation | 2 | |
| 17 | 33-507 | GROMMET (1-18 id) | 1 | |
| 18 | 92-1265 | LID - grommet | 1 | |
| 19 | 92-1266 | LID - suction tube | 1 | |
| 20 | 92-1267 | STIFFENER - rear | 1 | |
| 21 | 92-1268 | STIFFENER - front | 1 | |
| 22 | 92-1269 | BRACKET - mounting (center) | 2 | |
| 55-9194 | NUT - captive | 6 | ||
| 23 | 92-1270 | BRACKET - mounting (outboard) | 2 | |
| 55-9194 | NUT- captive | 6 |
