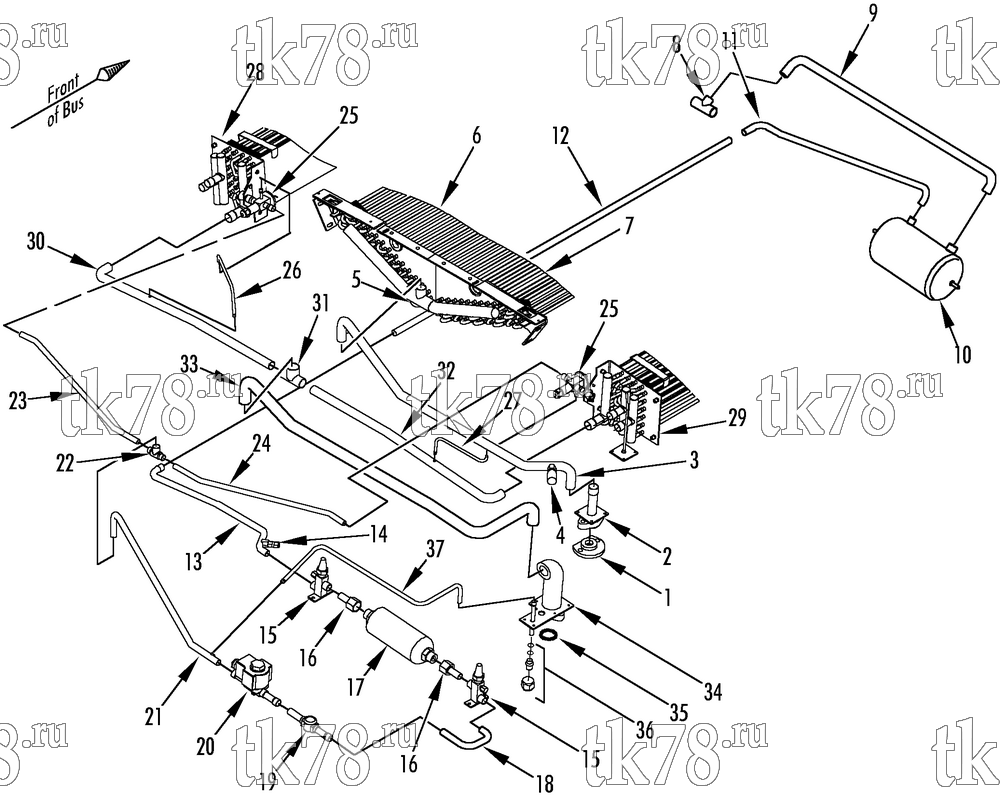

Установкa Thermo King CRT-II IC, UK-Millenn R134a, 1004 схема REFRIGERATION COMPONENTS - 1004 – 164D0
Обновление от: 6/18/01
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 91-9143 | FLANGE - discharge | 2 | |
| 2 | 61-883 | ADAPTER - discharge | 1 | |
| 3 | 61-884 | TUBE | 1 | |
| 66-4553 | SADDLE - fitting | 1 | ||
| 4 | 41-3831 | SWITCH - hpco | 1 | |
| 5 | 55-9517 | TEE (1-1/8 - 7/8) | 1 | |
| 6 | 67-1756 | COIL - condenser (roadside) | 1 | |
| 7 | 67-1757 | COIL - condenser (curbside) | 1 | |
| 8 | 55-6174 | TEE (7/8) | 1 | |
| 9 | 61-885 | TUBE - tee to tank | 1 | |
| 10 | 67-1520 | TANK - receiver | 1 | |
| 55-7825 | NUT - tank | 2 | ||
| 55-7342 | LOCKWASHER | 2 | ||
| 55-7085 | FLATWASHER | 2 | ||
| 11 | 61-886 | TUBE - tank to dehydrator (#1) | 1 | |
| 12 | 61-466 | TUBE - tank to dehydrator (#2) | 1 | |
| 13 | 61-887 | TUBE - tank to dehydrator (#3) | 1 | |
| 55-9183 | SADDLE - fitting | 1 | ||
| 14 | 66-9356 | VALVE - relief | 1 | |
| 15 | 66-2104 | VALVE - shutoff | 2 | |
| 66-2170 | CAP - valve | 1 | ||
| 55-6994 | SCREW - valve | 2 | ||
| 55-6996 | WASHER | 2 | ||
| 55-6995 | WASHER | 2 | ||
| 16 | 66-9979 | TUBE - dehydrator to valve | 2 | |
| 17 | 66-9352 | DEHYDRATOR | 1 | |
| 66-9352 OEM | Фильтр-осушитель | 6 350 ₽ |
|
|
| 18 | 61-889 | TUBE - valve to indicator | 1 | |
| 19 | 66-9856 | SIGHT GLASS | 1 | |
| 20 | 66-9353 | VALVE - solenoid | 1 | |
| 41-3574 | COIL - valve | 1 | ||
| 55-7036 | SCREW - valve | 1 | ||
| 55-7171 | LOCKWASHER | 1 | ||
| 55-6995 | FLATWASHER | 1 | ||
| 21 | 61-888 | TUBE - valve to tee | 1 | |
| 22 | 55-1252 | TEE | 1 | |
| 23 | 61-890 | TUBE - tee to expansion valve (roadside) | 1 | |
| 24 | 61-891 | TUBE - tee to expansion valve (curbside) | 1 | |
| 25 | 61-444 | VALVE - expansion | 2 | |
| 26 | 61-892 | TUBE - equalizer (roadside) | 1 | |
| 27 | 61-893 | TUBE - equalizer (curbside) | 1 | |
| 28 | 67-1758 | COIL - evaporator/heater (roadside) | 1 | |
| 29 | 67-1696 | COIL - evaporator/heater (curbside) | 1 | |
| 30 | 61-894 | TUBE - suction (roadside) | 1 | |
| 31 | 55-6508 | TEE | 1 | |
| 32 | 61-895 | TUBE - suction (curbside) | 1 | |
| 33 | 61-896 | TUBE - tee to adapter | 1 | |
| 34 | NSS | ADAPTER - suction (see 161D0) | 1 | |
| 34 | 92-145 | INSULATION - adapter | 1 | |
| 35 | 33-1461 | O-RING | 2 | |
| 36 | 92-120 | PLUG - insert | 1 | |
| 92-121 | NUT | 1 | ||
| 37 | 61-897 | TUBE | 1 |
