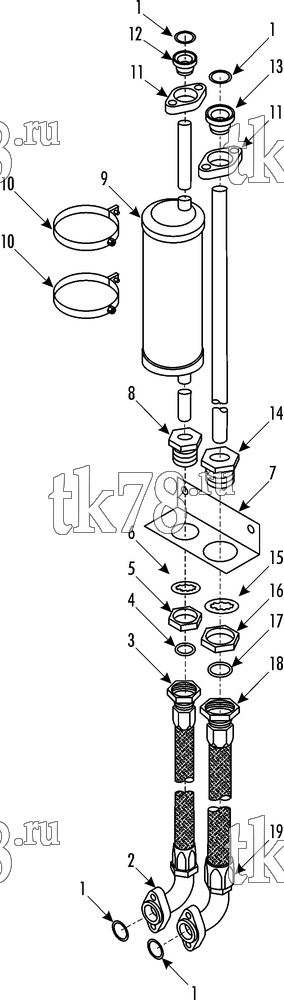

Установкa Thermo King CRT-II GD 1000 w/ClimaAIRE схема INSTALLATION GROUP – 175B3
Обновление от: 7/16/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 33-3191 | GASKET - flange | 4 | |
| 2 | 61-475 | FITTING - discharge (#16, 45 deg) | 1 | |
| 3 | 66-9234 | FITTING - discharge (#16) | 1 | |
| 4 | 33-3165 | O-RING | 3 | |
| 5 | 55-5740 | NUT - bulkhead (#16) | 1 | |
| 6 | 55-5741 | LOCKWASHER | 1 | |
| 7 | 91-1251 | BRACKET - tube support | 1 | |
| 8 | 66-5247 | ADAPTER - bulkhead (#16) | 1 | |
| 9 | 66-9201 | MUFFLER - complete | 1 | |
| 10 | 55-9095 | CLAMP | 2 | |
| 11 | 55-9371 | FLANGE | 2 | |
| 12 | 55-9369 | ADAPTER - discharge | 1 | |
| 13 | 55-9370 | ADAPTER - suction | 1 | |
| 14 | 55-7537 | ADAPTER - bulkhead (#20) | 1 | |
| 15 | 55-5742 | LOCKWASHER | 1 | |
| 16 | 55-5739 | NUT - bulkhead (#20) | 1 | |
| 17 | 33-3166 | O-RING | 2 | |
| 18 | 66-9231 | FITTING - suction (#20) | 1 | |
| 19 | 61-476 | FITTING - suction (#20, 45 deg) | 1 |
