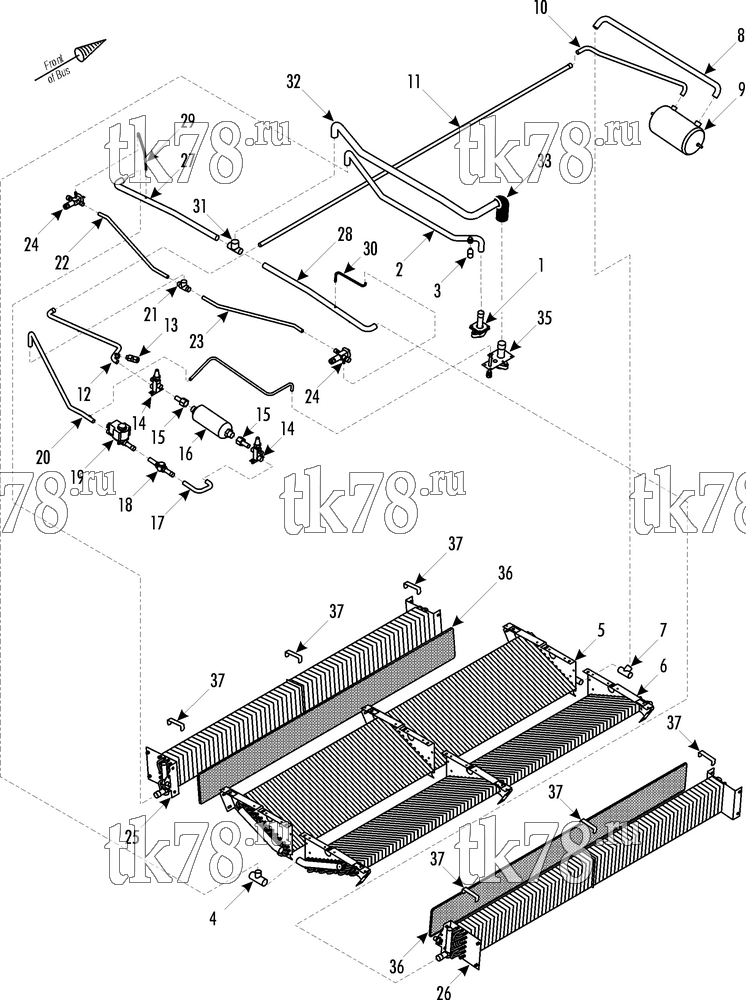

Установкa Thermo King CRT-II GD 1000 w/ClimaAIRE схема REFRIGERATION COMPONENTS – 175A5
Обновление от: 9/4/02
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | NSS | ADAPTER - inlet (see 169B8) | 1 | |
| 2 | 61-884 | TUBE - adapter inlet to condenser | 1 | |
| 66-4553 | FITTING - saddle | 1 | ||
| 3 | 41-3831 | SWITCH - hpco | 1 | |
| 4 | 55-9517 | TEE (1-1/8 x 1-1/8 x 7/8) | 1 | |
| 5 | 67-1756 | COIL - condenser (roadside, see 175A6) | 1 | |
| 6 | 67-1757 | COIL - condenser (curbside, see 175A6) | 1 | |
| 7 | 55-6174 | TEE (7/8 x 7/8 x 7/8) | 1 | |
| 8 | 61-885 | TUBE - tee to tank | 1 | |
| 9 | 67-1520 | TANK - receiver | 1 | |
| 10 | 61-886 | TUBE - tank to dehydrator (#1) | 1 | |
| 11 | 61-466 | TUBE - tank to dehydrator (#2) | 1 | |
| 12 | 61-887 | TUBE - tank to dehydrator (#3) | 1 | |
| 55-9183 | FITTING - saddle | 1 | ||
| 13 | 66-9356 | VALVE - relief | 1 | |
| 14 | 66-2104 | VALVE - shutoff | 2 | |
| 66-2170 | CAP - valve | 2 | ||
| 55-6994 | SCREW - valve | 4 | ||
| 55-6996 | LOCKWASHER | 4 | ||
| 55-6995 | FLATWASHER | 4 | ||
| 15 | 66-9979 | TUBE - valve to dehydrator | 2 | |
| 66-9913 | TUBE | 2 | ||
| 55-6356 | SHOULDER | 2 | ||
| 55-6396 | NUT - shoulder | 2 | ||
| 16 | 66-9352 | FILTER - dehydrator | 1 | |
| 66-9352 OEM | Фильтр-осушитель | 6 350 ₽ |
|
|
| 33-1223 | O-RING | 2 | ||
| 17 | 61-889 | TUBE - valve to indicator | 1 | |
| 18 | 66-9856 | INDICATOR - liquid (sight glass) | 1 | |
| 19 | 66-9353 | VALVE - solenoid | 1 | |
| 41-3574 | COIL - valve | 1 | ||
| 55-7033 | FLATWASHER | 1 | ||
| 55-7171 | LOCKWASHER | 1 | ||
| 55-7088 | SCREW - valve | 1 | ||
| 20 | 61-888 | TUBE - valve to tee | 1 | |
| 21 | 55-1252 | TEE - liquid line (1/2 x 1/2 x 5/8) | 1 | |
| 22 | 61-890 | TUBE - tee to expansion valve (roadside) | 1 | |
| 23 | 61-891 | TUBE - tee to expansion valve (curbside) | 1 | |
| 24 | 61-444 | VALVE - expansion | 2 | |
| 25 | 67-1832 | COIL - evaporator (roadside) | 1 | |
| 26 | 67-1831 | COIL - evaporator (curbside) | 1 | |
| 27 | 61-894 | TUBE - suction (roadside) | 1 | |
| 28 | 61-895 | TUBE - suction (curbside) | 1 | |
| 29 | 61-892 | TUBE - equalizer (roadside) | 1 | |
| 30 | 61-893 | TUBE - equalizer (curbside) | 1 | |
| 31 | 55-6508 | TEE - suction (7/8 x 7/8 x 1-1/8) | 1 | |
| 32 | 61-1550 | TUBE - tee to adapter outlet | 1 | |
| 33 | 92-2080 | INSULATION - tube | 1 | |
| 34 | 61-1551 | TUBE - front box | 1 | |
| 35 | NSS | ADAPTER - outlet (see 169B9) | 1 | |
| 36 | 92-1283 | FILTER - air | 2 | |
| 37 | 92-1967 | CLIP | 6 |
