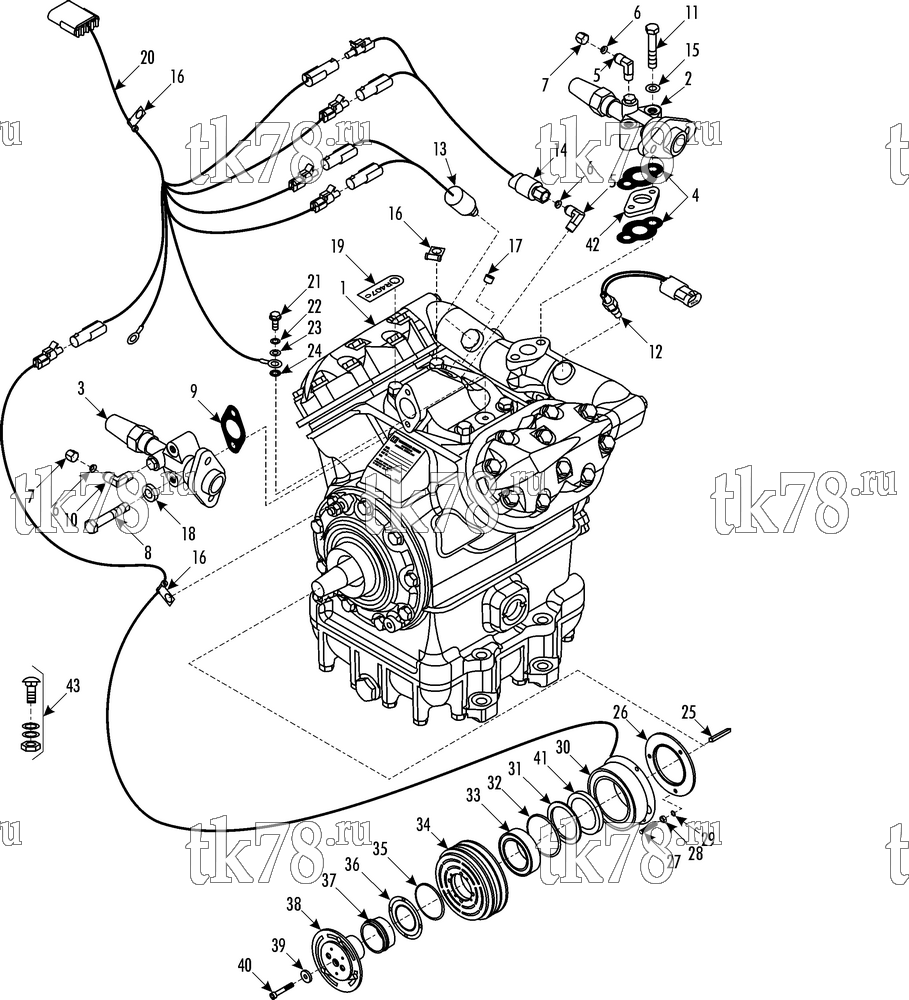

Установкa Thermo King CRT-II GD 1000 w/ClimaAIRE схема COMPRESSOR GROUP (1C74448G12, KIT 718495) – 161C0
Обновление от: 9/24/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-917 | COMPRESSOR - X430 C5 (subassy, see 228E5) | 1 | |
| 2 | 61-442 | VALVE - discharge (see 161D2) | 1 | |
| 3 | 61-441 | VALVE - suction (see 161D1) | 1 | |
| 4 | 33-2805 | GASKET - discharge valve | 2 | |
|
33-2805 OEM | Прокладка коллектора армированная, X426/430 | 800 ₽ |
|
|
10-33-2805 | Прокладка коллектора армированная, X426/430 | 620 ₽ |
|
|
10-33-2546 | Прокладка коллектора, X426/430 | 340 ₽ |
|
|
PP-33-2805 | Прокладка коллектора, X426/430 | 50 ₽ |
|
| 5 | 55-308 | ELBOW | 2 | |
| 6 | 33-768 | GASKET | 3 | |
| 7 | 55-1983 | CAP | 2 | |
| 8 | 55-201 | SCREW - suction valve | 2 | |
| 9 | 33-2541 | GASKET - suction valve | 1 | |
| 10 | 55-466 | ELBOW | 1 | |
| 11 | 55-1993 | SCREW - discharge valve | 2 | |
| 30-55-1993 | Болт | 680 ₽ |
|
|
| 12 | 41-3345 | SENSOR - high temperature (for connectors see 115D14) | 1 | |
| 13 | 41-4146 | SWITCH - hpco (for connectors see 115D14) | 1 | |
| 41-4531 | SWITCH - only | 1 | ||
| 14 | 41-4147 | SWITCH - hpco (for connectors see 115D14) | 1 | |
| 41-4530 | SWITCH - only | 1 | ||
| 15 | 55-895 | FLATWASHER | 2 | |
| 17 | 55-433 | PLUG - pipe | 1 | |
| 18 | 55-6804 | WASHER - sealing | 2 | |
| 19 | 92-4114 | NAMEPLATE - R134a | 1 | |
| 20 | 41-6319 | HARNESS - compressor (for connectors see 115D14) | 1 | |
| 21 | 57-2308 | SCREW | 1 | |
| 22 | 56-2964 | LOCKWASHER | 1 | |
| 23 | 55-2201 | WASHER | 1 | |
| 24 | 55-2996 | LOCKWASHER | 2 | |
| 25 | 55-9088 | KEY - shaft | 1 | |
| 26 | 77-1083 | PLATE | 1 | |
| 27 | 55-3451 | STUD - mounting | 3 | |
| 28 | 55-789 | NUT | 3 | |
| 29 | 55-790 | LOCKWASHER | 3 | |
| 30 | 45-1389 | FIELD - clutch (24VDC) | 1 | |
| 31 | 33-1238 | SEAL - oil | 1 | |
| 32 | 55-2717 | RING - retaining | 1 | |
| 33 | 77-1233 | BEARING | 1 | |
| 34 | 77-1663 | PULLEY (2-B/2-A grooves, 7.75/8.9 in od) | 1 | |
| 35 | 33-928 | O-RING | 1 | |
| 36 | 33-1285 | RETAINER & SEAL | 1 | |
| 55-110 | SCREW - retainer | 4 | ||
| 55-2718 | LOCKWASHER | 4 | ||
| 38 | 77-1487 | NUT - clutch | 1 | |
| 38 | 77-2392 | HUB & ARMATURE (0.344 thick armature) | 1 | |
| 39 | 77-2498 | SPACER | 1 | |
|
10-77-2498 | Шайба муфты сцепления | 990 ₽ |
|
| 40 | 55-5283 | SCREW - spacer | 1 | |
| 41 | 77-1491 | SPACER - bearing | 1 | |
| 42 | 55-9515 | SPACER - valve | 1 | |
| 43 | 51-1532 | BOLT | 2 | |
| 55-402 | FLATWASHER | 2 | ||
| 55-375 | LOCKWASHER | 2 | ||
| 55-289 | NUT | 2 |
