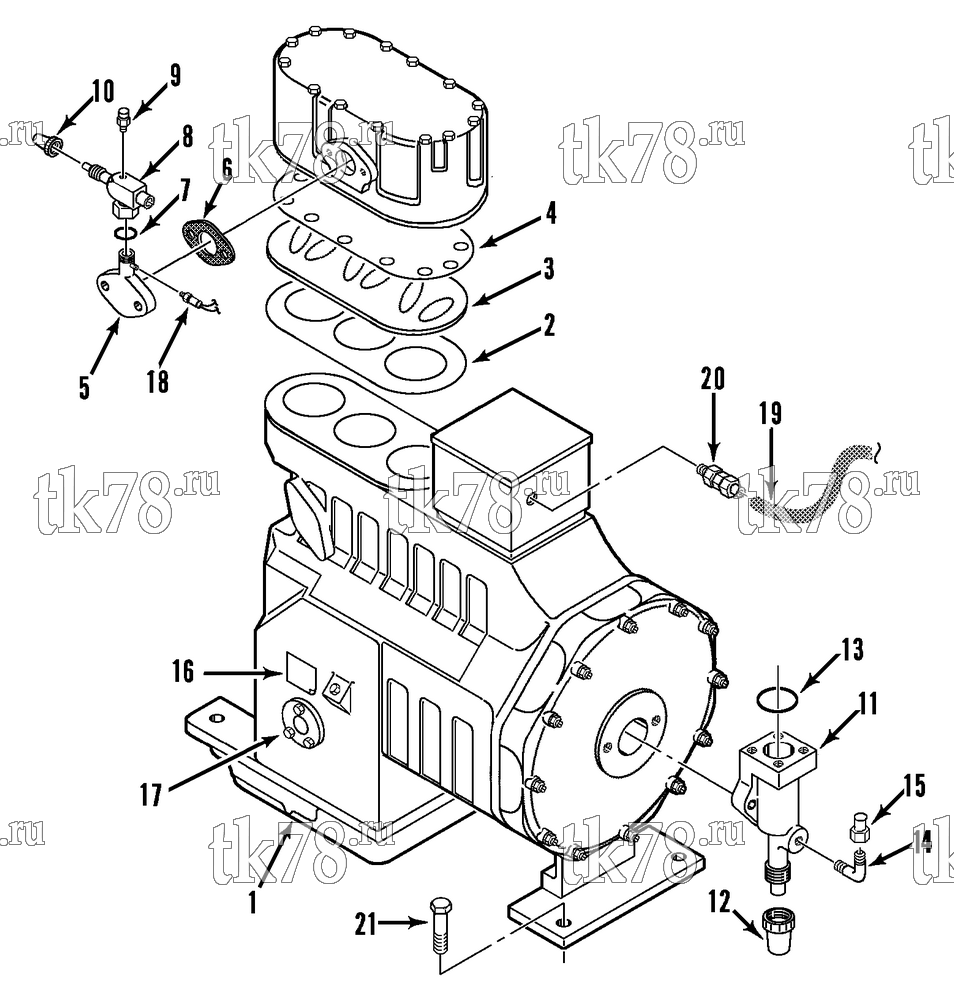

Установкa Thermo King CRR 40 mP-C 2000 схема COMPRESSOR GROUP – 145D10
Обновление от: 4/28/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 8102-743 | COMPRESSOR (reman) | 1 | |
| 2 | 33-2510 | GASKET - valve plate (see note) | 1 | |
| 3 | 22-1051 | KIT - valve plate | 1 | |
| 4 | 33-2218 | GASKET - cylinder head | 1 | |
| 5 | 22-1186 | ADAPTER - discharge | 1 | |
| 505-596 | SCREW - adapter | 2 | ||
| 55-8913 | WASHER | 2 | ||
| 6 | 33-2805 | GASKET - adapter | 1 | |
|
33-2805 OEM | Прокладка коллектора армированная, X426/430 | 800 ₽ |
|
|
10-33-2805 | Прокладка коллектора армированная, X426/430 | 620 ₽ |
|
|
10-33-2546 | Прокладка коллектора, X426/430 | 340 ₽ |
|
|
PP-33-2805 | Прокладка коллектора, X426/430 | 50 ₽ |
|
| 7 | 503-175 | GASKET - valve | 1 | |
| 8 | 66-9150 | VALVE - discharge | 1 | |
| 9 | 66-9873 | ADAPTER - service (high side) | 1 | |
| 10 | 506-162 | CAP - discharge valve | 1 | |
| 11 | 506-164 | VALVE - suction | 1 | |
| 12 | 66-3015 | CAP - suction valve | 1 | |
|
10-66-3015 | Крышка сервисного клапана, латунь, X426/430/640 | 3 000 ₽ |
|
| P-17-10806-10 | Крышка сервисного клапана, латунь, 05K/05G/06D | 3 000 ₽ |
|
|
| 13 | 503-230 | GASKET - suction | 1 | |
| 14 | 505-299 | ELBOW | 1 | |
| 15 | 505-336 | ADAPTER - service (lowside) | 1 | |
| 16 | 509-1153 | LABEL - compressor oil | 1 | |
| 17 | 22-398 | SIGHT GLASS - oil | 1 | |
| 33-2222 | GASKET - sight glass | 1 | ||
| 18 | 504-915 | SWITCH - hpco | 1 | |
| 19 | 41-2716 | CABLE - compressor power | 1 | |
| 20 | 55-8907 | FITTING - harness | 1 | |
| 21 | 55-9037 | SCREW - compressor (50 mm) | 2 | |
| 505-601 | SCREW - compressor (40 mm) | 2 | ||
| 55-8912 | FLATWASHER | 4 | ||
| 55-8992 | NUT | 4 |
