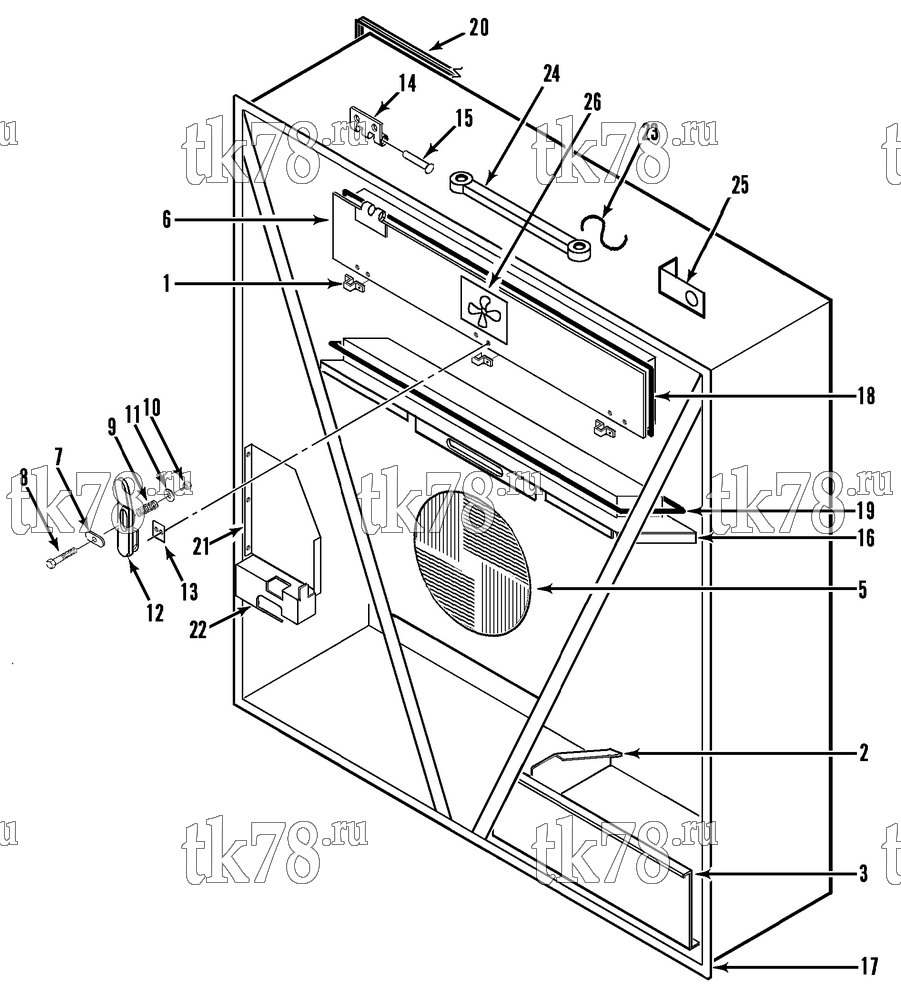

Установкa Thermo King CRR 40 mP-C 2000 ID схема STRUCTURAL COMPONENTS (2 & 3 EVAP FANS) – 150G9
Обновление от: 1/21/05
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 91-8195 | KEEPER - door latch | 3 | |
| 55-7172 | SCREW - keeper | 6 | ||
| 55-6995 | WASHER | 6 | ||
| 55-8933 | WASHER (nylon) | 6 | ||
| 2 | 91-8108 | BRACKET - frame | 1 | |
| 55-6993 | SCREW - bracket | 3 | ||
| 55-6988 | WASHER | 6 | ||
| 55-9541 | WASHER (nylon) | 6 | ||
| 55-9380 | NUT | 3 | ||
| 3 | 91-9504 | PLATE - cable storage (front) | 1 | |
| 55-7035 | SCREW - plate | 4 | ||
| 55-8893 | FLATWASHER | 6 | ||
| 55-8877 | WASHER (nylon) | 6 | ||
| 55-7008 | NUT | 2 | ||
| 4 | Not Used | |||
| 5 | 98-5925 | GRILLE - condenser | 1 | |
| 98-5453 | GRILLE - humidity | 1 | ||
| 55-6994 | SCREW - grille | 4 | ||
| 55-7357 | FLATWASHER | 4 | ||
| 55-9054 | WASHER (nylon) | 6 | ||
| 6 | 509-755 | DOOR - evaporator (3 fan) | 1 | |
| 92-2995 | HINGE - evap door | 3 | ||
| 51-620 | RIVET - hinge | 12 | ||
| 98-6518 | DOOR - evaporator (2 fan) | 1 | ||
| 92-2995 | HINGE - evap door | 2 | ||
| 51-620 | RIVET - hinge | 8 | ||
| 509-1789 | SEAL - door | A/R | ||
| 7 | 91-9040 | KNOB | 3 | |
| 8 | 55-7035 | SCREW - door | 3 | |
| 9 | 91-8199 | SPRING | 3 | |
| 10 | 55-7354 | NUT | 3 | |
| 11 | 55-8877 | WASHER (nylon) | 3 | |
| 12 | 91-9041 | LATCH - door | 3 | |
| 55-2864 | RIVET - latch | 6 | ||
| 13 | 91-8134 | INSULATOR - latch | 3 | |
| 14 | 509-1654 | HINGE | 3 | |
| 55-7341 | SCREW - hinge | 6 | ||
| 55-9541 | WASHER (nylon) | 6 | ||
| 55-6988 | WASHER | 6 | ||
| 15 | 91-8256 | PIN - hinge (w/ snap) | 3 | |
| 16 | 509-1784 | DOOR - heater section | 1 | |
| 55-9541 | WASHER (nylon) | 8 | ||
| 55-8904 | WASHER | 8 | ||
| 17 | 98-5303 | FRAME - condenser (foamed) | 1 | |
| 18 | 33-3968 | GASKET - evaporator door (3 motors) | 1 | |
| 33-3969 | GASKET - evaporator door (2 motors) | 1 | ||
| 19 | 33-3002 | GASKET - door | 1 | |
| 20 | 33-2983 | GASKET - unit | 1 | |
| 21 | 91-8728 | COVER (instead of thermometer) | 1 | |
| 55-7341 | SCREW - cover | 3 | ||
| 55-8904 | FLATWASHER | 3 | ||
| 55-8953 | WASHER (nylon) | 3 | ||
| 22 | 91-9820 | PLATE - guard | 1 | |
| 55-7341 | SCREW - plate (20 mm) | 2 | ||
| 55-6993 | SCREW - plate (25 mm) | 1 | ||
| 55-8953 | WASHER | 3 | ||
| 23 | 91-9039 | HOOK - strap | 1 | |
| 55-3065 | CLAMP - hook | 1 | ||
| 55-7341 | SCREW - clamp | 1 | ||
| 24 | 509-937 | STRAP - door | 1 | |
| 55-9173 | SCREW - strap | 1 | ||
| 55-7089 | FLATWASHER | 1 | ||
| 26 | 91-8694 | NAMEPLATE - Warning, Fan Start | 1 |
