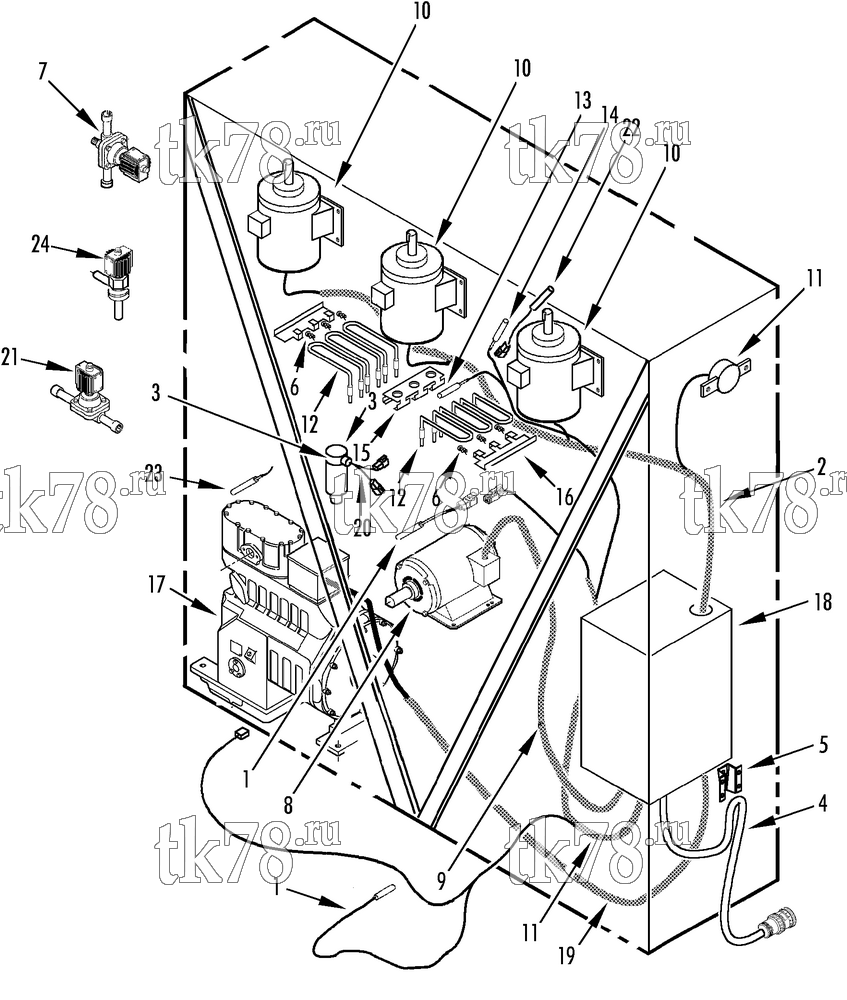

Установкa Thermo King CRR 40 mP-C 2000 ID схема ELECTRICAL COMPONENTS – 150G6
Обновление от: 7/31/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 40-791 | KIT - sensor (universal) | 1 | |
| 40-791 OEM | Датчик оттайки | 8 070 ₽ |
|
|
| 2 | 41-2954 | HARNESS - evaporator fans & heaters (see 150G3) | 1 | |
| 3 | 504-980 | COIL - KVQ (see 151A5) | 1 | |
| 4 | 41-2503 | CABLE - power | 1 | |
| 41-1976 | PLUG - power (Minnekes) | 1 | ||
| 5 | 91-6988 | BRACKET - cable restraint | 1 | |
| 55-9164 | SCREW - cable | 1 | ||
| 55-7357 | FLATWASHER | 1 | ||
| 55-7344 | NUT | 1 | ||
| 55-7172 | SCREW - bracket | 4 | ||
| 55-7075 | FLATWASHER | 4 | ||
| 55-7170 | LOCKWASHER | 4 | ||
| 6 | 91-8140 | SPRING - heater | 6 | |
| 7 | 66-9167 | VALVE - solenoid (see 146E5) | 2 | |
| 8 | 104-753 | MOTOR - condenser fan (see 150G2) | 1 | |
| 77-1498 | BEARING - shaft end | 1 | ||
| 77-1401 | BEARING - opposite end | 1 | ||
| 9 | 41-2953 | HARNESS - condenser fan (see 150G2) | 1 | |
| 10 | 104-691 | MOTOR - evaporator fan (units w/ 3 motors see 150G3, units w/ 2 motors see 152C1) | 3 | |
| 77-1498 | BEARING - shaft end | 1 | ||
| 77-1401 | BEARING - opposite end | 1 | ||
| 11 | 41-3401 | SWITCH - high temperature (130 deg F) | 1 | |
| 12 | 45-1791 | HEATER | 6 | |
| 13 | 40-791 | KIT - sensor (universal) | 1 | |
| 40-791 OEM | Датчик оттайки | 8 070 ₽ |
|
|
| 14 | 40-791 | KIT - sensor (universal) | 1 | |
| 40-791 OEM | Датчик оттайки | 8 070 ₽ |
|
|
| 15 | 91-8142 | BRACKET - heater | 1 | |
| 16 | 91-8467 | BRACKET - heater | 2 | |
| 55-8891 | SCREW - bracket | 11 | ||
| 17 | 8102-743 | COMPRESSOR (see 162G5) | 1 | |
| 18 | NSS | BOX - control (see 152A3) | 1 | |
| 55-8075 | SCREW - control box | 4 | ||
| 55-8893 | WASHER | 4 | ||
| 55-9054 | WASHER (nylon) | 4 | ||
| 19 | 41-4015 | CABLE - compressor | 1 | |
| 20 | 41-2603 | HARNESS - KVQ | 1 | |
| 21 | 66-9032 | VALVE - dehumidifier (see 147G12) | 1 | |
| 60-323 | KIT - repair (Danfoss) | 1 | ||
| 22 | 41-9220 | SENSOR - humidity (see 147G12) | 1 | |
| 23 | 41-4300 | PROBE - head temperature (see 160G1) | 1 | |
| 24 | 66-9168 | VALVE - solenoid | 1 |
