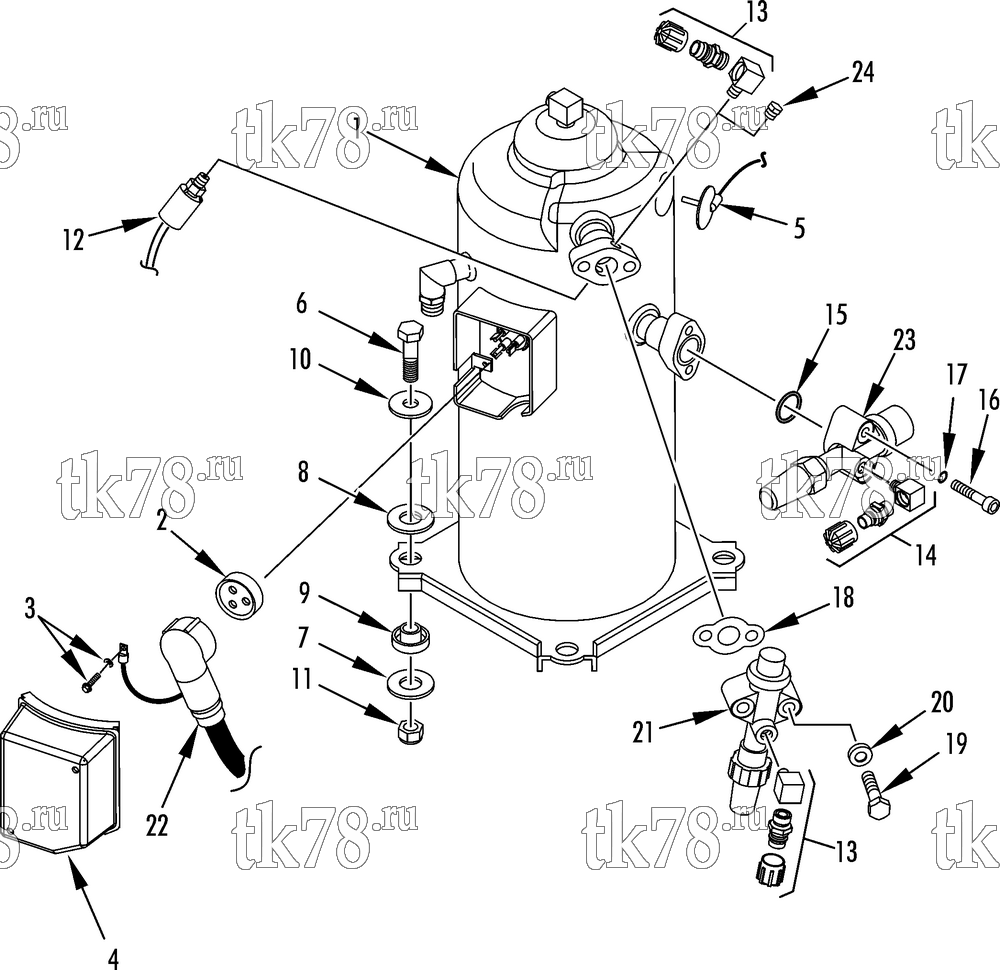

Установкa Thermo King CRR 40 Deep Freeze схема COMPRESSOR GROUP – 247E3
Обновление от: 10/5/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-796 | COMPRESSOR - scroll | 1 | |
| 203-516 | OIL - compressor | A/R | ||
| 40-779 | KIT - gasket & grease | 1 | ||
| 2 | 33-2951 | GASKET - power connector | 1 | |
| 33-2979 | SEALER - silicone grease pack | 1 | ||
| 3 | 55-8994 | SCREW - ground | 1 | |
| 55-8995 | WASHER - ground | 1 | ||
| 4 | 91-9021 | COVER - terminal box | 1 | |
| 5 | 40-776 | KIT - thermistor | 1 | |
| 6 | 51-2081 | SCREW - compressor | 4 | |
| 7 | 51-1435 | FLATWASHER (12 mm) | 4 | |
| 8 | 55-9012 | WASHER - vibration damper | 4 | |
| 9 | 55-9320 | SPACER | 4 | |
| 10 | 51-1436 | FLATWASHER (13 mm) | 4 | |
| 11 | 51-1434 | NUT | 4 | |
| 12 | 41-6224 | SWITCH - hpco | 1 | |
| 203-393 | SEALER - thread (red) | A/R | ||
| 13 | 66-7812 | ADAPTER - high side | 1 | |
| 66-6610 | FITTING - highside | 1 | ||
| 66-7182 | CAP - fitting | 1 | ||
| 203-393 | SEALER - thread (red) | A/R | ||
| 14 | 66-8054 | ELBOW - low side | 1 | |
| 66-6607 | FITTING - low side | 1 | ||
| 66-7183 | CAP - fitting | 1 | ||
| 15 | 33-727 | O-RING - suction | 1 | |
| 16 | 51-1438 | SCREW - suction valve | 2 | |
| 17 | 51-1429 | LOCKWASHER | 2 | |
| 18 | 33-2805 | GASKET - flange | 1 | |
|
33-2805 OEM | Прокладка коллектора армированная, X426/430 | 800 ₽ |
|
|
10-33-2805 | Прокладка коллектора армированная, X426/430 | 620 ₽ |
|
|
10-33-2546 | Прокладка коллектора, X426/430 | 340 ₽ |
|
|
PP-33-2805 | Прокладка коллектора, X426/430 | 50 ₽ |
|
| 19 | 51-1437 | SCREW - discharge valve | 2 | |
| 20 | 51-358 | WASHER - sealing | 2 | |
| 21 | 61-2119 | VALVE - discharge | 1 | |
| 22 | 40-782 | KIT - power cord | 1 | |
| 23 | 61-2118 | VALVE - suction | 1 | |
| 24 | 55-3364 | PLUG | 1 |
