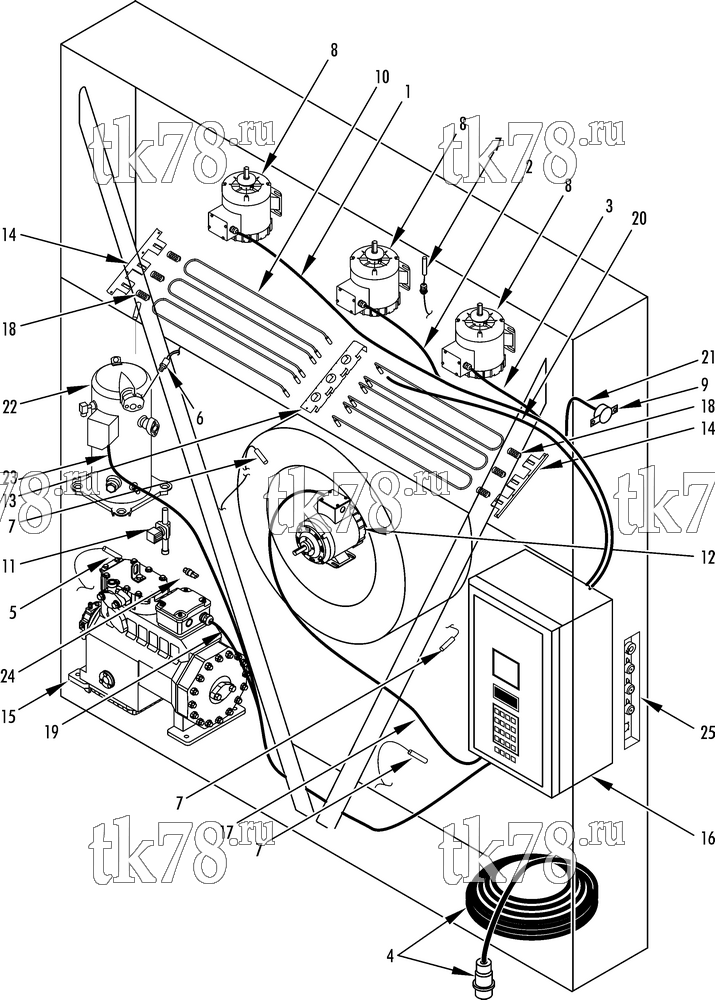

Установкa Thermo King CRR 40 DF схема ELECTRICAL COMPONENTS – 150B11
Обновление от: 7/31/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 504-1519 | HARNESS - evaporator motor (3.3 meter) | 1 | |
| 2 | 504-1520 | HARNESS - evaporator motor 2.8 meter) | 1 | |
| 3 | 504-1521 | HARNESS - evaporator motor (2.2 meter) | 1 | |
| 4 | 41-2490 | CABLE - power | 1 | |
| 504-1528 | TERMINAL - spade | 4 | ||
| 41-1976 | PLUG - power (Minnekes) | 1 | ||
| 5 | 41-4300 | SENSOR - compressor | 2 | |
| 6 | 41-4523 | SWITCH - hpco | 1 | |
|
41-4523 OEM | Выключатель высокого давления, SLX/SLXe | 15 650 ₽ |
|
| 10-41-4523 | Выключатель высокого давления, SLX/SLXe | 12 390 ₽ |
|
|
| 7 | 504-1529 | SENSOR - defrost, return & supply | 4 | |
| 8 | 104-691 | MOTOR - evaporator fan (see 150D9) | 3 | |
| 9 | 41-3401 | SWITCH - defrost termination | 1 | |
| 10 | 45-1791 | HEATER | 6 | |
| 11 | 66-9167 | VALVE - solenoid (see 146E7) | 1 | |
| 12 | 104-753 | MOTOR - condenser fan (see 143D3) | 1 | |
| 13 | 509-1783 | BRACKET - heater | 1 | |
| 14 | 509-1781 | BRACKET - heater | 2 | |
| 55-8891 | SCREW - bracket | 11 | ||
| 15 | 8102-743 | COMPRESSOR R-134a (see 146F2) | 1 | |
| 16 | NSS | BOX - control (see 146D6) | 1 | |
| 55-7172 | SCREW - control box | 4 | ||
| 55-8893 | WASHER | 4 | ||
| 55-8992 | WASHER (nylon) | 4 | ||
| 17 | 41-2953 | HARNESS - condenser fan | 1 | |
| 18 | 91-8140 | SPRING - heater | 12 | |
| 19 | 41-2716 | HARNESS - compressor | 1 | |
| 20 | 41-2489 | HARNESS - heater | 1 | |
| 21 | 504-1522 | HARNESS - defrost switch | 1 | |
| 22 | 102-796 | COMPRESSOR - scroll (R23, see 146E9) | 1 | |
| 23 | 40-782 | HARNESS - R-23 compressor | 1 | |
| 24 | 41-3250 | SWITCH - hpco | 1 | |
| 25 | 41-3336 | PANEL - USDA (see 157H2) | 1 |
