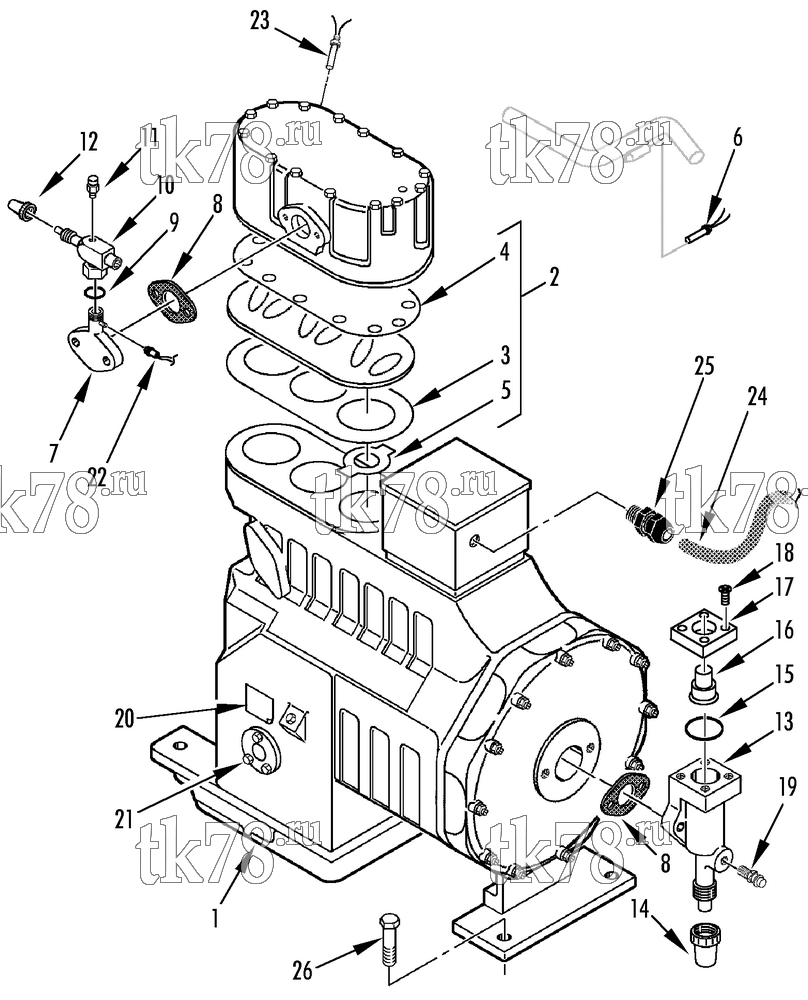

Установкa Thermo King CRR 20 & 40 mP-D for Hapag-Lloyd схема COMPRESSOR GROUP – 146F2
Обновление от: 4/28/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 8102-743 | COMPRESSOR (CRR 40 & DF Delta Reed compressor) | 1 | |
| 102-673 | COMPRESSOR (CRR 20) | 1 | ||
| 2 | 22-1051 | KIT - valve plate (see note) | 1 | |
| 22-1132 | KIT - valve plate (Delta Reed compressor only) | 1 | ||
| 3 | 33-2510 | GASKET - valve plate (see note) | 1 | |
| 33-3513 | GASKET - valve plate (Delta reed compressor only) | 1 | ||
| 4 | 33-2218 | GASKET - cylinder head | 1 | |
| 5 | 502-240 | KIT - reed suction | 1 | |
| 203-516 | OIL - compressor | A/R | ||
| 6 | 41-4300 | PROBE - high temperature | 1 | |
| 7 | 22-1186 | ADAPTER - discharge | 1 | |
| 55-2747 | SCREW - adapter | 2 | ||
| 55-2159 | LOCKWASHER | 2 | ||
| 55-2173 | FLATWASHER | 2 | ||
| 8 | 33-2548 | GASKET - adapter/suction | 2 | |
| 9 | 33-981 | GASKET - valve | 1 | |
| 10 | 66-9150 | VALVE - discharge | 1 | |
| 11 | 66-6610 | ADAPTER - service (high side) | 1 | |
| 66-7182 | CAP - adapter (red) | 1 | ||
| 12 | 506-162 | CAP - discharge valve | 1 | |
| 13 | 66-9149 | VALVE - suction | 1 | |
| 14 | 66-3015 | CAP - suction valve | 1 | |
| P-17-10806-10 | Крышка сервисного клапана, латунь, 05K/05G/06D | 3 000 ₽ |
|
|
|
10-66-3015 | Крышка сервисного клапана, латунь, X426/430/640 | 3 000 ₽ |
|
| 15 | 503-230 | GASKET - suction | 1 | |
| 16 | 66-1845 | COUPLING | 1 | |
| 17 | 66-2457 | COLLAR | 1 | |
| 18 | 55-3490 | SCREW - collar | 1 | |
| 19 | 66-6607 | FITTING - service (lowside) | 1 | |
| 20 | 509-1153 | LABEL - compressor oil | 1 | |
| 21 | 22-398 | SIGHT GLASS - oil | 1 | |
| 33-2222 | GASKET - sight glass | 1 | ||
| 22 | 41-1626 | SWITCH - hpco | 1 | |
| 23 | 41-2447 | SENSOR - head temperature | 1 | |
| 24 | 41-2716 | CABLE - compressor power | 1 | |
| 25 | 55-5257 | FITTING - harness | 1 | |
| 26 | 55-9037 | SCREW - compressor (50 mm) | 4 | |
| 55-7360 | FLATWASHER | 4 | ||
| 55-5025 | NUT | 4 |
