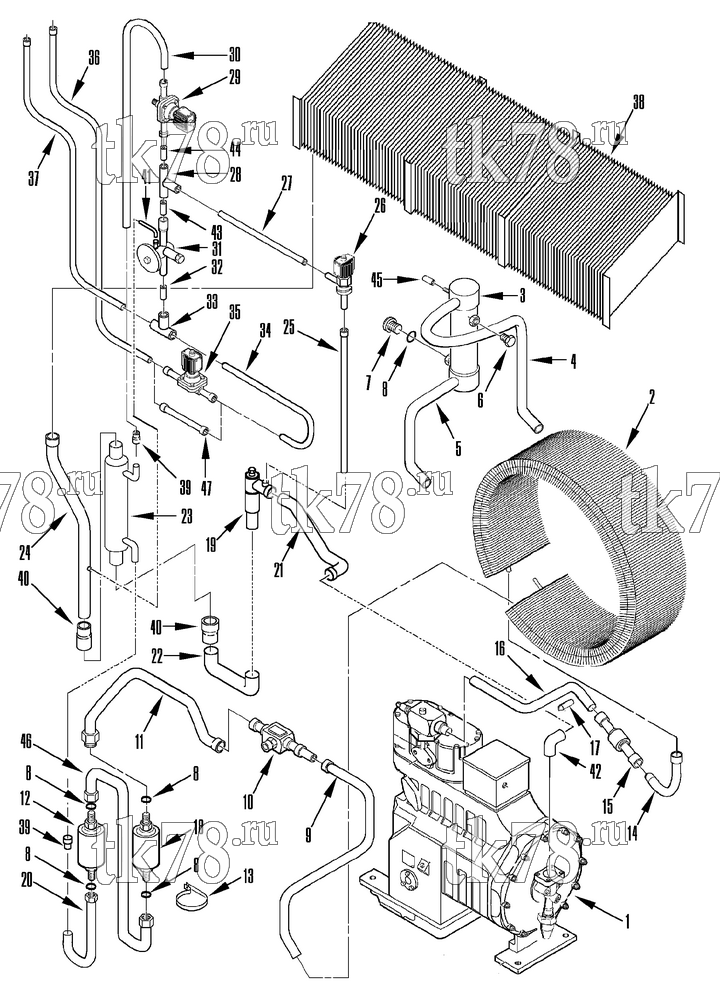

Установкa Thermo King CRR 20 & 40 mP-D for Hapag-Lloyd схема REFRIGERATION COMPONENTS – 146F1
Обновление от: 12/25/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 8102-743 | COMPRESSOR (see 145D10) | 1 | |
| 2 | 60-285 | COIL - condenser | 1 | |
| 3 | 67-1602 | TANK - receiver | 1 | |
| 4 | 66-9081 | TUBE - condenser to receiver | 1 | |
| 5 | 66-9082 | TUBE - receiver to condenser | 1 | |
| 6 | 506-364 | PLUG - fusible | 1 | |
| 7 | 66-8811 | SIGHT GLASS | 1 | |
| 505-606 | WASHER (nylon) | 4 | ||
| 509-1635 | BRACKET - sight glass | 1 | ||
| 55-8891 | SCREW - bracket | 2 | ||
| 8 | 33-3007 | GASKET | 5 | |
| 33-3007 OEM | О-ринг сервисного клапана, X426/430/640 | 130 ₽ |
|
|
| 9 | 506-375 | TUBE - condenser to indicator | 1 | |
| 10 | 66-9125 | VALVE - shutoff | 1 | |
| 55-7843 | SCREW - valve | 2 | ||
| 55-7368 | WASHER | 2 | ||
| 11 | 506-374 | TUBE - indicator to drier | 1 | |
| 12 | 66-8767 | DEHYDRATOR | 1 | |
| 91-8620 | LABEL - dehydrator | 1 | ||
| 13 | 55-8938 | CLAMP - dehydrator | 1 | |
| 55-8891 | SCREW - bracket | 2 | ||
| 14 | 506-369 | TUBE - discharge | 1 | |
| 15 | 66-8467 | VALVE - check | 1 | |
| 16 | 506-370 | TUBE - discharge | 1 | |
| 17 | 504-1418 | PIPE - temperature | 1 | |
| 18 | 66-8473 | FILTER | 1 | |
| 19 | 66-9163 | KVQ - actuator (see 146E6) | 1 | |
| 20 | 66-9073 | TUBE - heat exchanger to dehydrator | 1 | |
| 55-8951 | SHOULDER (o-ring seal) | 1 | ||
| 55-8950 | NUT - shoulder | 1 | ||
| 21 | 66-9071 | TUBE - KVQ to compressor | 1 | |
| 22 | 61-726 | TUBE - exchanger to KVQ | 1 | |
| 23 | 66-8849 | HEAT EXCHANGER (CRR 40) | 1 | |
| 506-272 | HEAT EXCHANGER (CRR 20) | 1 | ||
| 24 | 66-9069 | TUBE - evaporator to exchanger | 1 | |
| 25 | 61-727 | TUBE - solenoid to KVQ | 1 | |
| 26 | 66-9168 | VALVE - solenoid (pulse) | 1 | |
| 27 | 66-9214 | TUBE - valve to tee | 1 | |
| 28 | 55-6218 | TEE | 1 | |
| 29 | 66-9167 | VALVE - solenoid (normally closed) | 1 | |
| 41-3301 | COIL | 1 | ||
| 60-323 | KIT - repair (Danfoss) | 1 | ||
| 30 | 66-9085 | TUBE - valve to exchanger | 1 | |
| 31 | 66-9900 | VALVE - expansion | 1 | |
| 32 | 66-9165 | TUBE - valve to tee | 1 | |
| 33 | 55-2296 | TEE | 1 | |
| 34 | 66-9166 | TUBE - tee to valve | 1 | |
| 35 | 66-9032 | VALVE - solenoid (dehumidifier option, see 146E5) | 1 | |
| 60-323 | KIT - repair (Danfoss) | 1 | ||
| 41-2399 | COIL - liquid line valve | 1 | ||
| 36 | 66-9084 | TUBE - valve to coil | 1 | |
| 37 | 66-9087 | TUBE - tee to coil | 1 | |
| 38 | 67-1532 | COIL - evaporator (CRR 40) | 1 | |
| 67-1614 | COIL - evaporator (CRR 20) | 1 | ||
| 39 | 55-2299 | REDUCER | 2 | |
| 40 | 66-9285 | REDUCER | 2 | |
| 41 | 66-9075 | TUBE - equalizer | 1 | |
| 42 | 66-9072 | ELBOW | 1 | |
| 43 | 66-9164 | TUBE - tee to valve | 1 | |
| 44 | 66-9210 | TUBE | 1 | |
| 45 | 66-6610 | ADAPTER - service | 1 | |
| 46 | 66-9148 | TUBE - filter to dehydrator | 1 | |
| 55-8951 | SHOULDER (o-ring seal) | 1 | ||
| 55-8950 | NUT - o-ring | 1 | ||
| 47 | 66-9062 | TUBE - valve replacement | 1 |
