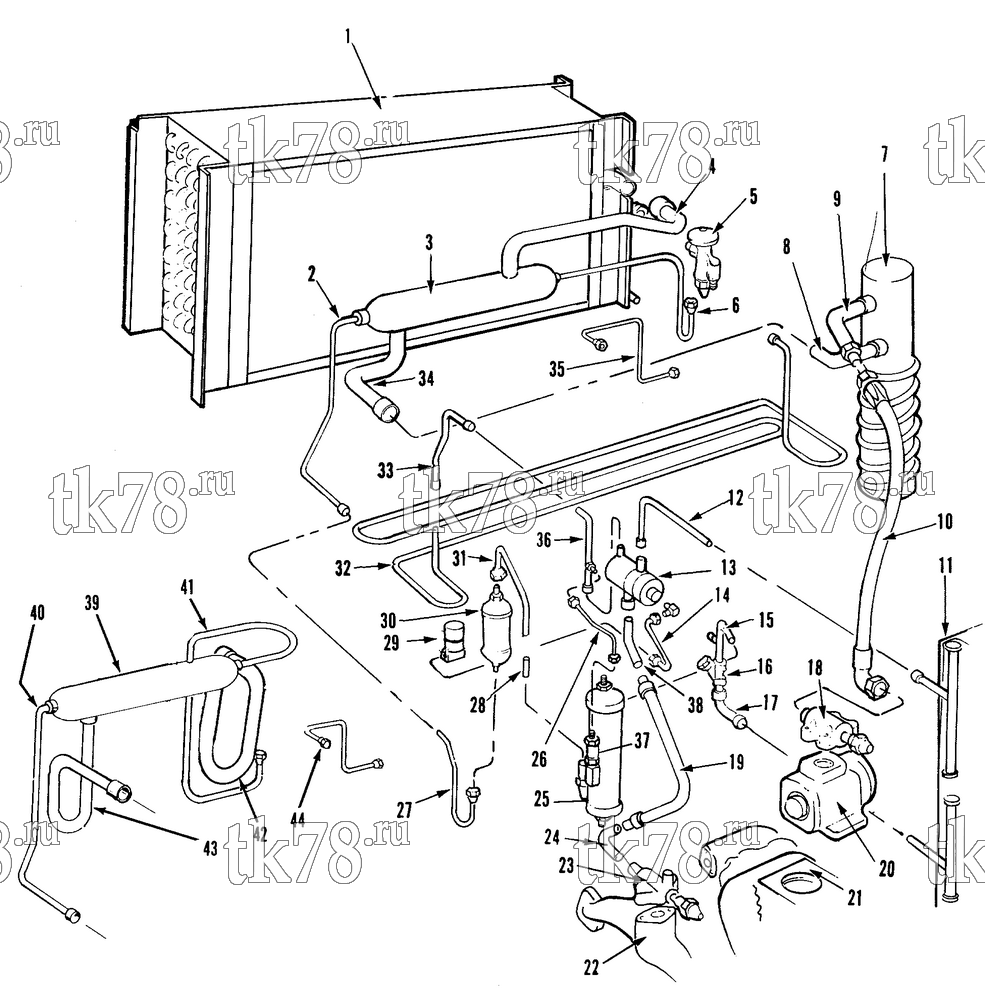

Установкa Thermo King CROWN 500 M19 схема REFRIGERATION COMPONENTS – 20B11
Обновление от: 2/20/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-1449 | COIL - evaporator (see 17F11) | 1 | |
| 2 | 66-1018 | LINE - heat exchanger to bulkhead | 1 | |
| 3 | 67-412 | HEAT EXCHANGER | 1 | |
| 99-978 | CLAMP - heat exchanger | 2 | ||
| 99-983 | BOLTSTRIP - heat exchanger | 2 | ||
| 55-366 | LOCKWASHER | 4 | ||
| 55-4111 | SCREW | 4 | ||
| 55-291 | NUT | 4 | ||
| 4 | 66-1005 | LINE - heat exchanger to evaporator | 1 | |
| 66-874 | FITTING - flare | 1 | ||
| 5 | 66-820 | VALVE - expansion (threaded, see 10B3) | 1 | |
| 66-4437 | VALVE - expansion (w/ solder fitting, see 10B3) | 1 | ||
| 66-633 | ELEMENT - power | 1 | ||
| 66-9379 | SCREEN - inlet | 1 | ||
| 6 | 66-1492 | TUBE | 1 | |
| 7 | 67-423 | TANK - accumulator (see 22G10) | 1 | |
| 8 | 66-1495 | LINE | 1 | |
| 9 | 66-1533 | TUBE | 1 | |
| 66-795 | ADAPTER - suction | 1 | ||
| 10 | 66-4284 | HOSE - suction | 1 | |
|
10-66-4284 | Трубка армированная всасывающая, Nut & Nut 28in | 35 520 ₽ |
|
| 33-544 | O-RING | 1 | ||
| 11 | 67-644 | COIL - condenser (see 22G12) | 1 | |
| 12 | 66-1577 | TUBE | 1 | |
| 13 | 66-3623 | VALVE - 3-way (see 9F13) | 1 | |
| 55-308 | ELBOW | 1 | ||
| 55-214 | SCREW (3/4) | 1 | ||
| 55-157 | SCREW | 1 | ||
| 55-419 | LOCKWASHER | 2 | ||
| 55-411 | FLATWASHER | 2 | ||
| 14 | 66-1499 | TUBE | 1 | |
| 15 | 66-2277 | TUBE | 1 | |
| 66-7392 | VALVE - relief | 1 | ||
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 33-1015 | O-RING | 1 | ||
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 99-3060 | FITTING - saddle (valve) | 1 | ||
| 16 | 66-3644 | VALVE - check (see 9G12) | 1 | |
| 17 | 55-2244 | ELBOW | 1 | |
| 18 | 60-200 | VALVE - suction (see 9G1) | 1 | |
| 19 | 66-1224 | VIBRASORBER | 1 | |
|
10-66-1224 | Вибросорбер нагнетания, SB-I/II | 11 620 ₽ |
|
| 99-1647 | BRACKET | 1 | ||
| 99-661 | U-BOLT | 1 | ||
| 55-664 | NUT | 2 | ||
| 20 | 66-5933 | VALVE - throttling (see 9E14) | 1 | |
| 21 | NSS | COMPRESSOR - X426 C5 (subassembly, see 231A2) | 1 | |
| 22 | 22-301 | MANIFOLD - compressor | 1 | |
| 55-2306 | BOLT | 4 | ||
| 30-55-2306 | Болт 3/8x1 5/8 | 680 ₽ |
|
|
| 55-896 | FLATWASHER | 4 | ||
| 23 | 66-129 | VALVE - service (discharge, see 9G1) | 1 | |
|
10-66-129 | Сервисный вентиль, X426/430 | 22 340 ₽ |
|
| 24 | 66-1332 | TUBE | 1 | |
| 25 | 67-1179 | TANK - receiver (see 90B7) | 1 | |
| 26 | 66-1499 | TUBE | 1 | |
| 27 | 66-1034 | LINE - dehydrator to bulkhead | 1 | |
| 28 | 66-1476 | TUBE | 1 | |
| 29 | 66-2009 | VALVE - pilot solenoid (12V, see 20B14) | 1 | |
|
10-66-2009 | Управляющий клапан, KD/MD/TD/RD-II / SB-I/II/III | 18 500 ₽ |
|
| 55-8786 | NUT - valve | 1 | ||
| 44-3803 | COIL - pilot solenoid | 1 | ||
| 30 | 66-4729 | DEHYDRATOR (see 20C2) | 1 | |
|
10-66-4729 | Дегидратор, SB-I/II/III | 3 890 ₽ |
|
| 31 | 66-1234 | TUBE - tank to dehydrator | 1 | |
| 32 | 67-291 | TUBE - defrost | 1 | |
| 99-2500 | CLAMP - defrost tube | 2 | ||
| 55-2977 | SCREW | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 33 | 66-1490 | TUBE | 1 | |
| 34 | 66-1020 | LINE - bulkhead to heat exchanger | 1 | |
| 35 | 66-1494 | TUBE | 1 | |
| 55-546 | CLAMP | 1 | ||
| 99-2881 | SPACER | 1 | ||
| 55-2955 | SCREW | 1 | ||
| 55-2001 | FLATWASHER | 1 | ||
| 55-2964 | LOCKWASHER | 1 | ||
| 55-2965 | NUT | 1 | ||
| 36 | 66-1593 | TUBE | 1 | |
| 66-874 | FITTING - flare | 1 | ||
| 37 | 66-5501 | VALVE - check | 1 | |
| 38 | 66-1781 | TUBE | 1 | |
| 39 | 67-458 | TANK - heat exchanger | 1 | |
| 67-2491 | HEAT EXCHANGER (first tube out) | 1 | ||
| 40 | 66-2433 | TUBE - heat exchanger to bulkhead | 1 | |
| 41 | 66-2431 | TUBE - heat exchanger to expansion valve | 1 | |
| 42 | 66-2430 | TUBE - heat exchanger to evaporator | 1 | |
| 43 | 66-2432 | TUBE - heat exchanger to bulkhead | 1 | |
| 44 | 66-2434 | TUBE - equalizer | 1 |
