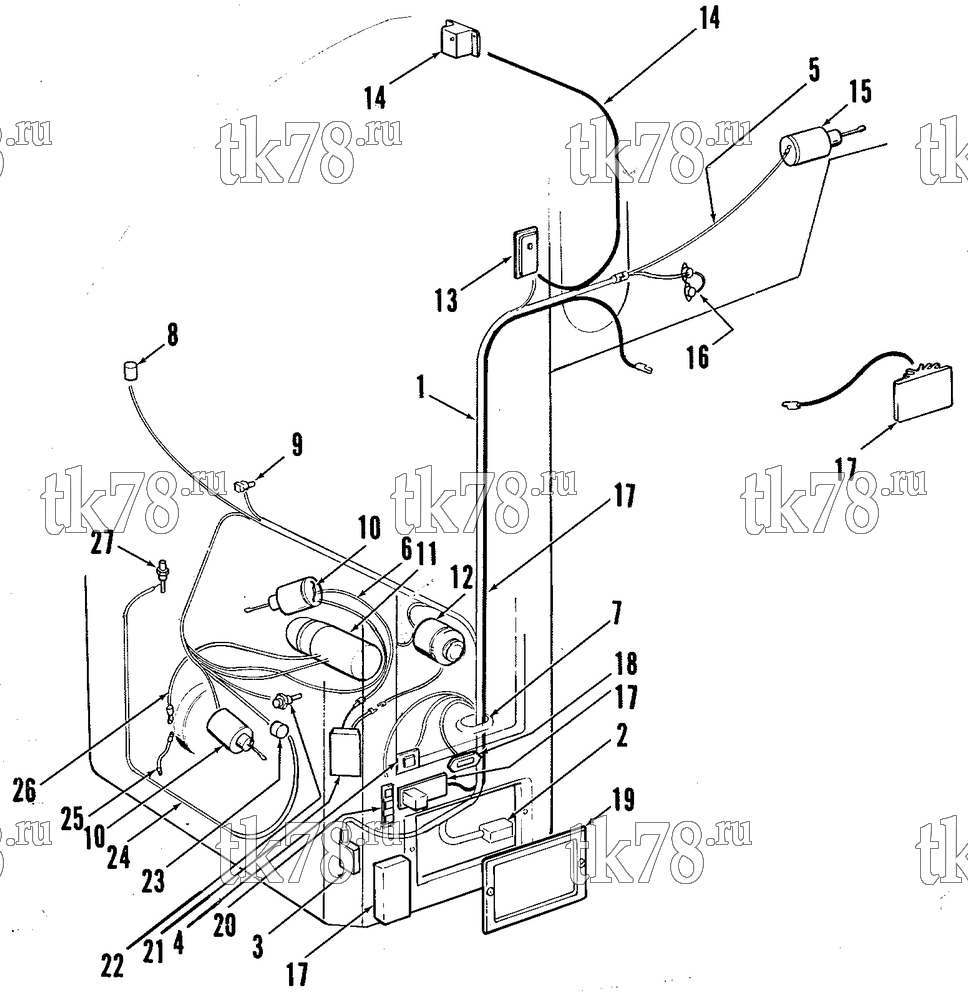

Установкa Thermo King CROWN 500 M19 схема MAIN HARNESS – 15G14
Обновление от: 6/15/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 44-7397 | HARNESS - main (1 piece, w/ TG) | 1 | |
| 2 | 44-2602 | SOCKET | 1 | |
| 44-2825 | COVER - socket | 1 | ||
| 55-1843 | SCREW - cover | 1 | ||
| 3 | 44-3958 | SOCKET - Thermoguard | 1 | |
| 44-6381 | COVER - socket | 1 | ||
| 4 | 99-3608 | BRACKET - test plug | 1 | |
| 55-431 | FLATWASHER | 2 | ||
| 55-1329 | SCREW - bracket | 2 | ||
| 5 | 44-4348 | HARNESS - evaporator section | 1 | |
| 6 | 44-2191 | HARNESS - alternator | 1 | |
| 7 | 33-1661 | GROMMET | 1 | |
| 8 | 66-2009 | VALVE - pilot solenoid (see 10A9) | 1 | |
|
10-66-2009 | Управляющий клапан, KD/MD/TD/RD-II / SB-I/II/III | 18 500 ₽ |
|
| 44-3728 | HARNESS - valve to ground | 1 | ||
| 55-8786 | NUT - valve | 1 | ||
| 9 | 44-2907 | SWITCH - hpco | 1 | |
|
10-44-2907 | Выключатель высокого давления | 4 160 ₽ |
|
| 10 | 44-2823 | SOLENOID (see 7C12) | 2 | |
|
10-44-2823 | Соленоид оборотов двигателя | 5 370 ₽ |
|
| 44-2756 | DIODE | 2 | ||
|
10-44-2756 | Диод соленоида тяги | 1 920 ₽ |
|
| 11 | 845-1285 | STARTER | 1 | |
| 44-6424 | SOLENOID - starter | 1 | ||
|
10-44-6424 | Соленоид стартера, Isuzu C-201 | 5 800 ₽ |
|
| 12 | 44-3325 | ALTERNATOR (see 15E1) | 1 | |
| US-44-3325 | Генератор 35A/12V | 35 130 ₽ |
|
|
|
10-44-3325 | Генератор 35A/12V | 28 440 ₽ |
|
| 44-2548 | HARNESS - ground (alternator) | 1 | ||
| 13 | 66-2020 | SWITCH - air (see 14E9) | 1 | |
|
P-12-01039-08 | Выключатель размораживания, Maxima/Supra/ Vector 1350/1550/18XX/19XX | 16 490 ₽ |
|
| 14 | 44-4045 | ACTUATOR (see 14E8) | 1 | |
| 15 | 44-2823 | SOLENOID - defrost shutter (see 15A9) | 1 | |
|
|
10-44-2823 | Соленоид оборотов двигателя | 5 370 ₽ |
|
| 16 | 44-4059 | SWITCH - defrost termination (double) | 1 | |
| 44-3155 | SWITCH - defrost termination (single terminal) | 1 | ||
|
10-44-3155 | Выключатель оттайки, KD/MD/RD-I / SB-I/II | 4 780 ₽ |
|
| 17 | 44-3314 | SENSOR | 1 | |
| 18 | 44-5703 | HOURMETER | 1 | |
|
10-44-5703 | Счетчик часов | 6 030 ₽ |
|
| 19 | 45-252 | PANEL - switch (see 12D1) | 1 | |
| 20 | 90-182 | LIGHT - indicator | 1 | |
| 21 | 44-2039 | REGULATOR - voltage | 1 | |
| US-44-2039 | Регулятор | 5 890 ₽ |
|
|
| 55-2991 | SCREW - regulator | 3 | ||
| 55-2964 | LOCKWASHER | 3 | ||
| 55-2001 | FLATWASHER | 3 | ||
| 55-2965 | NUT | 3 | ||
| 22 | 44-2922 | GLOW PLUG (12V) | 4 | |
|
10-44-2922 | Свеча накаливания, Isuzu C201 | 1 510 ₽ |
|
| 11-4061 | CONNECTOR - glow plug | 1 | ||
| 23 | 44-4774 | SWITCH - oil pressure | 1 | |
|
10-44-4774 | Выключатель давления масла | 5 530 ₽ |
|
| 24 | 44-5280 | HARNESS - oil switch to water switch | 1 | |
| 25 | 44-1431 | CABLE - ground | 1 | |
| 26 | 44-4340 | CABLE - starter | 1 | |
| 27 | 44-3018 | SWITCH - water temperature | 1 | |
|
10-44-3018 | Датчик температуры двигателя, Yanmar / Isuzu | 5 830 ₽ |
|
| PP-44-3018 | Датчик температуры двигателя, Yanmar / Isuzu | 2 200 ₽ |
|
